Name: Intel Xeon Bronze 3204 (1.9GHz, 8.25MB), 8GB (1 x 8GB) DDR4, 4LFF-NHP HDD, Smart Array S100i SR Gen10, 1x 500W PS
Brand: HPE
SKU: P11048-031

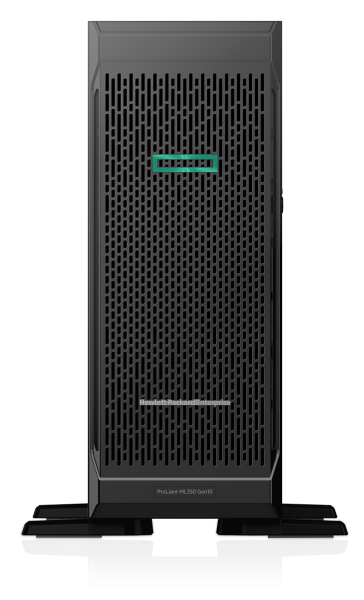

HPE ProLiant ML350 Gen10 server 0 GB Tower (4U) Intel Xeon Bronze 3204 1.9 GHz 8 GB DDR4-SDRAM 500 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
HPE

Device type
Server

Design

Chassis type
Tower (4U)

Product colour
Black

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Graphics

On-board graphics card model
Not available

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory Installed
8 GB

Memory layout (slots x size)
1 x 8 GB

Memory Slot Support
768 GB

Memory slots
24x DIMM

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Intel® 369i

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Serial ports quantity
1

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5

VGA (D-Sub) ports quantity
1

Power

Power supply
500 W

Redundant power supply (RPS) support
No

Processor

Embedded options available
No

Execute Disable Bit
Yes

Maximum internal memory supported by processor
1.02 TB

Maximum number of PCI Express lanes
48

Memory clock speeds supported by processor
2133 MHz

Memory types supported by processor
DDR4-SDRAM

Motherboard chipset
Intel C622

Number of Cores
6

Number of processors installed
1

Processor
3204

Processor boost frequency
1.9 GHz

Processor cache
8.25 MB

Processor cache type
L3

Processor codename
Cascade Lake

Processor family
Intel Xeon Bronze

Processor frequency
1.9 GHz

Processor generation
2nd Generation Intel® Xeon® Scalable

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
76.0 x 56.5 mm

Processor socket
LGA 3647 (Socket P)

Processor threads
6

Scalability
2S

Supported instruction sets
AVX-512

Tcase
77 °C

Thermal Design Power (TDP)
85 W

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
No

Intel® Turbo Boost Technology
No

Processor ARK ID
193381

Software

Operating system installed
No

Storage

HDD interface
Serial ATA

HDD size
3.5"

Hot-Plug support
No

Maximum storage capacity
48 TB

Number of HDDs supported
4

Optical drive type
No

RAID levels
0, 1, 5, 10

RAID support
Yes

Technical details

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth
648 mm

Height
462.5 mm

Weight
21 kg

Width
174 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory Installed
8 GB

Memory Slot Support
768 GB

Memory slots
24x DIMM

Processor

Processor
3204

Processor generation
2nd Generation Intel® Xeon® Scalable
