• Bullet points

• Point
• Energy-efficient TruDDR4 memory

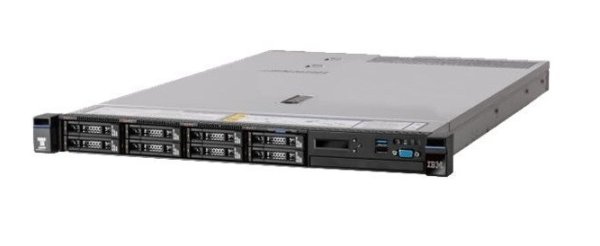

  Expandable 1U 2-socket rack server
  Flexible storage-based configurations
  High-performance Intel® Xeon® processors
  Industry-leading reliability

• Design

• Chassis type
• Rack (1U)

• Redundant fans support
• Yes

• Expansion slots

• PCI Express slots version
• 3.0

• Filters

• Machinecategory
• Server

• Graphics

• Maximum graphics card memory
• 16 MB

• On-board graphics card
• Yes

• On-board graphics card model
• Matrox G200eR2

• Memory

• ECC
• Yes

• Internal memory type
• DDR4-SDRAM

• Memory clock speed
• 2400 MHz

• Memory Installed
• 16 GB

• Memory layout (slots x size)
• 1 x 16 GB

• Memory Slot Support
• 192 GB

• Memory slots
• 12

• Network

• Cabling technology
• 10/100/1000Base-T(X)

• Ethernet interface type
• Gigabit Ethernet

• Ethernet LAN
• Yes

• Performance

• Trusted Platform Module (TPM)
• Yes

• Ports & interfaces

• Ethernet LAN (RJ-45) ports
• 4

• USB 2.0 ports quantity
• 2

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 3

• VGA (D-Sub) ports quantity
• 1

• Power

• Number of main power supplies
• 1

• Number of redundant power supplies installed
• 1

• Power supply
• 750 W

• Redundant power supply (RPS) support
• Yes

• Processor

• Bus type
• QPI

• Conflict-Free processor
• Yes

• ECC supported by processor
• Yes

• Embedded options available
• No

• Execute Disable Bit
• Yes

• Idle States
• Yes

• Maximum internal memory supported by processor
• 1.54 TB

• Maximum number of PCI Express lanes
• 40

• Memory bandwidth supported by processor (max)
• 76.8 GB/s

• Memory channels supported by processor
• Quad

• Memory clock speeds supported by processor
• 1600,1866,2133,2400 MHz

• Memory types supported by processor
• DDR4-SDRAM

• Motherboard chipset
• Intel® C612

• Number of Cores
• 14

• Number of processors installed
• 1

• Number of QPI links
• 2

• Physical Address Extension (PAE)
• 46 bit
  Yes

• Processor
• E5-2690V4

• Processor boost frequency
• 3.5 GHz

• Processor cache
• 35 MB

• Processor cache type
• Smart Cache

• Processor code
• SR2N2

• Processor codename
• Broadwell

• Processor family
• Intel® Xeon® E5 v4

• Processor frequency
• 2.6 GHz

• Processor lithography
• 14 nm

• Processor manufacturer
• Intel

• Processor operating modes
• 64-bit

• Processor package size
• 45 x 52.5 mm

• Processor series
• Intel Xeon E5-2600 v4

• Processor socket
• LGA 2011-v3

• Processor threads
• 28

• Scalability
• 2S

• Stepping
• M0

• Supported instruction sets
• AVX 2.0

• System bus rate
• 9.6 GT/s

• Tcase
• 89 °C

• Thermal Design Power (TDP)
• 135 W

• Thermal Monitoring Technologies
• Yes

• Processor special features

• CPU configuration (max)
• 2

• Enhanced Intel SpeedStep Technology
• Yes

• Intel 64
• Yes

• Intel Demand Based Switching
• Yes

• Intel Enhanced Halt State
• Yes

• Intel Flex Memory Access
• No

• Intel Identity Protection Technology version
• 0.00

• Intel Secure Key Technology version
• 1.00

• Intel Trusted Execution Technology
• Yes

• Intel TSX-NI
• Yes

• Intel TSX-NI version
• 1.00

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Hyper Threading Technology (Intel® HT Technology)
• Yes

• Intel® Identity Protection Technology (Intel® IPT)
• No

• Intel® OS Guard
• Yes

• Intel® Secure Key
• Yes

• Intel® Turbo Boost Technology
• 2.0

• Processor ARK ID
• 91770

• Software

• Compatible operating systems
• Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSpher

• Storage

• Hot-swap
• Yes

• Number of HDDs supported
• 8

• RAID support
• Yes

• SSD interface
• Serial Attached SCSI (SAS)

• Supported HDD sizes
• 2.5"

• Weight & dimensions

• Depth
• 734 mm

• Height
• 43 mm

• Weight
• 13.8 kg

• Width
• 429 mm
