LevelOne AC1200 Dual Band Outdoor PoE Wireless Access Point, Controller Managed

Roll over image to zoom inClick to Open expanded view

LevelOne AC1200 Dual Band Outdoor PoE Wireless Access Point, Controller Managed

Name: LevelOne AC1200 Dual Band Outdoor PoE Wireless Access Point, Controller Managed
Brand: LevelOne
SKU: WAB-8011

SKU: WAB-8011

Log In to View Pricing

ETA 7 days

LevelOne AC1200 Dual Band Outdoor PoE Wireless Access Point, Controller Managed, 2.4 GHz, 5 GHz, 1200 Mbit/s, 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100,1000 Mbit/s

ETA 7 days

hypertec

Datasheets (Download)

EU Declaration of Conformity (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
WAB-8011

EAN
4015867200384

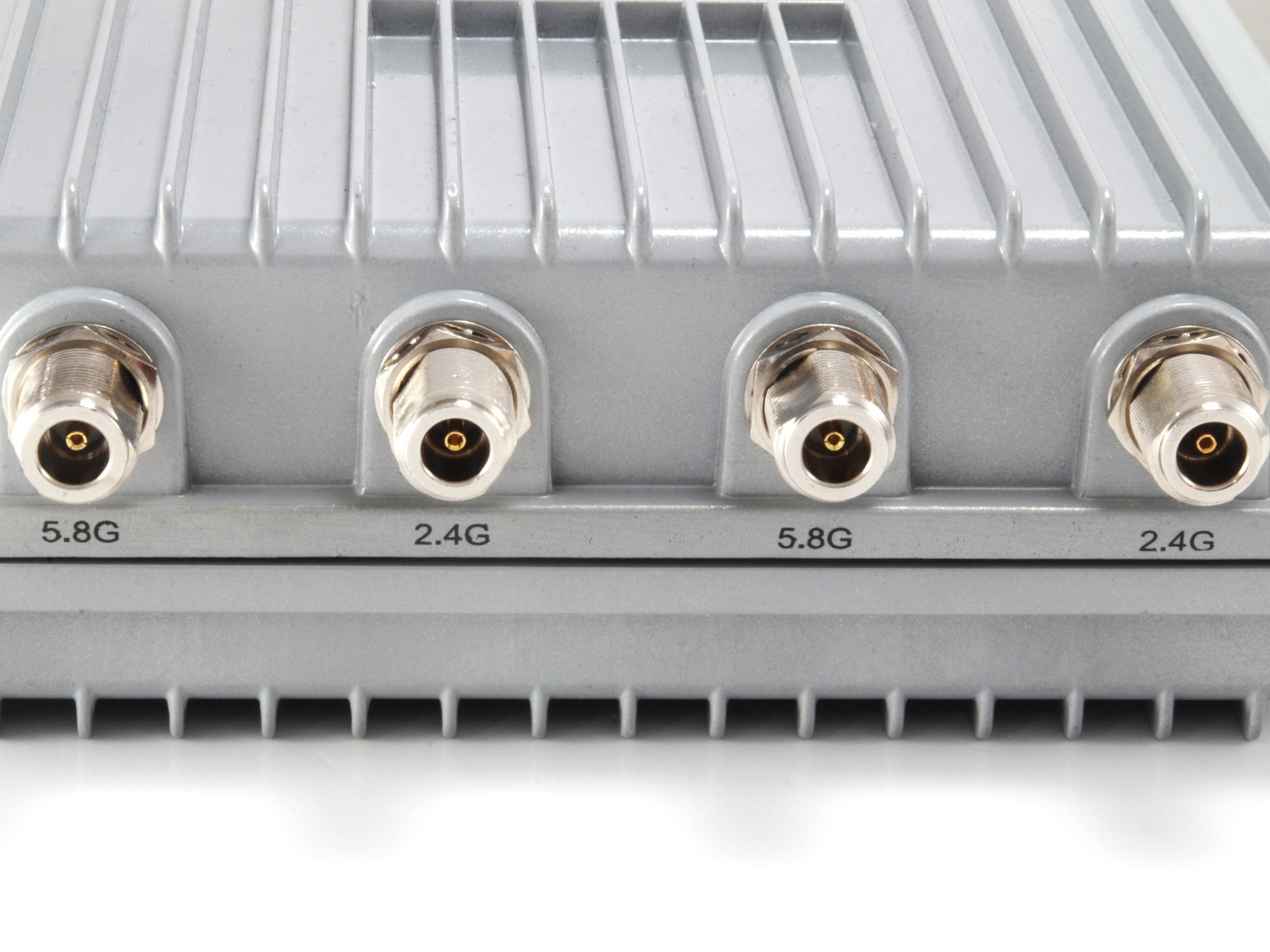

Antenna

Antenna connector type
N-type

Number of connectors
4

Certificates

Certification
CE, FCC

Design

Internal
No

International Protection (IP) code
IP65

Product colour
Grey

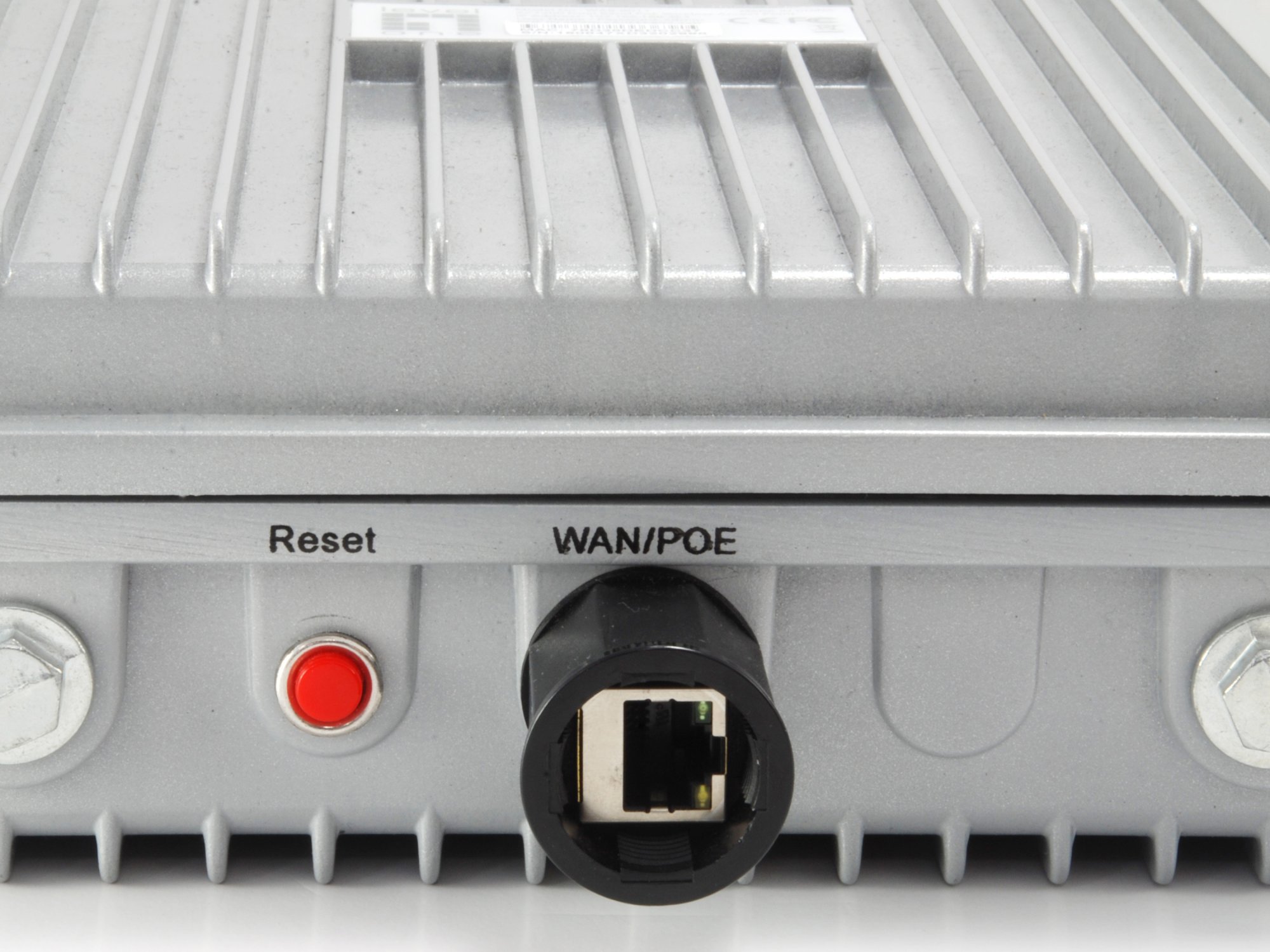

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

Channels quantity
165 channels

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.4 - 2.483, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.82 GHz

Maximum data transfer rate
1200 Mbit/s

Modulation
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM

Number of users
100 user(s)

Operating modes
Access Point (AP),Gateway,Repeater,WISP

Quality of Service (QoS) support
Yes

Wi-Fi data rate (max)
433 Mbit/s

Wi-Fi Multimedia (WMM)/(WME)
Yes

Logistics data

Country of origin
China

Harmonized System (HS) code
85176990

Master (outer) case gross weight
23.5 kg

Master (outer) case height
305 mm

Master (outer) case length
650 mm

Master (outer) case width
475 mm

Products per master (outer) case
5 pc(s)

Management features

Firmware upgradeable
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-40 - 50 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Mounting kit
Yes

Quick start guide
Yes

Packaging data

CD manual
Yes

CD quick installation guide
Yes

Package depth
455 mm

Package height
125 mm

Package type
Box

Package weight
4.4 kg

Package width
285 mm

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

USB 2.0 ports quantity
0

WAN connection
Ethernet (RJ-45)

Power

Power consumption (typical)
30 W

Power over Ethernet (PoE)
Yes

Security

Number of SSID supported
4

Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Service Set Identifier (SSID) features
SSID broadcast on/off

Weight & dimensions

Depth
380 mm

Height
85 mm

Weight
4 kg

Width
230 mm

Description

LevelOne AC1200 Dual Band Outdoor PoE Wireless Access Point, Controller Managed. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Grey

2.4 GHz
5 GHz
Maximum data transfer rate: 1200 Mbit/s
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Power over Ethernet (PoE)
