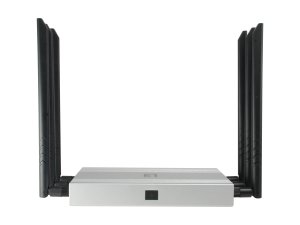

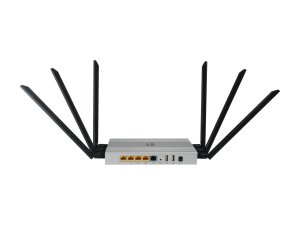

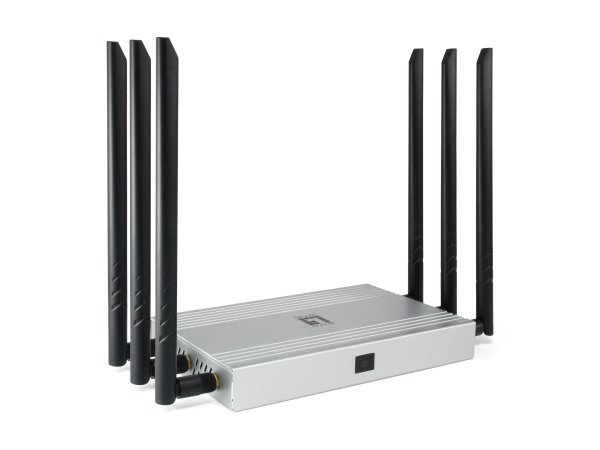

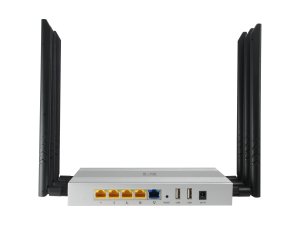

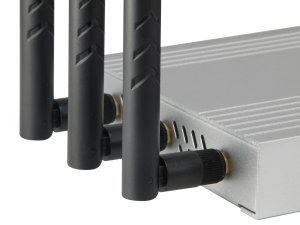

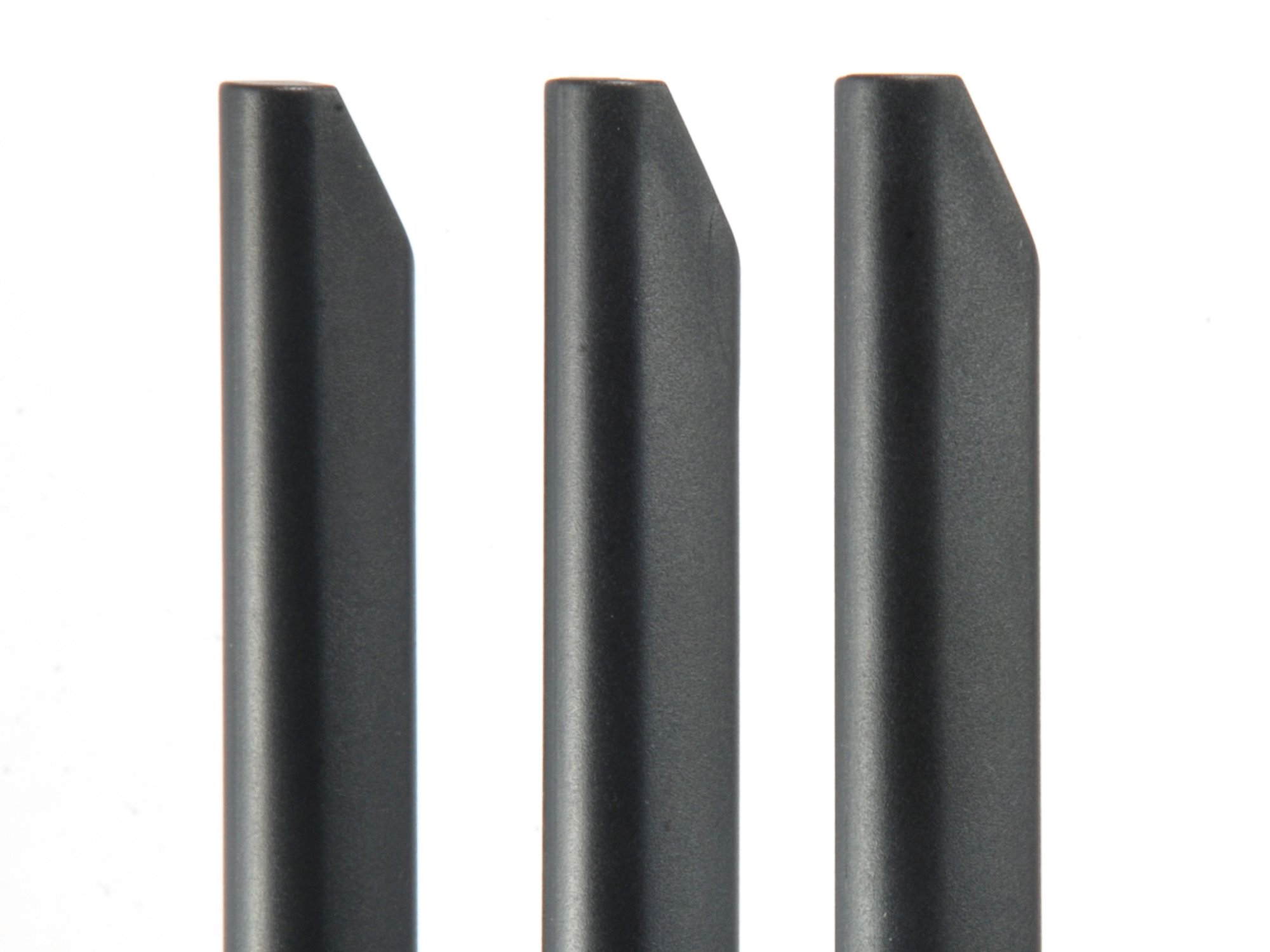

LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed

Roll over image to zoom inClick to Open expanded view

LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed

Name: LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed
Brand: LevelOne
SKU: WAP-8021

SKU: WAP-8021

ETA 7 days

LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed, 2.4 GHz, 5 GHz, 1200 Mbit/s, 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100,1000 Mbit/s

ETA 7 days

hypertec

Product manual (Download)

EU Declaration of Conformity (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
WAP-8021

EAN
4015867200605

Antenna

Antenna gain level (max)
6 dBi

Antennas quantity
6

Bullet points

Certificates

Certification
CE

Design

Internal
No

Placement
Table

Product colour
Silver

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

Channels quantity
165 channels

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Frequency band
2.4 - 2.4835, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.825 GHz

Maximum data transfer rate
1200 Mbit/s

Maximum data transfer rate (5 GHz)
867 Mbit/s

Modulation
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Number of users
100 user(s)

Operating modes
Access Point (AP),Gateway,Repeater,WISP

Quality of Service (QoS) support
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Logistics data

Country of origin
China

Harmonized System (HS) code
85176990

Master (outer) case gross weight
14 kg

Master (outer) case height
245 mm

Master (outer) case length
685 mm

Master (outer) case width
300 mm

Products per master (outer) case
10 pc(s)

Management features

Firmware upgradeable
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Yes

Cables included
LAN (RJ-45)

Quick start guide
Yes

Packaging data

CD manual
Yes

Package depth
285 mm

Package height
65 mm

Package type
Box

Package weight
1.32 kg

Package width
220 mm

Ports & interfaces

Ethernet LAN (RJ-45) ports
5

USB 2.0 ports quantity
2

WAN connection
Ethernet (RJ-45)

Power

AC input voltage
12 V

Input current
1.5 A

Power consumption (typical)
17 W

Security

Number of SSID supported
4

Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Service Set Identifier (SSID) features
SSID broadcast on/off

Weight & dimensions

Depth
198 mm

Height
28 mm

Weight
660 g

Width
128 mm

Description

LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver

2.4 GHz
5 GHz 867 Mbit/s
Maximum data transfer rate: 1200 Mbit/s
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity: 6
Share your wireless network up to 1200Mbps
Compatible with IEEE 802.11a/b/g/n/ac wireless standards
Dual band technology reduces interference for reliable connections
Provides up to 8 SSIDs to separate network traffic and enhance security
Multi-operation modes to suit different wireless applications
