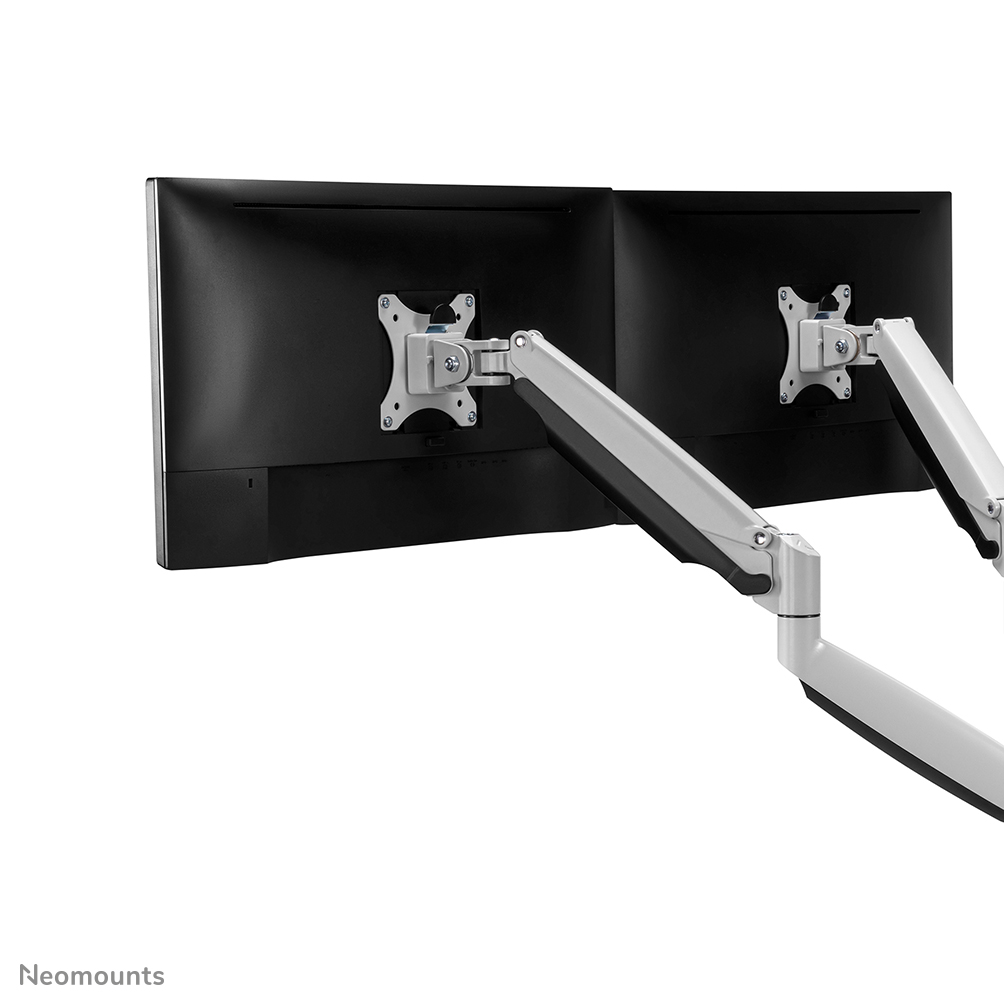

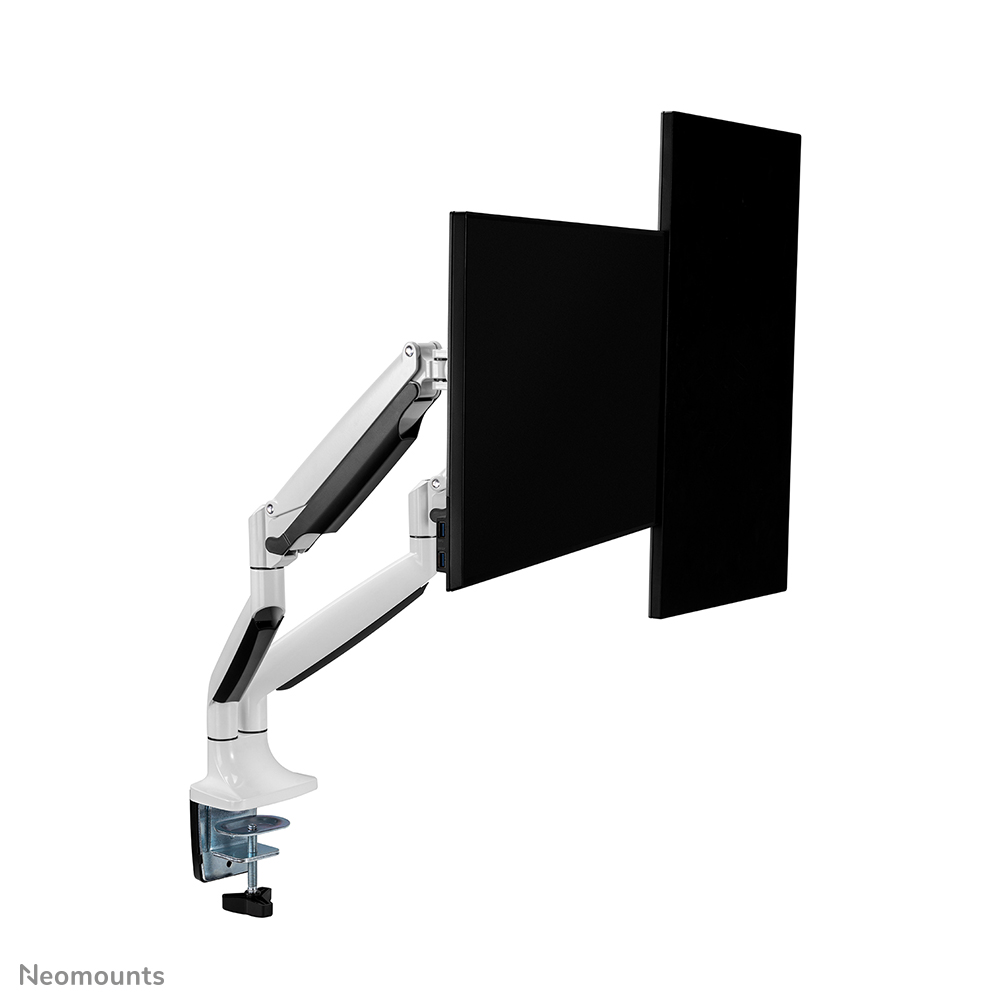

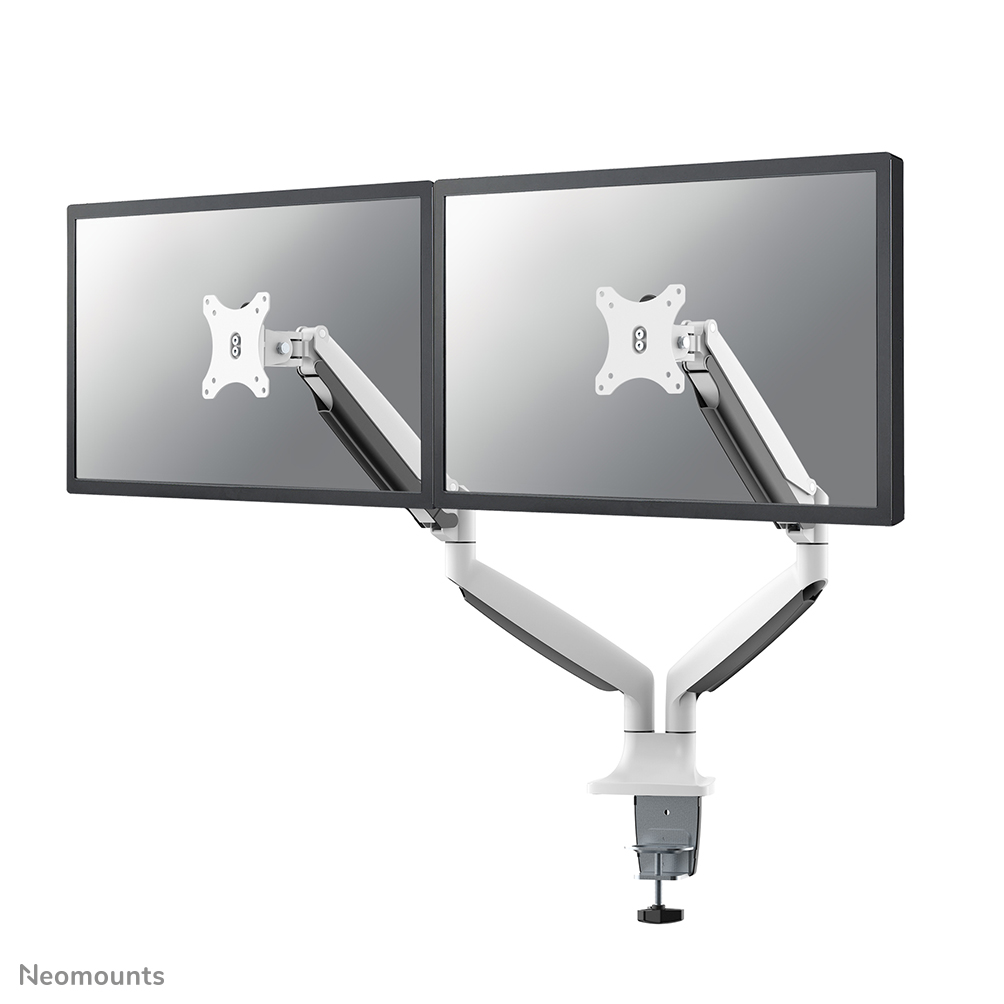

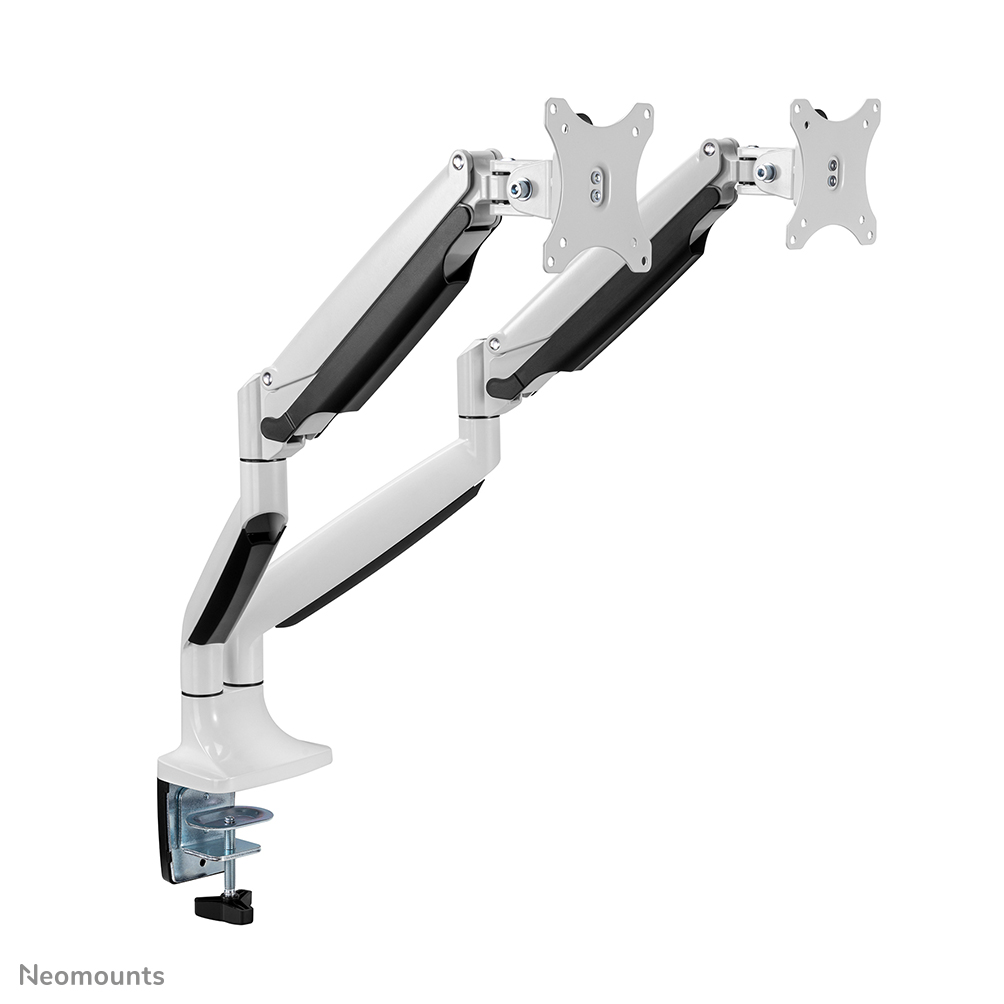

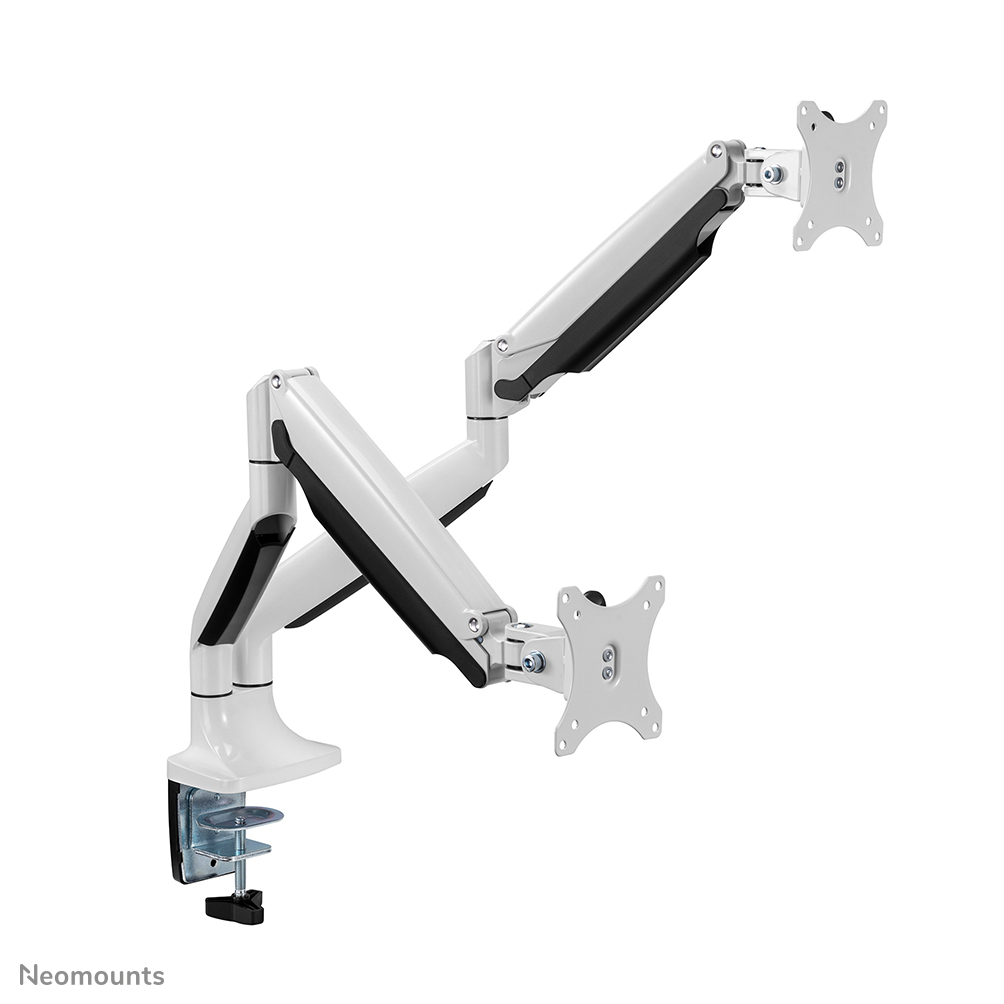

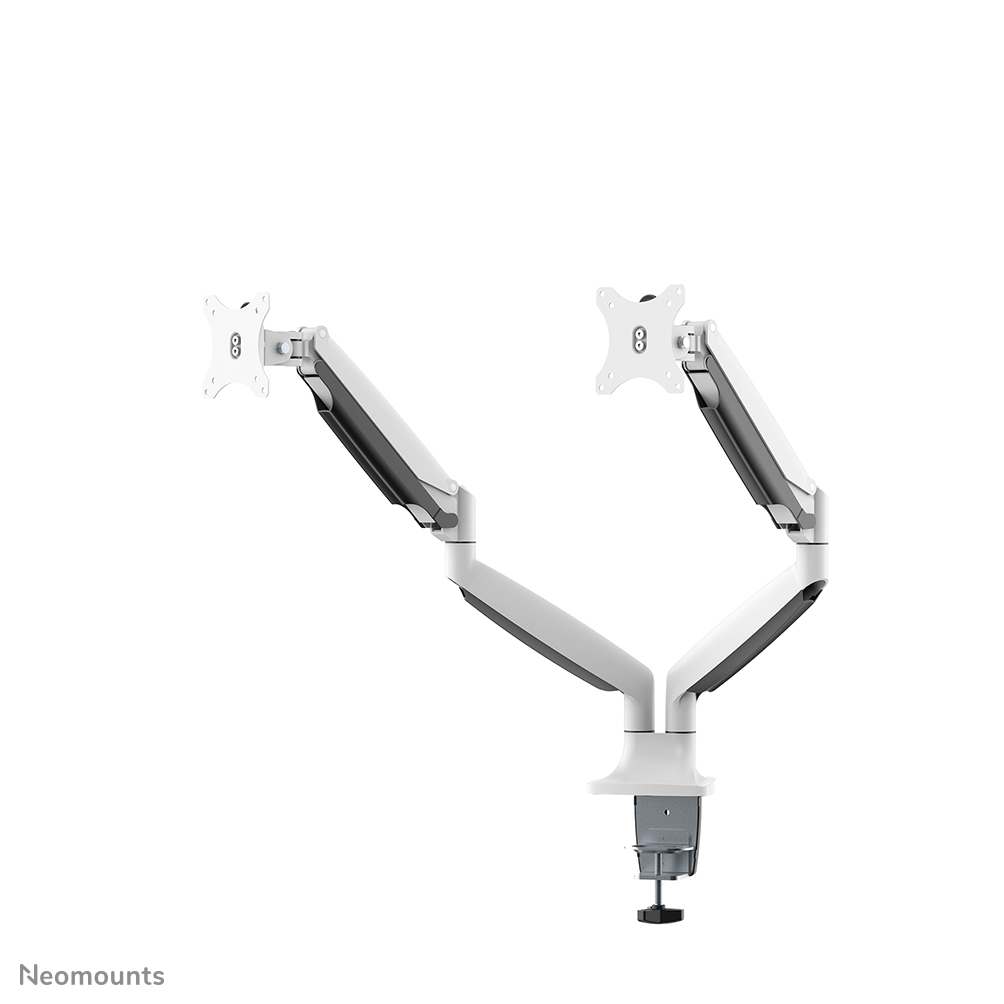

Neomounts NM-D750DWHITE Monitor arm 10-32" - gas spring

Roll over image to zoom inClick to Open expanded view

Neomounts NM-D750DWHITE Monitor arm 10-32" - gas spring

Name: Neomounts NM-D750DWHITE Monitor arm 10-32" - gas spring
Brand: Neomounts
SKU: NM-D750DWHITE

SKU: NM-D750DWHITE

Currently out of Stock

Neomounts NM-D750DWHITE Monitor arm 10-32" - gas spring, Clamp/Grommet, 25.4 cm (10"), 81.3 cm (32"), 100 x 100 mm, Height adjustment, White

Currently out of Stock

hypertec

Safety information (Download)

NM-D750DWHITE_Greensheet_EN (Download)

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Neomounts

Warranty
5 Years

SKU
NM-D750DWHITE

EAN
8717371445850

Design

Housing material
Steel

Product colour
White

Ergonomics

Angle of rotation
360°

Depth adjustment range
80 - 605 mm

Height adjustment
Yes

Height adjustment range
170 - 505 mm

Height adjustment type
Gas spring

Pivot angle
-180 - 180°

Rotating
Yes

Swivel angle
180°

Swivel angle range
-90 - 90°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-90 - 90°

Logistics data

Country of origin
China

Harmonized System (HS) code
7326909890

Master (outer) case gross weight
16.5 kg

Master (outer) case height
250 mm

Master (outer) case length
480 mm

Master (outer) case net weight
12.2 kg

Master (outer) case width
590 mm

Products per master (outer) case
2 pc(s)

Products per pallet (EU)
36 pc(s)

Mounting

Desk thickness (max)
8.5 cm

Desk thickness (min)
1 cm

Distance to the wall (max)
65.1 cm

Distance to the wall (min)
12.6 cm

Maximum screen size
81.3 cm (32")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity (per display)
9 kg

Minimum screen size
25.4 cm (10")

Minimum VESA mount
75 x 75 mm

Mounting
Clamp/Grommet

Mounting type
Desk

Number of displays supported
2

Panel mounting interface
75 x 75 mm

Other features

Minimum weight
1 kg

Packaging data

Package depth
116 mm

Package height
570 mm

Package weight
6.1 kg

Package width
465 mm

Weight & dimensions

Depth
615 mm

Height
505 mm

Weight
6.1 kg

Description

Neomounts NM-D750DWHITE Monitor arm 10-32" - gas spring. Mounting: Clamp/Grommet, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product colour: White

Minimum screen size: 25.4 cm (10") Maximum screen size: 81.3 cm (32")
Number of displays supported: 2
Clamp/Grommet Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Gas spring Height adjustment Tilt adjustment
Steel White
