Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation

Roll over image to zoom inClick to Open expanded view

Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation

Name: Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation
Brand: Neomounts
SKU: WL30S-850BL18

SKU: WL30S-850BL18

Log In to View Pricing

Currently out of Stock

Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation, 109.2 cm (43"), 2.18 m (86"), 100 x 100 mm, 800 x 400 mm, Steel, Black

Currently out of Stock

hypertec

Safety information (Download)

Product manual (Download)

WL30S-850BL18_Greensheet_EN (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Neomounts

Warranty
5 Years

SKU
WL30S-850BL18

EAN
8717371448882

Design

Housing material
Steel

Product colour
Black

Ergonomics

Distance to the wall (max)
3.3 cm

Height adjustment
Yes

Height adjustment range
0 - 20 mm

Type
Fixed

Logistics data

Harmonized System (HS) code
7326909890

Master (outer) case gross weight
24.7 kg

Master (outer) case height
343 mm

Master (outer) case length
240 mm

Master (outer) case net weight
18 kg

Master (outer) case width
924 mm

Products per master (outer) case
6 pc(s)

Products per pallet (EU)
72 pc(s)

Mounting

Maximum screen size
2.18 m (86")

Maximum VESA mount
800 x 400 mm

Maximum weight capacity
60 kg

Maximum weight capacity (per display)
60 kg

Minimum screen size
109.2 cm (43")

Minimum VESA mount
100 x 100 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
800 x 400 mm

Packaging data

Package depth
158 mm

Package height
74 mm

Package weight
4 kg

Package width
904 mm

Technical details

Country of origin
China

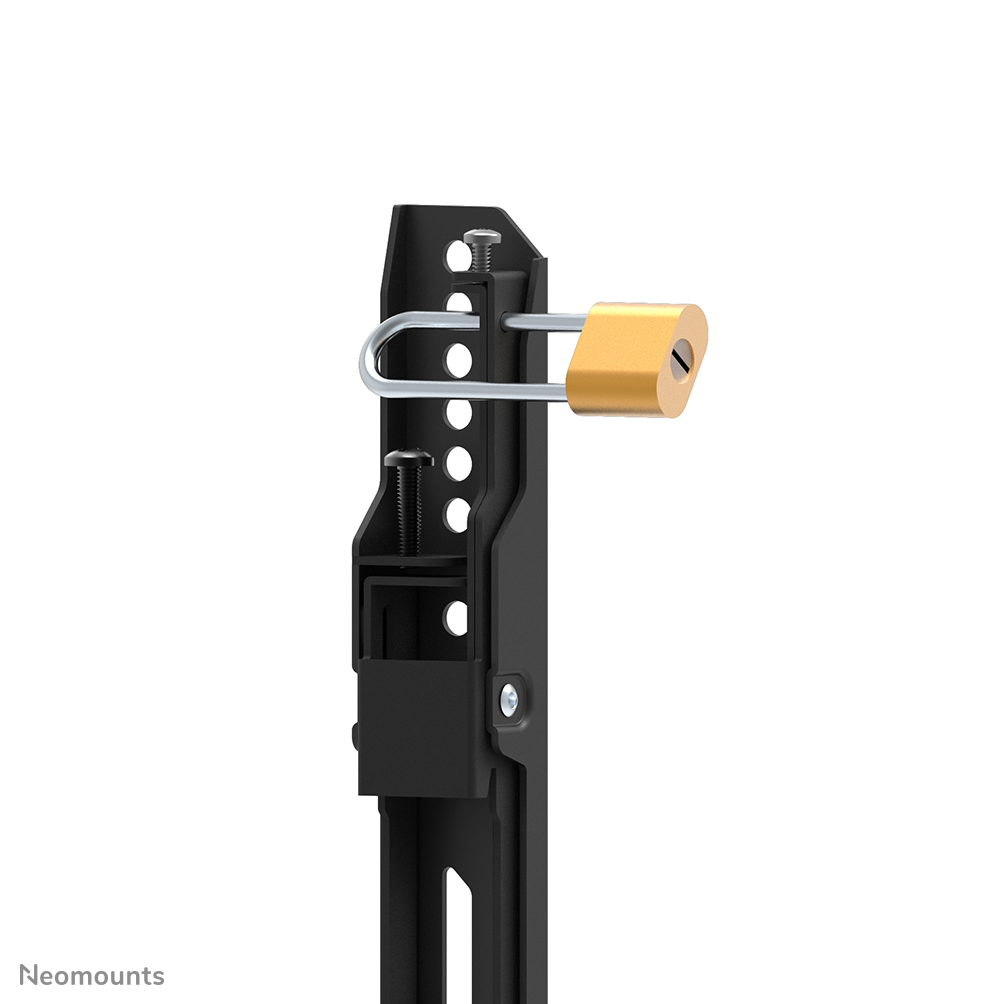

Lockable
Security screw included

Package net weight
4 kg

Weight & dimensions

Depth
33 mm

Height
425 mm

Weight
2.7 kg

Width
884 mm

Description

Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation. Maximum weight capacity: 60 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 400 mm. Height adjustment range: 0 - 20 mm, Distance to the wall (max): 3.3 cm. Product colour: Black

Maximum weight capacity: 60 kg
Minimum screen size: 109.2 cm (43") Maximum screen size: 2.18 m (86") Wall
Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 800 x 400 mm
Number of displays supported: 1
Height adjustment
Steel Black
