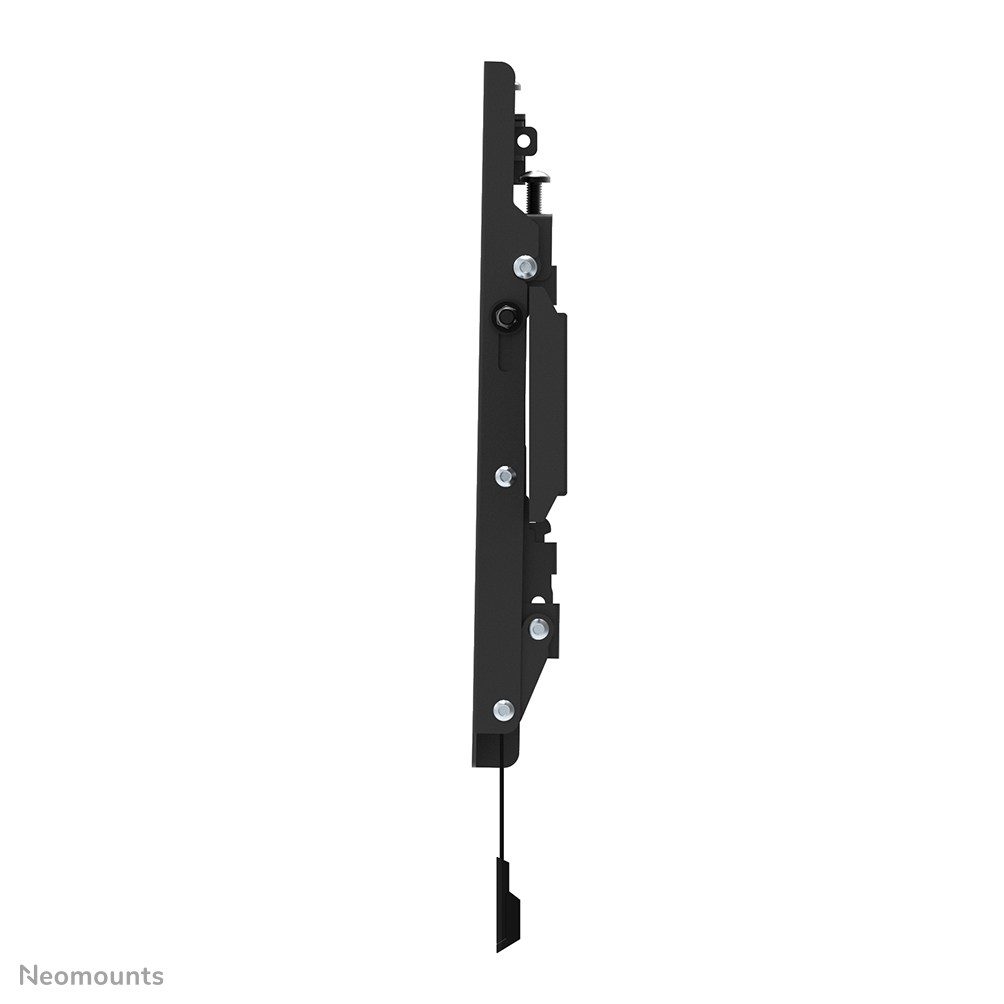

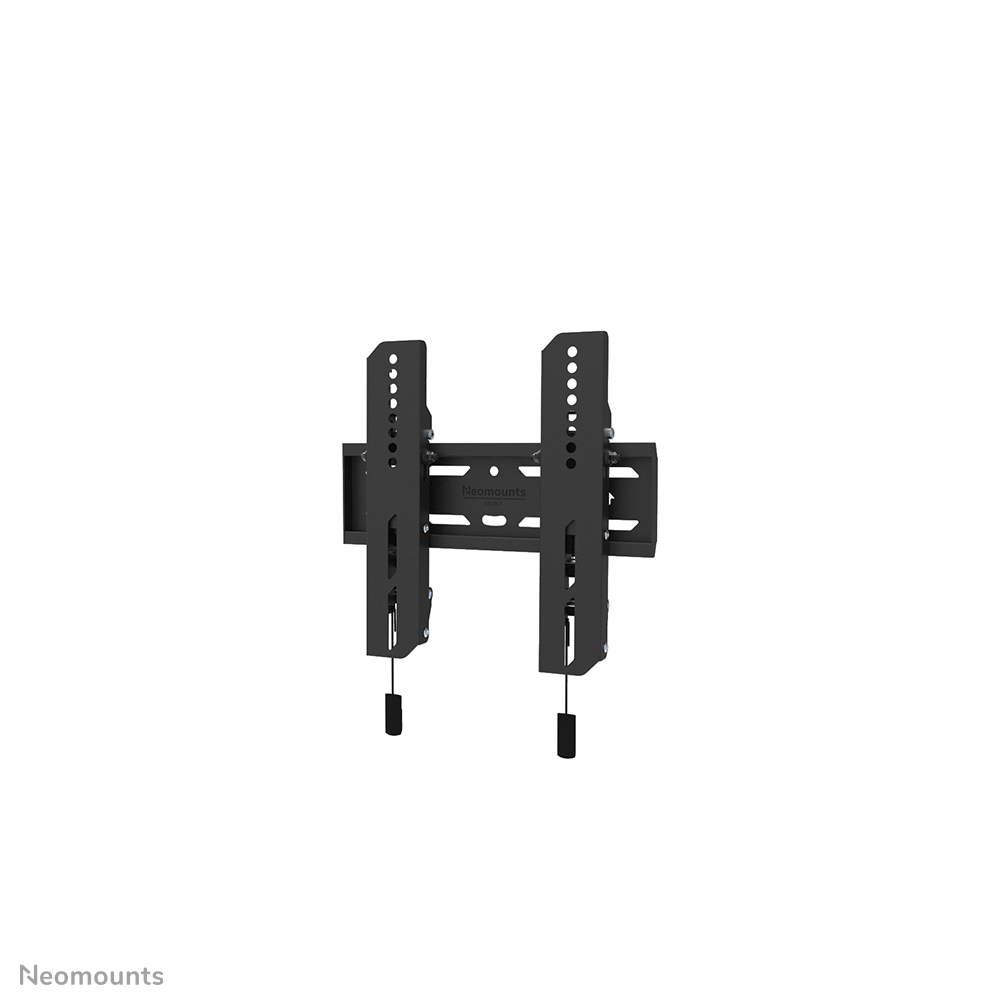

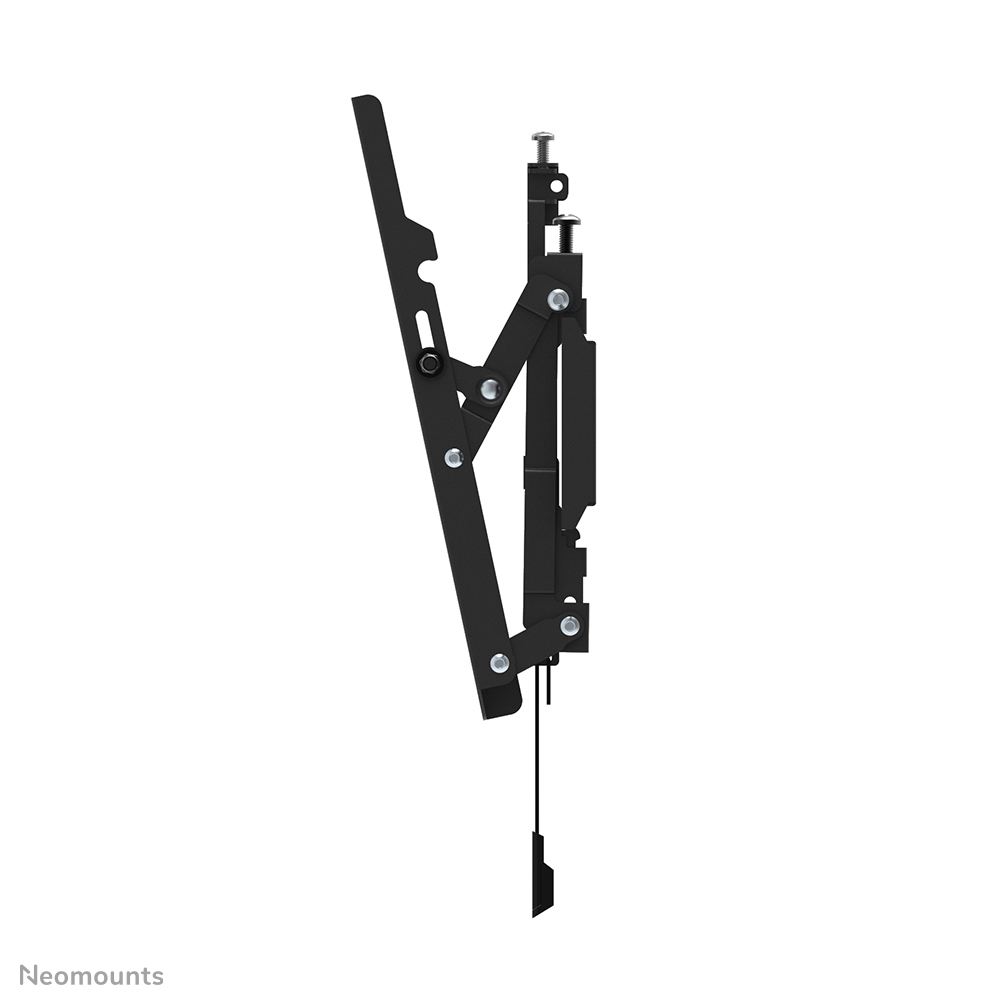

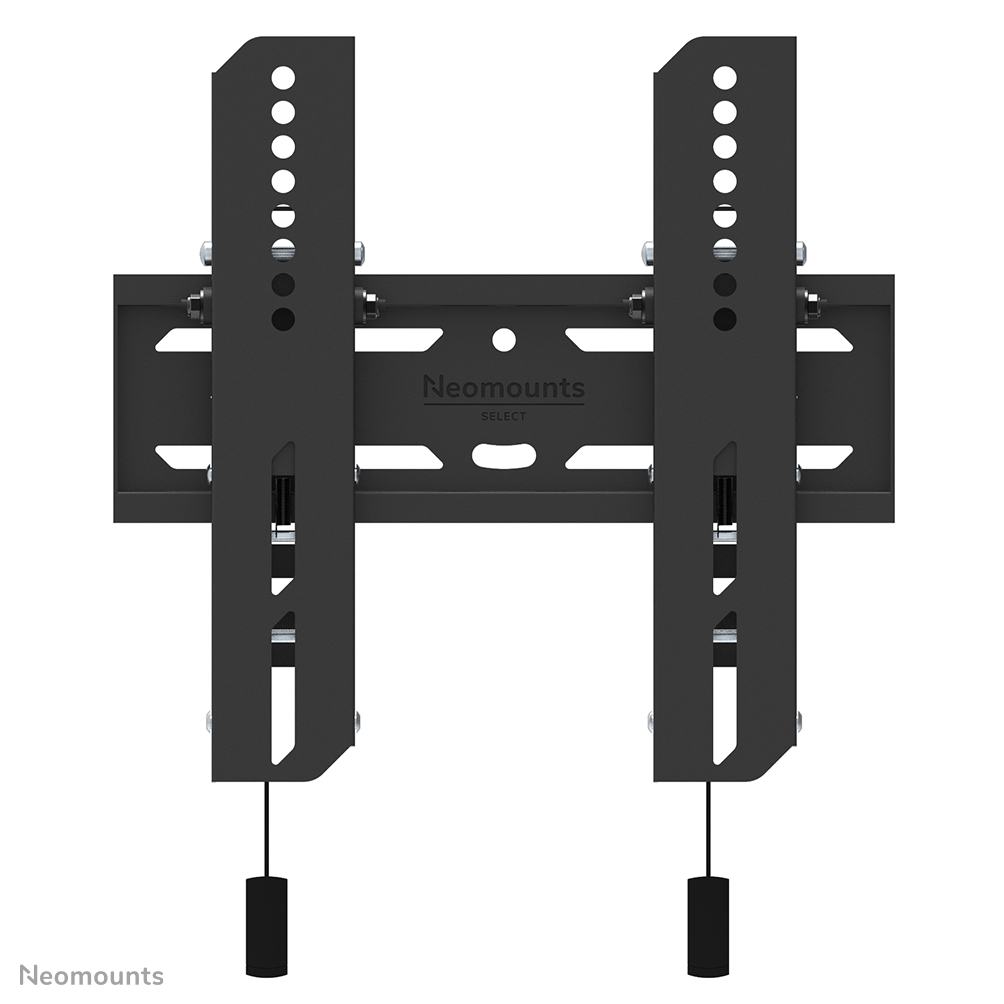

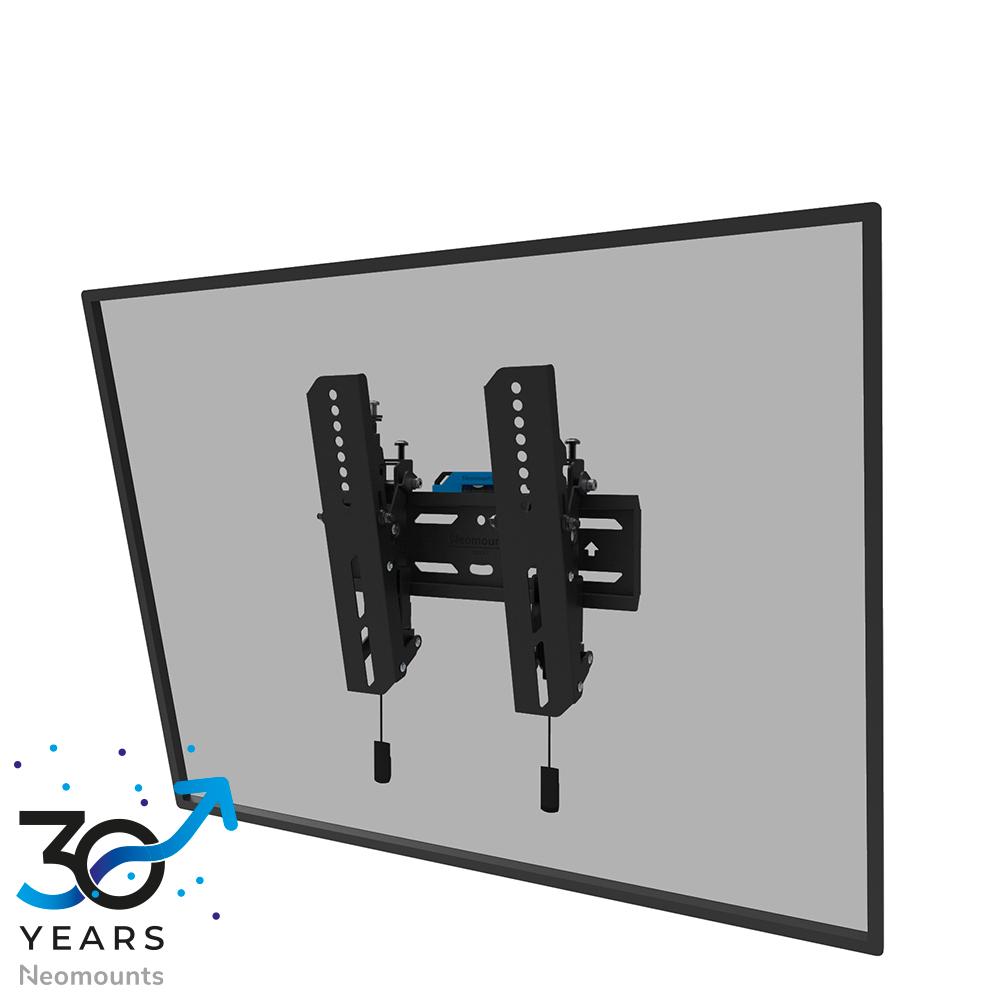

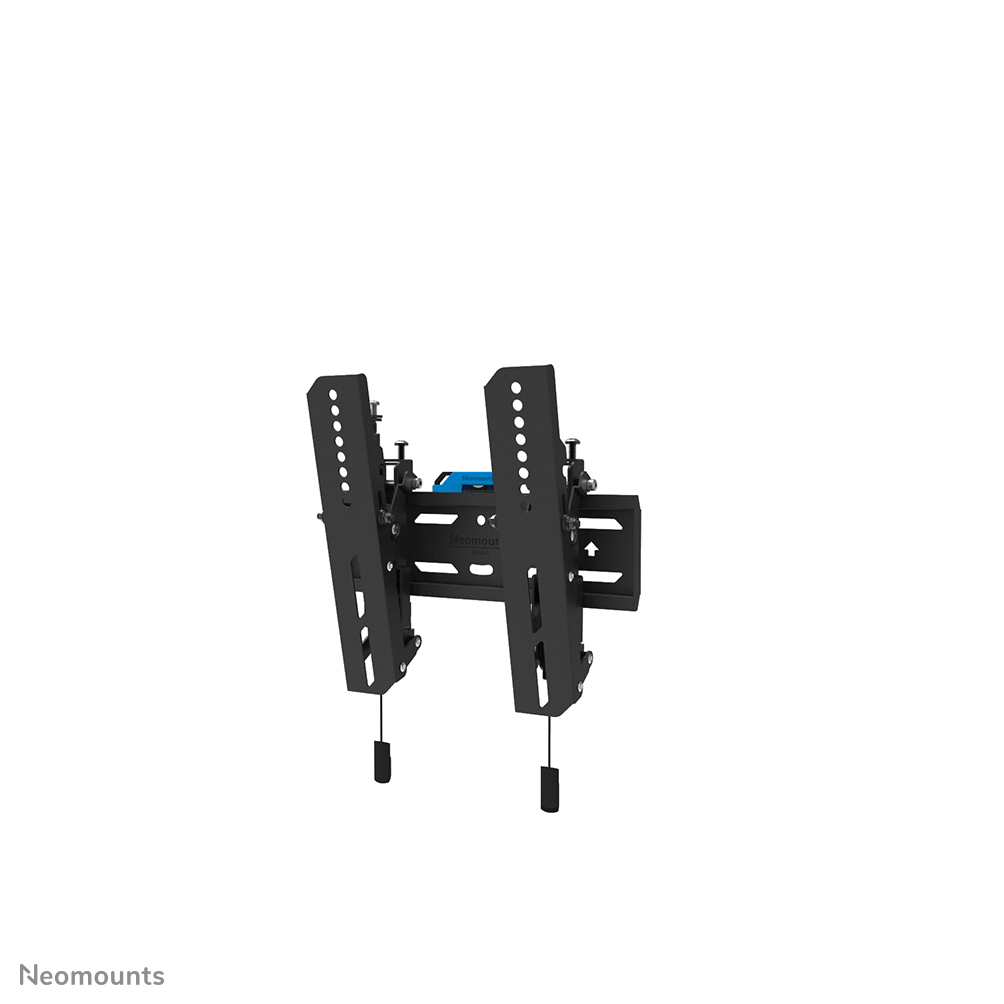

Neomounts WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation

Roll over image to zoom inClick to Open expanded view

Neomounts WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation

Name: Neomounts WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation
Brand: Neomounts
SKU: WL35S-850BL12

SKU: WL35S-850BL12

Log In to View Pricing

Currently out of Stock

Neomounts WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation, 165.1 cm (65"), 75 x 75 mm, 200 x 200 mm, 0 - 12°, Steel, Black

Currently out of Stock

hypertec

Safety information (Download)

Product manual (Download)

WL35S-850BL12_Greensheet_EN (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Neomounts

Warranty
5 Years

SKU
WL35S-850BL12

EAN
8717371448783

Design

Housing material
Steel

Product colour
Black

Ergonomics

Distance to the wall (max)
3.5 cm

Height adjustment
Yes

Height adjustment range
0 - 20 mm

Tilt adjustment
Yes

Tilt angle range
0 - 12°

Logistics data

Harmonized System (HS) code
7326909890

Master (outer) case gross weight
15 kg

Master (outer) case height
343 mm

Master (outer) case length
240 mm

Master (outer) case net weight
11.1 kg

Master (outer) case width
565 mm

Products per master (outer) case
6 pc(s)

Products per pallet (EU)
144 pc(s)

Mounting

Maximum screen size
165.1 cm (65")

Maximum VESA mount
200 x 200 mm

Maximum weight capacity
40 kg

Maximum weight capacity (per display)
40 kg

Minimum screen size
61 cm (24")

Minimum VESA mount
75 x 75 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
75 x 200 mm

Packaging data

Package depth
158 mm

Package height
74 mm

Package weight
2.4 kg

Package width
545 mm

Technical details

Country of origin
China

Lockable
Security screw included

Package net weight
2.4 kg

Quantity per pack
1 pc(s)

Weight & dimensions

Depth
35 mm

Height
270 mm

Weight
1.55 kg

Width
283 mm

Description

Neomounts WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation. Maximum weight capacity: 40 kg, Minimum screen size: 61 cm (24"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 20 mm, Tilt angle range: 0 - 12°, Distance to the wall (max): 3.5 cm. Product colour: Black

Maximum weight capacity: 40 kg
Minimum screen size: 61 cm (24") Maximum screen size: 165.1 cm (65") Wall
Minimum VESA mount: 75 x 75 mm Maximum VESA mount: 200 x 200 mm
Number of displays supported: 1
Height adjustment Tilt adjustment
Steel Black
