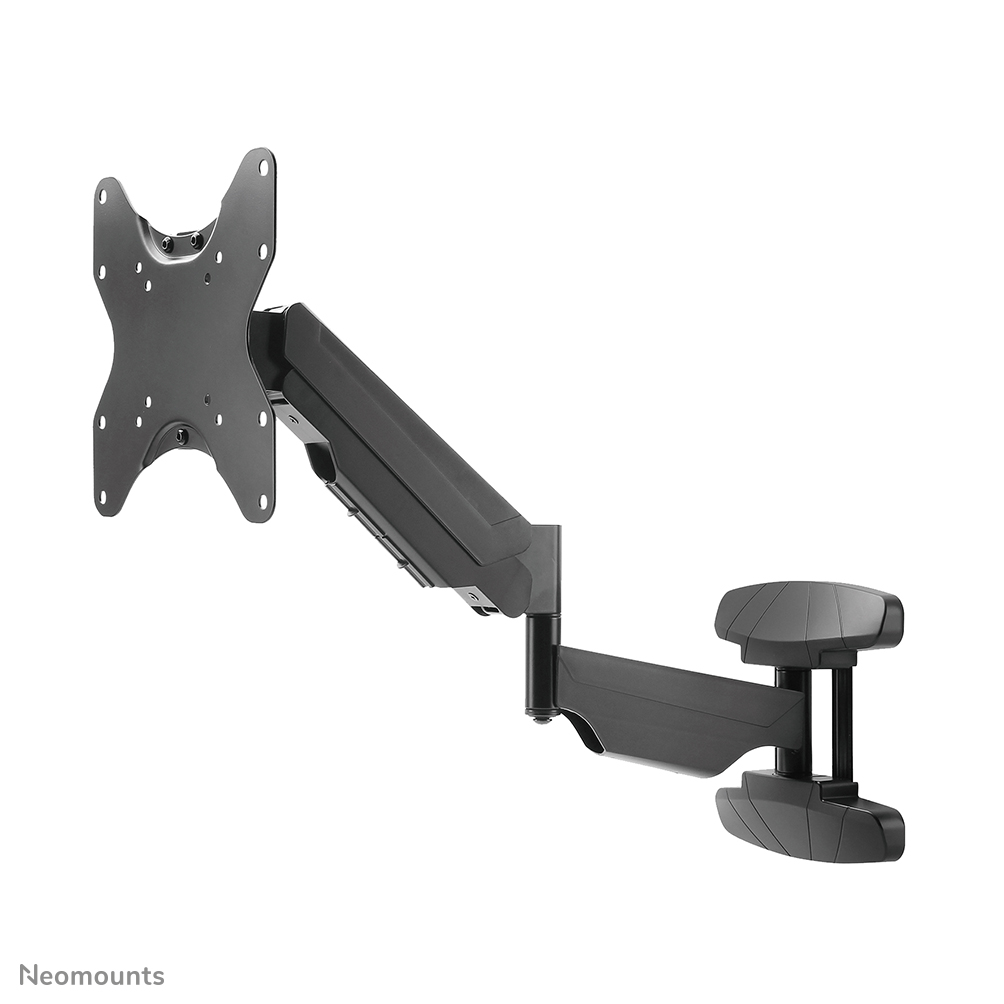

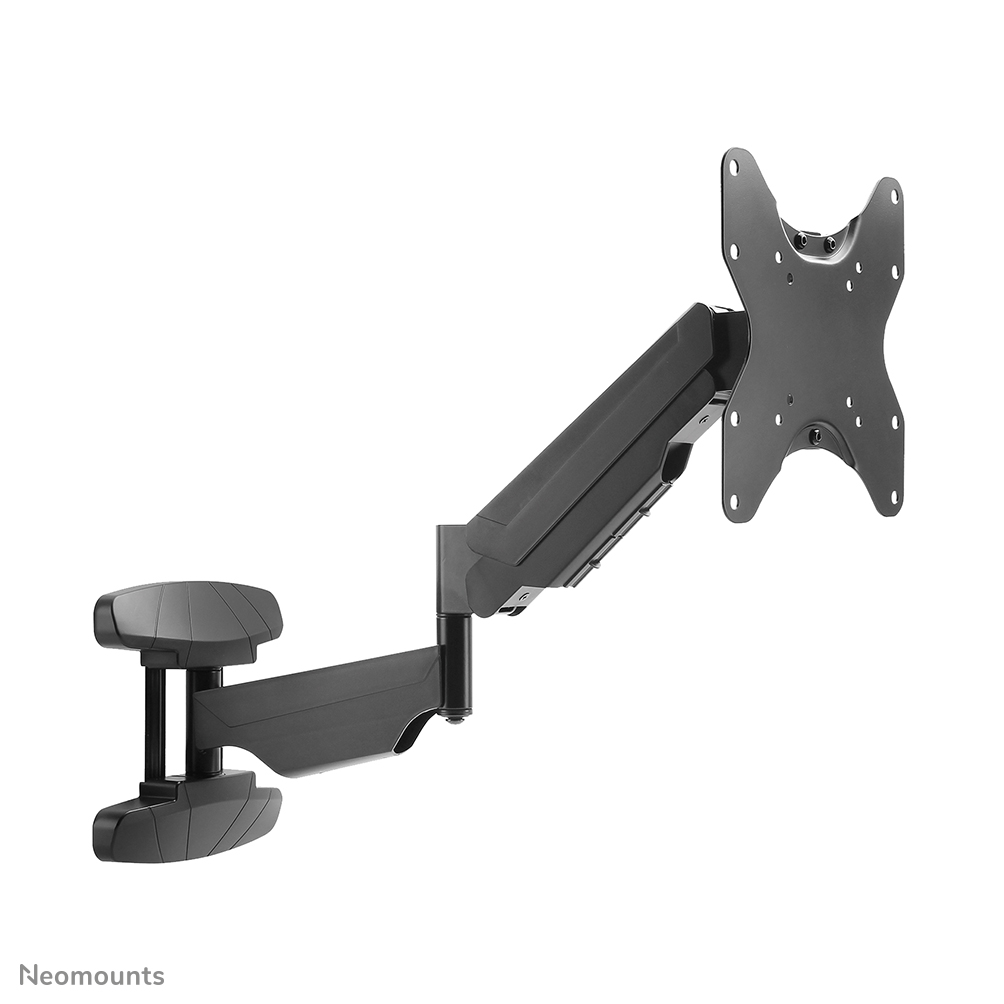

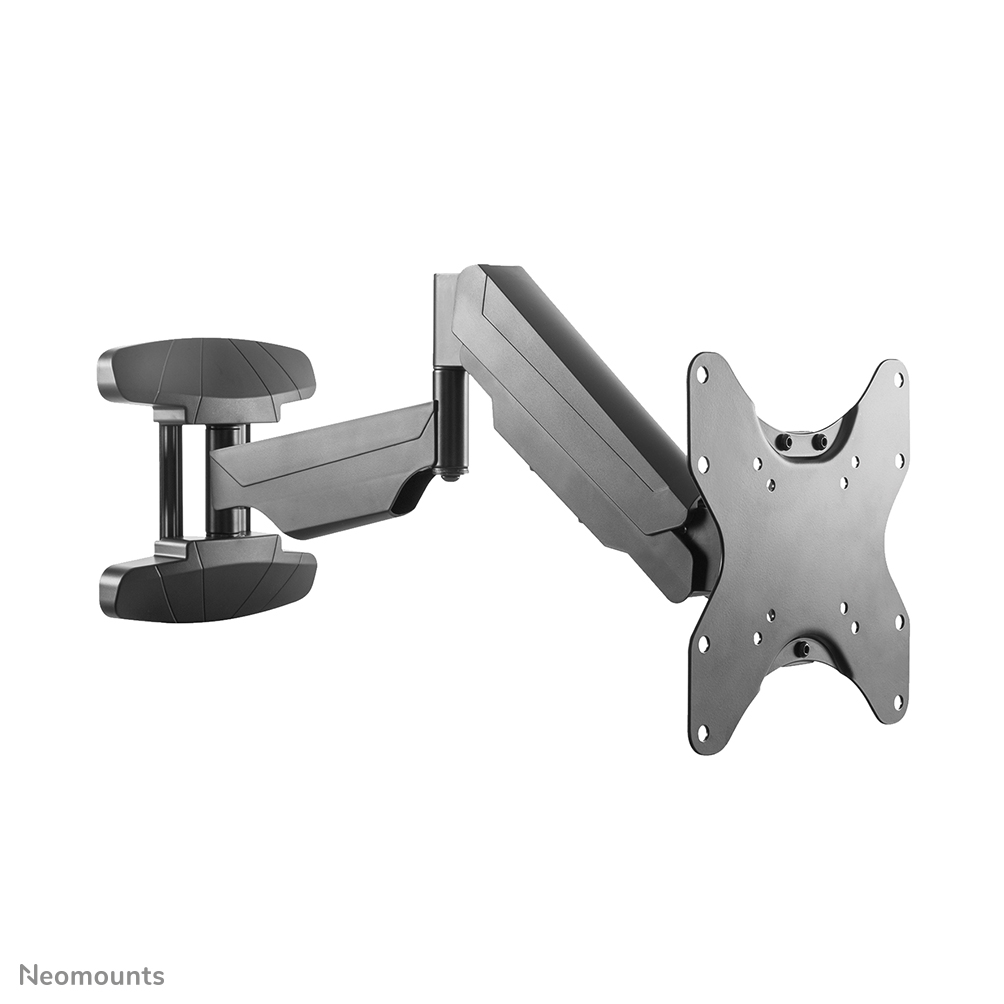

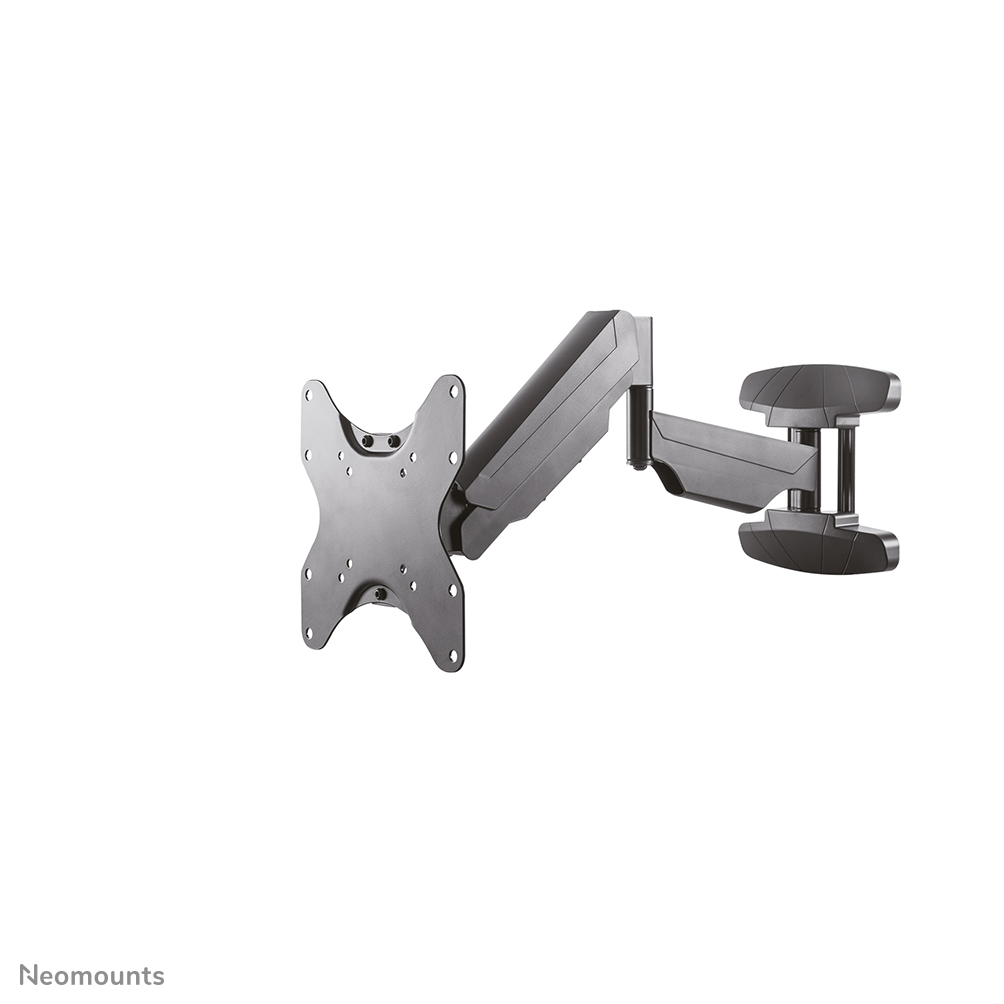

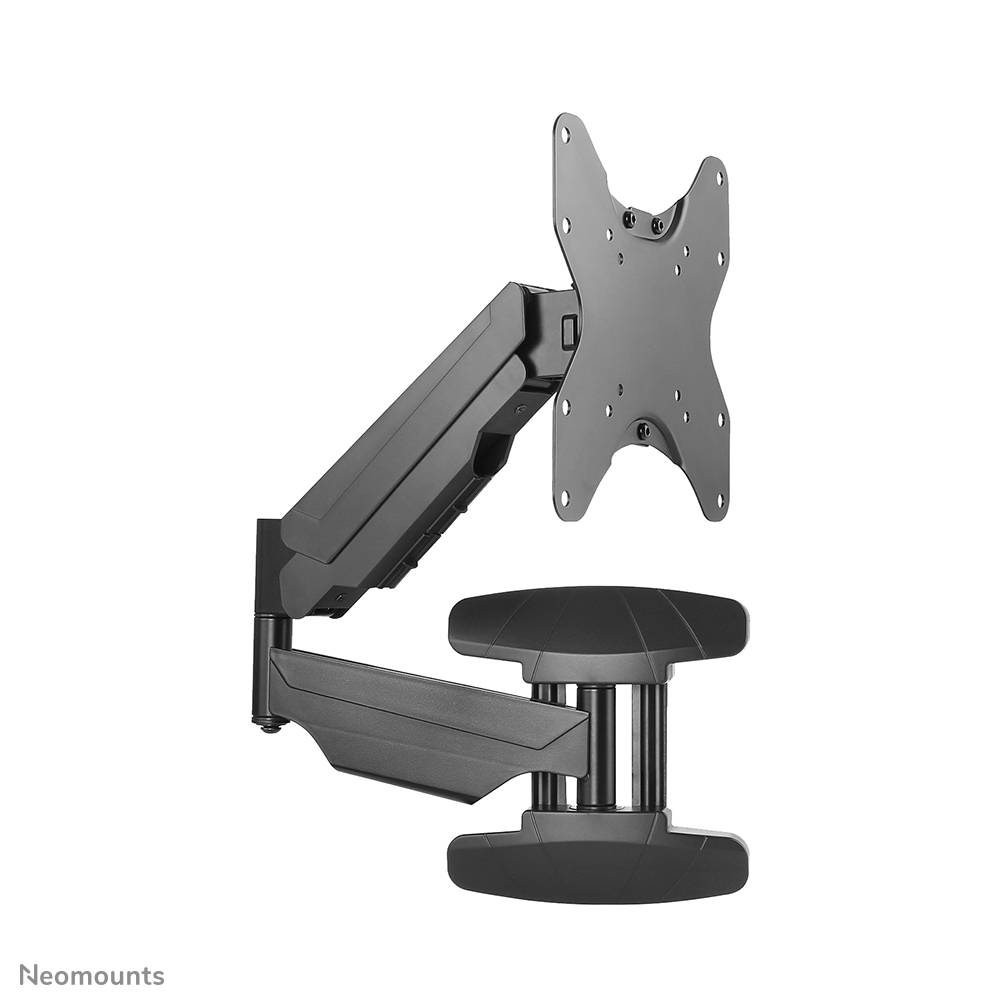

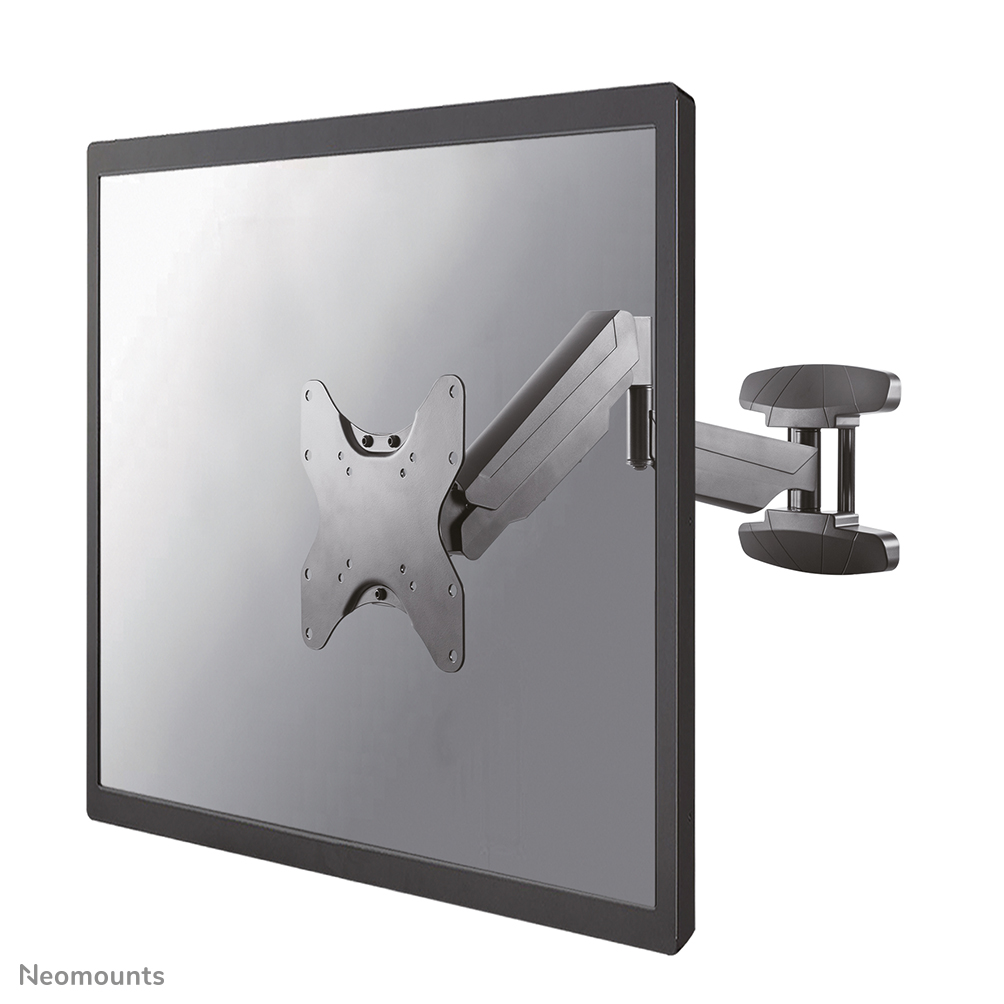

Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion

Roll over image to zoom inClick to Open expanded view

Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion

Name: Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion
Brand: Neomounts
SKU: WL70-550BL12

SKU: WL70-550BL12

Log In to View Pricing

1 In Stock

1

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	1	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion, 75 x 75 mm, 200 x 200 mm, -15 - 5°, 0 - 180°, 6°, Black

1 In Stock

1

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	1	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

hypertec

Safety information (Download)

WL70-550BL12_Greensheet_EN (Download)

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Neomounts

Warranty
5 Years

SKU
WL70-550BL12

EAN
8717371449056

Design

Housing material
Steel

Product colour
Black

Ergonomics

Angle of rotation
6°

Cable management
Yes

Distance to the wall (max)
56.3 cm

Distance to the wall (min)
5.9 cm

Height adjustment
Yes

Height adjustment range
0 - 282 mm

Height adjustment type
Gas spring

Pivot angle
-3 - 3°

Rotating
Yes

Swivel angle
180°

Swivel angle range
0 - 180°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-15 - 5°

Logistics data

Harmonized System (HS) code
7326909890

Master (outer) case gross weight
15.5 kg

Master (outer) case height
245 mm

Master (outer) case length
520 mm

Master (outer) case net weight
11.7 kg

Master (outer) case width
380 mm

Products per master (outer) case
3 pc(s)

Products per pallet (EU)
72 pc(s)

Mounting

Maximum screen size
106.7 cm (42")

Maximum VESA mount
200 x 200 mm

Maximum weight capacity
30 kg

Maximum weight capacity (per display)
30 kg

Minimum screen size
58.4 cm (23")

Minimum VESA mount
75 x 75 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
100 x 100,200 x 100,200 x 200,75 x 75

Other features

Minimum weight
5 kg

Mounting
Screws

Packaging data

Package depth
505 mm

Package height
75 mm

Package weight
4.8 kg

Package width
365 mm

Technical details

Country of origin
China

Package net weight
4.8 kg

Quantity per pack
1 pc(s)

Weight & dimensions

Depth
563 mm

Depth (max)
56.3 cm

Height
327 mm

Weight
3.9 kg

Width
226 mm

Description

Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion. Maximum weight capacity: 30 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 282 mm, Tilt angle range: -15 - 5°, Swivel angle range: 0 - 180°, Angle of rotation: 6°, Distance to the wall (min): 5.9 cm, Distance to the wall (max): 56.3 cm. Product colour: Black

Maximum weight capacity: 30 kg
Minimum screen size: 58.4 cm (23") Maximum screen size: 106.7 cm (42") Wall
Minimum VESA mount: 75 x 75 mm Maximum VESA mount: 200 x 200 mm
Number of displays supported: 1
Height adjustment Gas spring Tilt adjustment Rotating
Cable management
Steel Black
