Name: Intel Xeon Silver 4210R (13.75MB Cache, 2.4GHz), 16GB DDR4-SDRAM (3200MT/s), 480GB SSD, LAN (Broadcom 5720,Broadcom 57412), PERC H750, iDRAC9 Enterprise, 750W, No OS
Brand: Dell
SKU: J7MH3

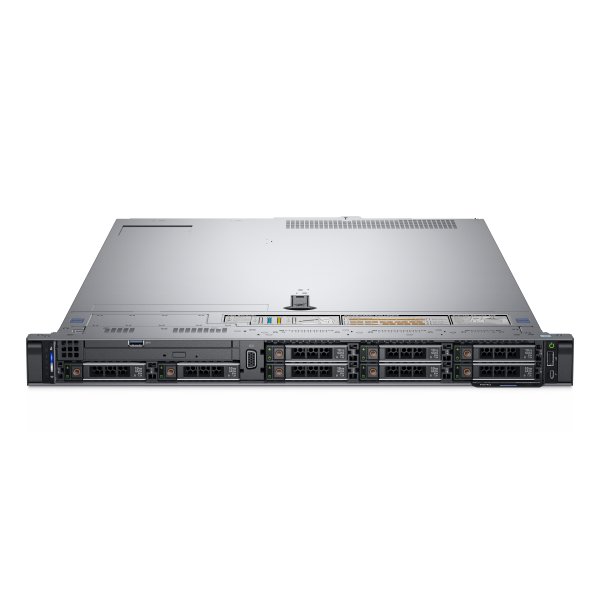

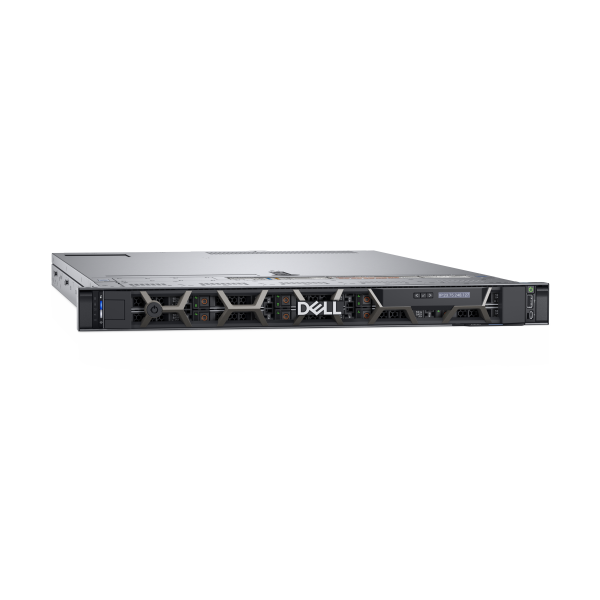

DELL PowerEdge R640 server 480 GB Rack (1U) Intel Xeon Silver 4210R 2.4 GHz 16 GB DDR4-SDRAM 750 W

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Dell

Device type
Server

Bullet points

Design

Bezel
Yes

Chassis type
Rack (1U)

Product colour
Black

Rack mounting
Yes

Redundant fans support
Yes

Expansion slots

PCI Express x16 slots
2

Filters

Machinecategory
Server

Graphics

On-board graphics card
No

On-board graphics card model
Not available

Memory

Buffered memory type
Registered (buffered)

Internal memory type
DDR4-SDRAM

Memory data transfer rate
3200 MT/s

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory ranking
2

Memory Slot Support
1.54 TB

Memory slots
24x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Broadcom 5720, Broadcom 57412

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
10 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 65 °C

Performance

Remote administration
iDRAC9 Enterprise

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Serial ports quantity
1

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
1

Power

Number of main power supplies
1

Number of redundant power supplies supported
2

Power cable connector 1
C13 coupler

Power cable connector 2
C14 coupler

Power cable current
10 A

Power cable length
2 m

Power supply
750 W

Redundant power supply (RPS) support
Yes

Processor

Embedded options available
Yes

Execute Disable Bit
Yes

Maximum internal memory supported by processor
768 GB

Maximum number of SMP processors
2

Number of processors installed
1

Processor
4210R

Processor boost frequency
3.2 GHz

Processor cache
13.75 MB

Processor family
Intel Xeon Silver

Processor frequency
2.4 GHz

Processor generation
2nd Generation Intel® Xeon® Scalable

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Compatible operating systems
Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Operating system installed
No

Storage

Number of SSDs installed
1

Number of SSDs supported
8

Optical drive type
No

RAID controller cache
8 GB

SSD capacity
480 GB

SSD interface
SATA

SSD size
2.5"

Storage Capacity
480 GB

Supported HDD sizes
2.5"

Supported RAID controllers
PERC H750

Supported SSD sizes
2.5"

Technical details

Number of 2.5" bays
8

Weight & dimensions

Depth
757.8 mm

Height
42.8 mm

Package depth
919 mm

Package height
292 mm

Package weight
21.6 kg

Package width
616 mm

Weight
21.9 kg

Width
482 mm

Memory

Internal memory type
DDR4-SDRAM

Memory Installed
16 GB

Memory Slot Support
1.54 TB

Memory slots
24x DIMM

Processor

Processor
4210R

Processor generation
2nd Generation Intel® Xeon® Scalable
