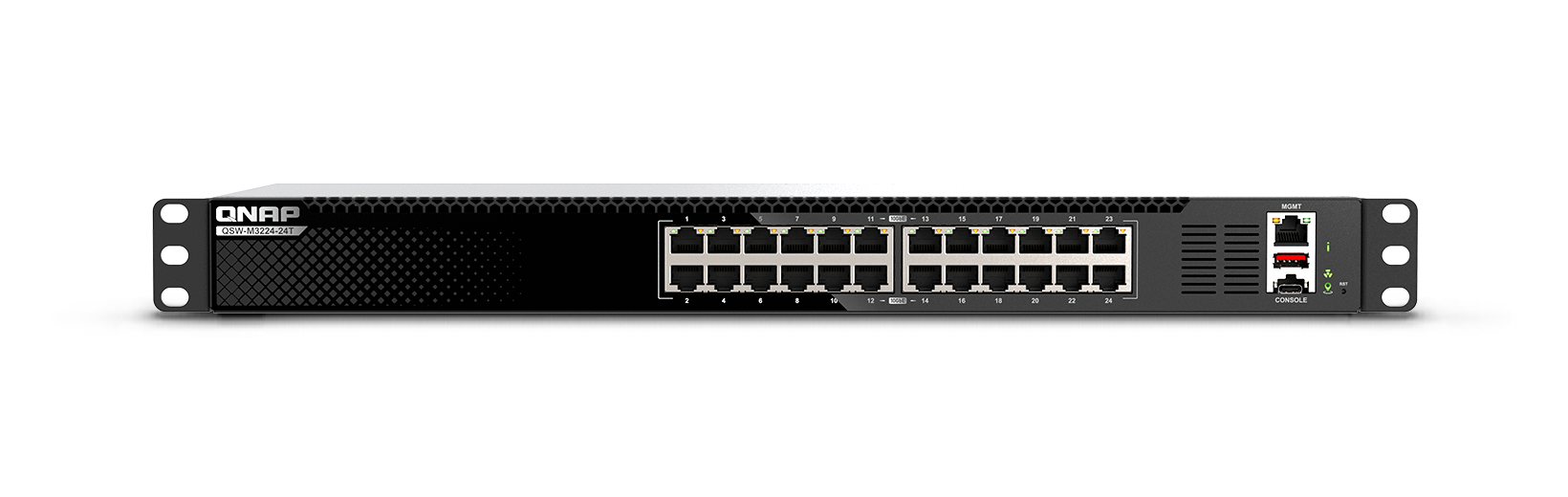

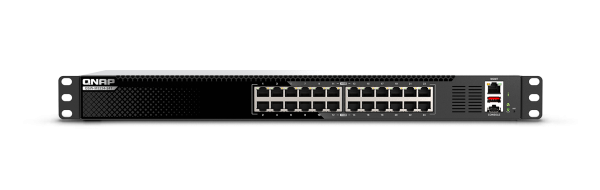

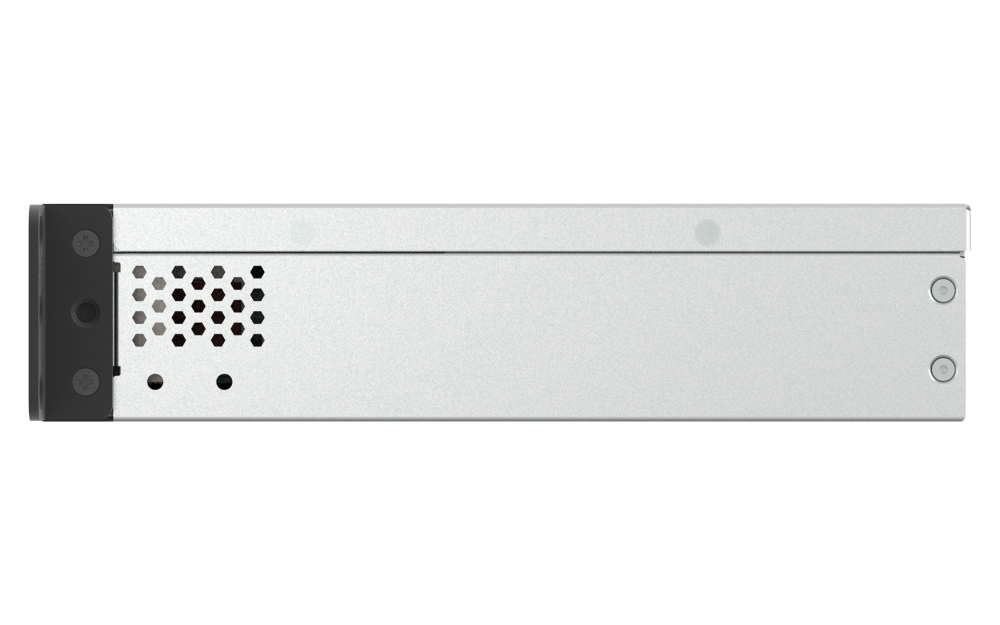

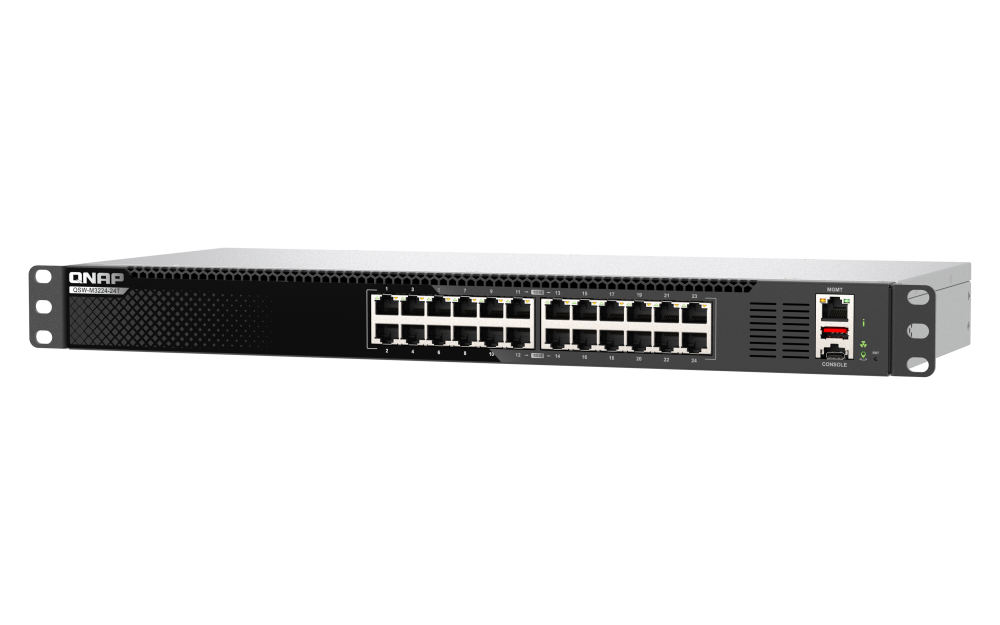

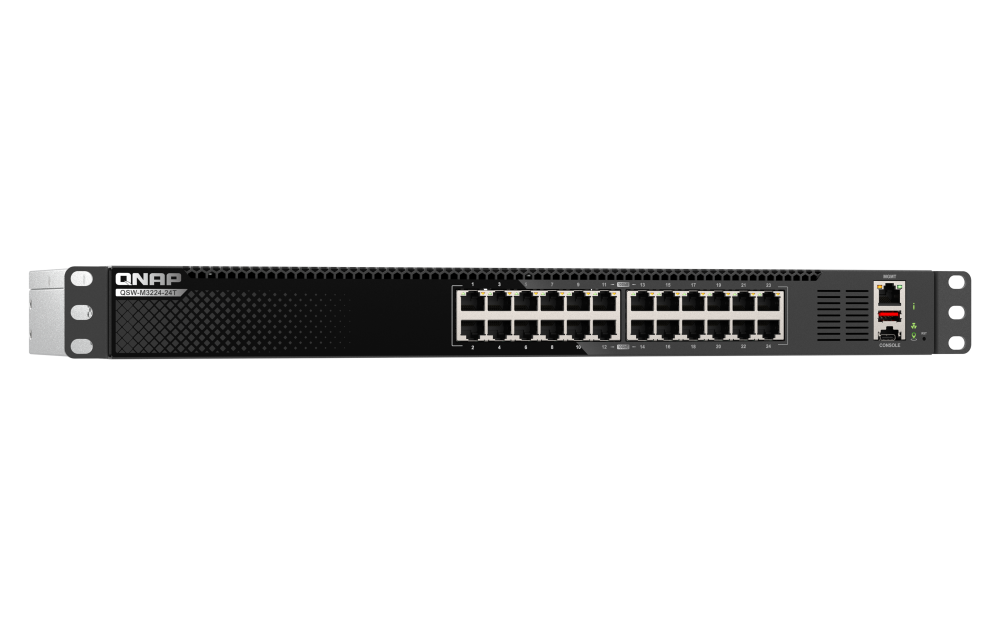

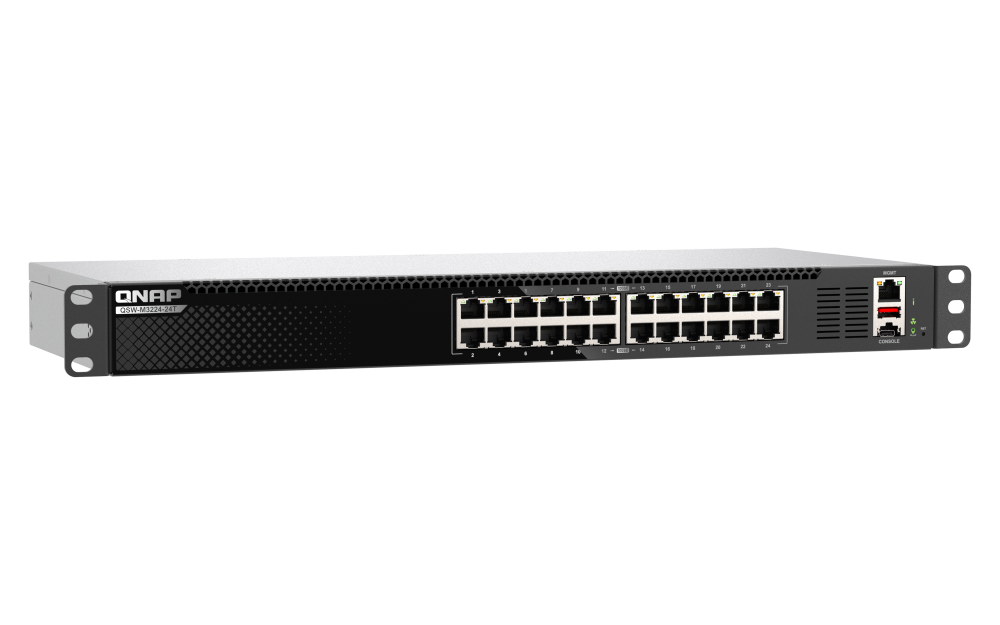

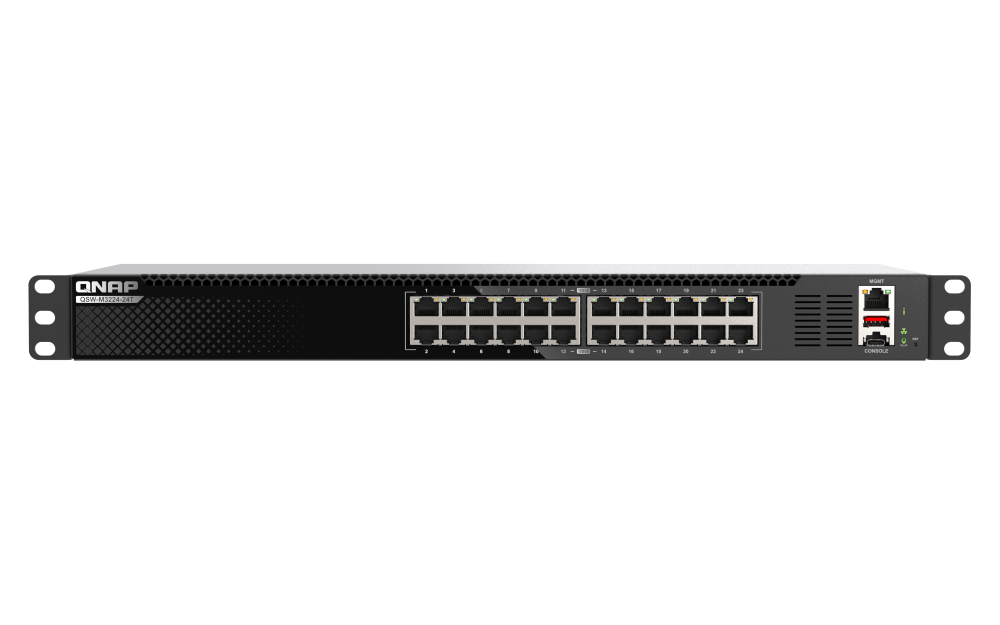

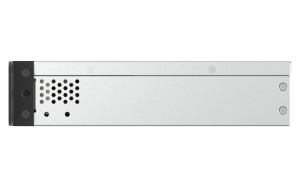

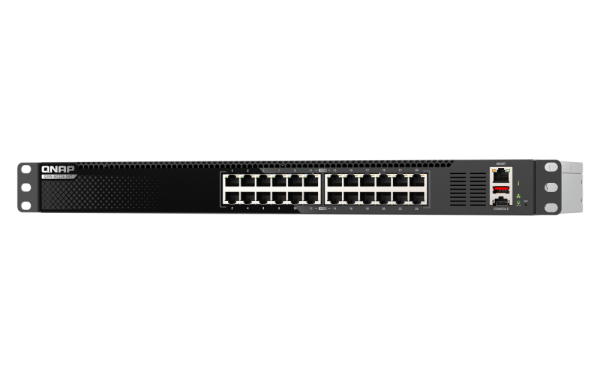

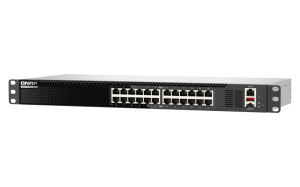

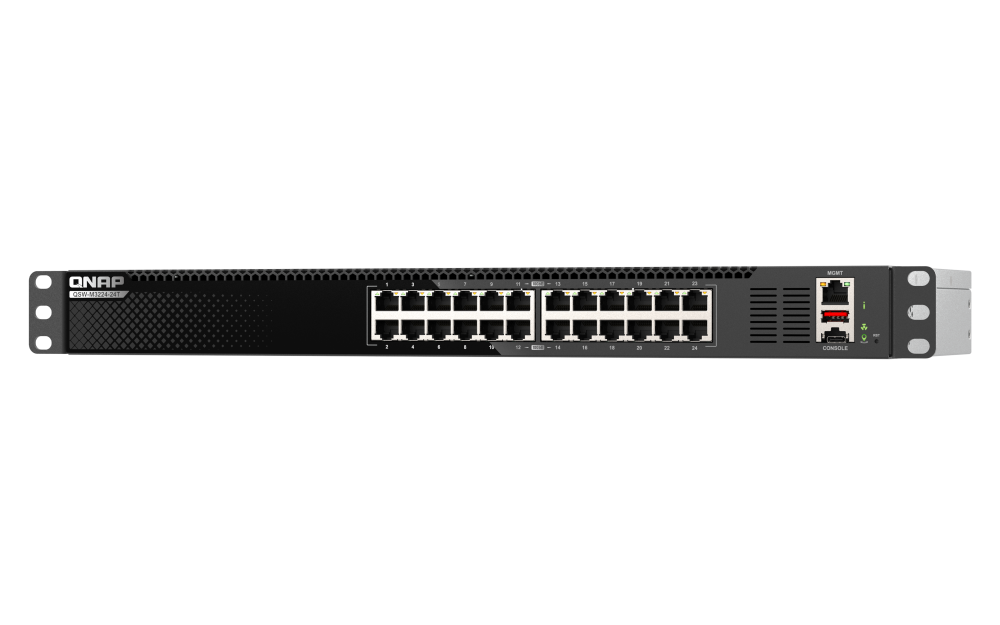

QNAP QSW-M3224-24T network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black, Silver

Roll over image to zoom inClick to Open expanded view

QNAP QSW-M3224-24T network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black, Silver

Name: QNAP QSW-M3224-24T network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black, Silver
Brand: QNAP
SKU: QSW-M3224-24T

SKU: QSW-M3224-24T

ETA 10 days

QNAP QSW-M3224-24T, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

ETA 10 days

hypertec

Product manual (Download)

Quick Start Guide (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

SKU
QSW-M3224-24T

EAN
4711103085363

Bullet points

Certificates

Certification
CE, FCC, VCCI, BSMI

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
32000 entries

Static route
Yes

Switching capacity
480 Gbit/s

Throughput
240 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Product colour
Black, Silver

Rack mounting
Yes

Reset button
Yes

Stackable
Yes

Logistics data

Country of origin
Taiwan

Management features

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

System event log
Yes

Web-based management
Yes

Network

10G support
Yes

Auto-negotiation
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Port mirroring
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Other features

Warranty period
2 year(s)

Packaging content

Cables included
AC

Quick start guide
Yes

Rack mount kit
Yes

Packaging data

Package depth
362 mm

Package height
170 mm

Package weight
4.5 kg

Package width
582 mm

Performance

Firmware upgradeable
Yes

Ports & interfaces

Console port
RJ-45

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Number of management ports
1 pc(s)

Switch Number of Ports
24

Switch Port Speed
10G Ethernet (100/1000/10000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
116.9 W

Power source
AC

Security

Access Control List (ACL)
Yes

DHCP features
DHCP server

IGMP snooping
Yes

Loop protection
Yes

Weight & dimensions

Depth
190 mm

Height
44.2 mm

Weight
2.93 kg

Width
438.5 mm

Description

QNAP QSW-M3224-24T. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE.... Rack mounting, Form factor: 1U

Managed L3 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
10G support
MAC address table: 32000 entries Switching capacity: 480 Gbit/s
Access Control List (ACL)
1U Rack mounting Stackable
AC
24-port 10GbE network: Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth
L3 Lite: Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure
Continuous Enterprise networks: Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching
Secure network management: Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance
Low-latency AVoIP user experience: Supports IGMP Snooping with VLAN and QoS priority management for high-resolution audiovisual experiences. This makes it ideal for applications such as video walls and large outdoor display walls
Cloud-centralized control for hassle-free management: No additional hardware or software is required. Use the AMIZcloud management platform to monitor multiple switches across various locations, enabling remote IT troubleshooting and reducing operational costs
