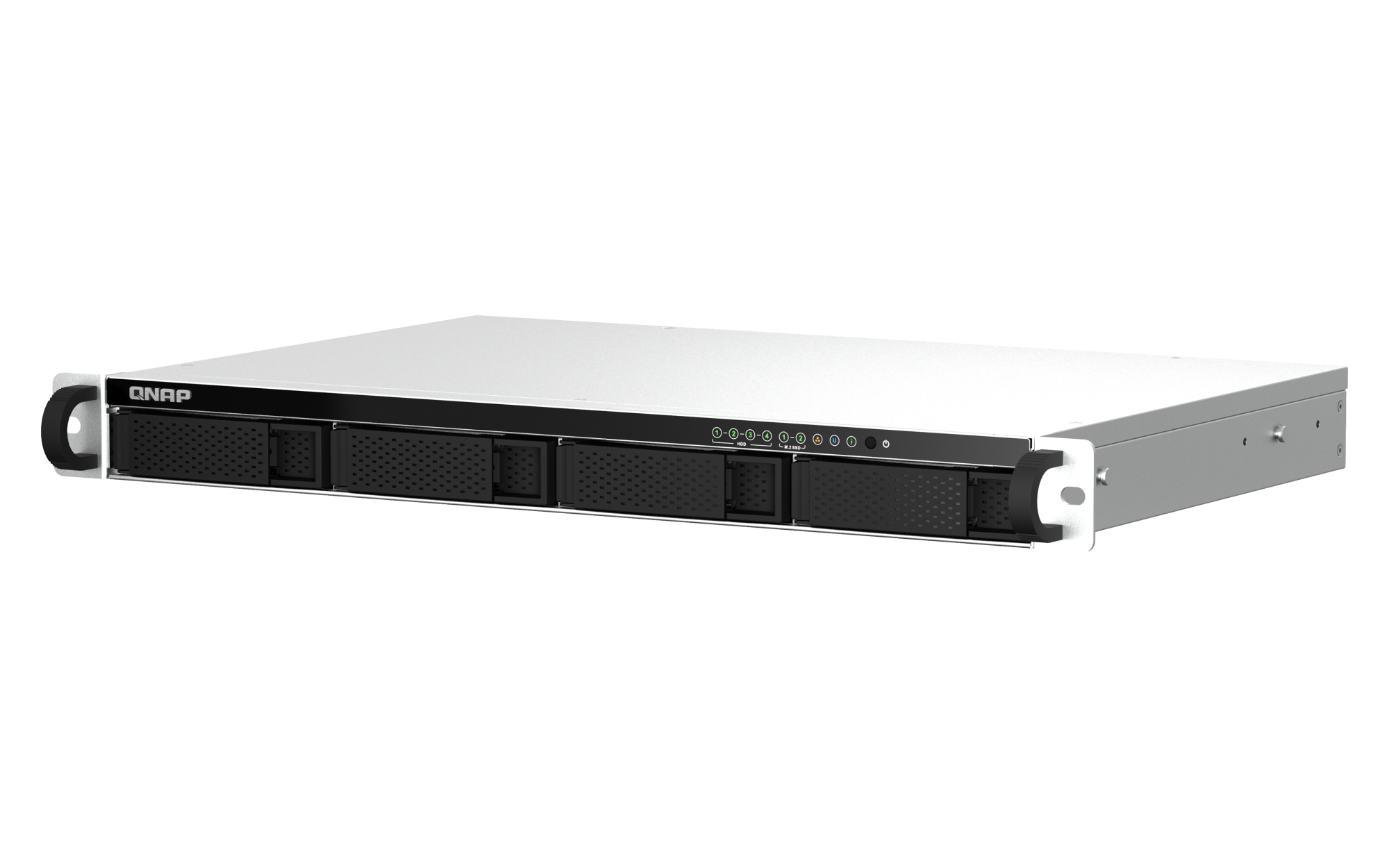

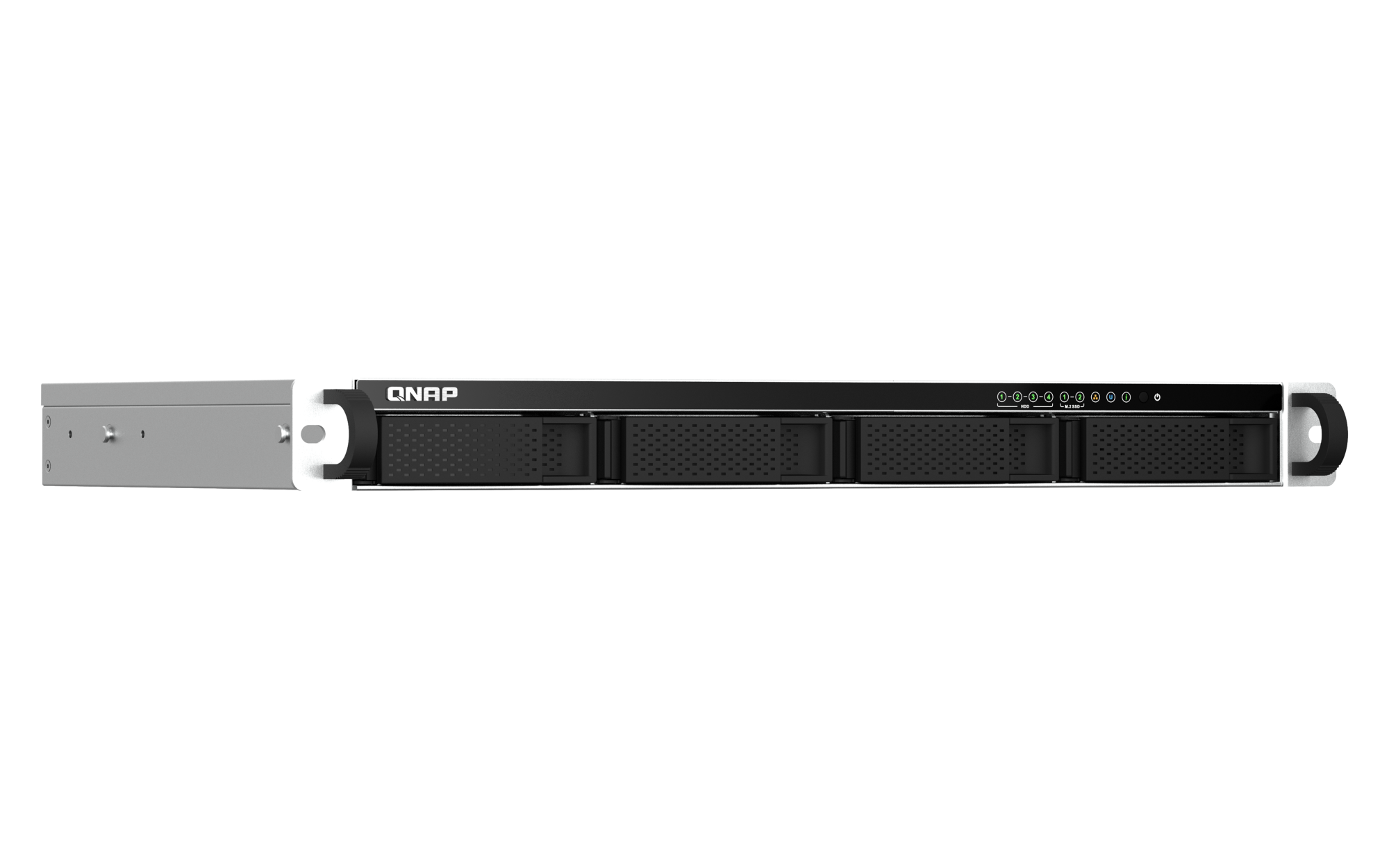

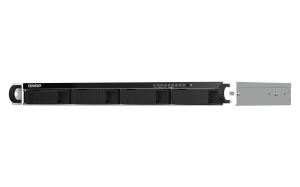

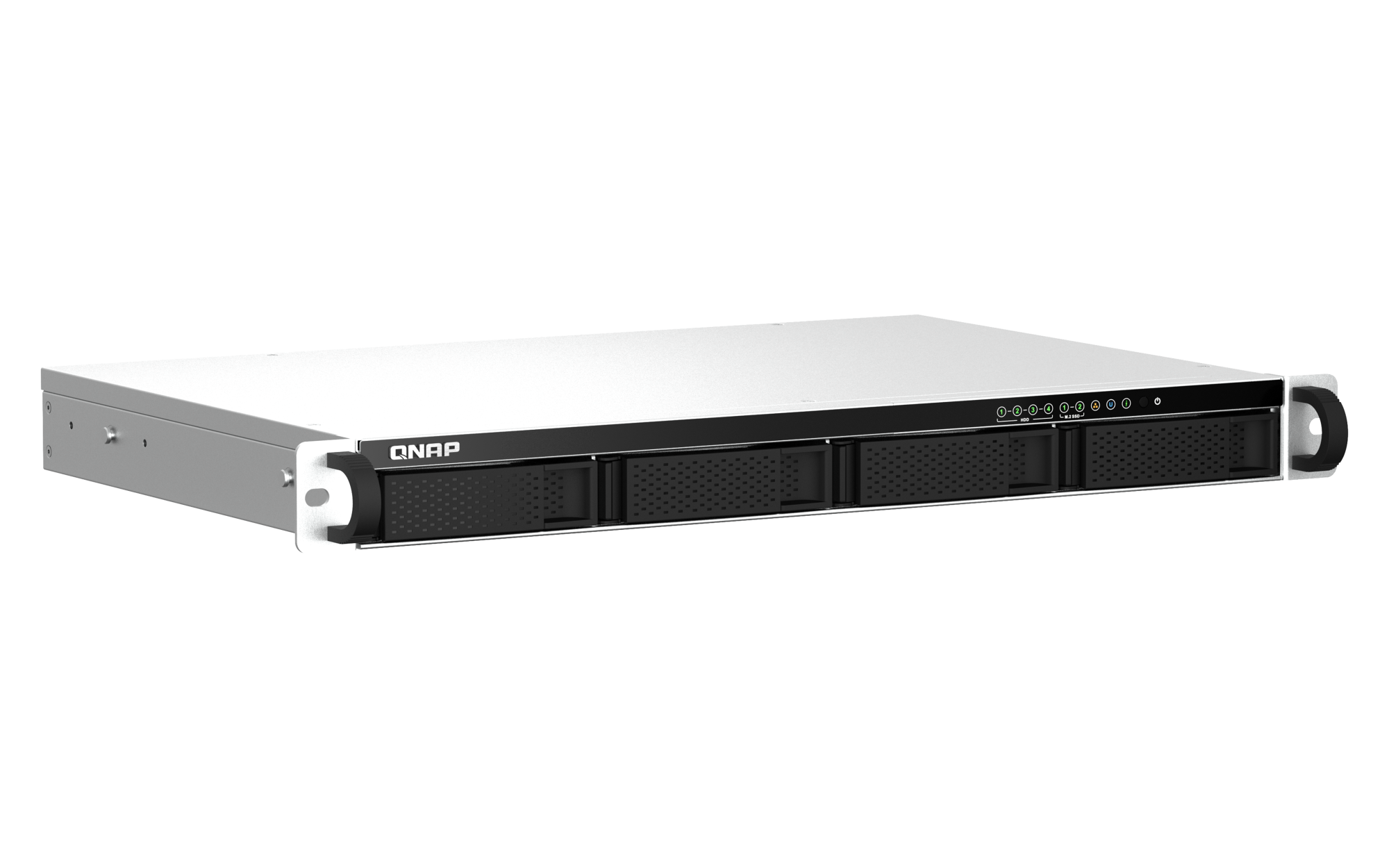

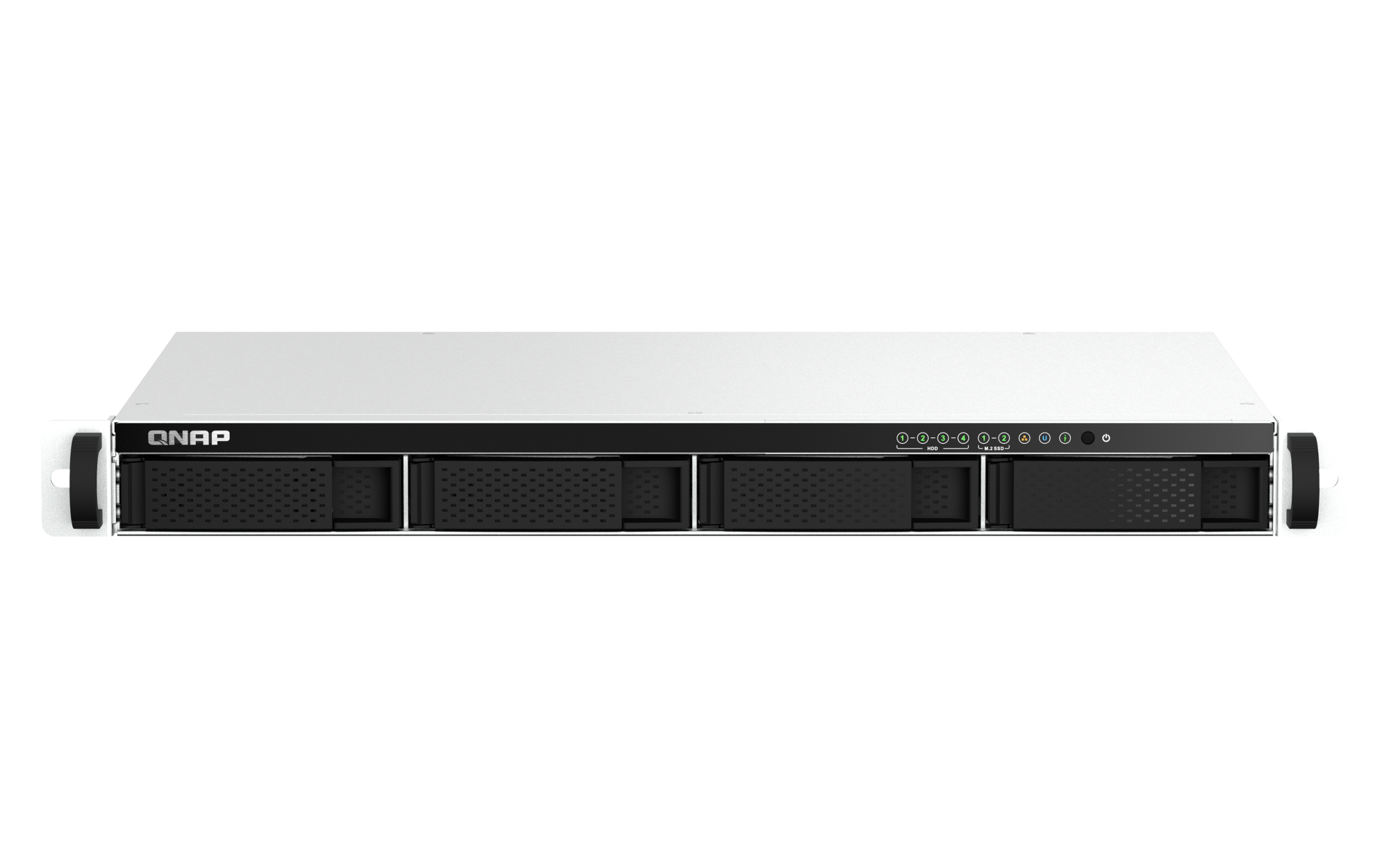

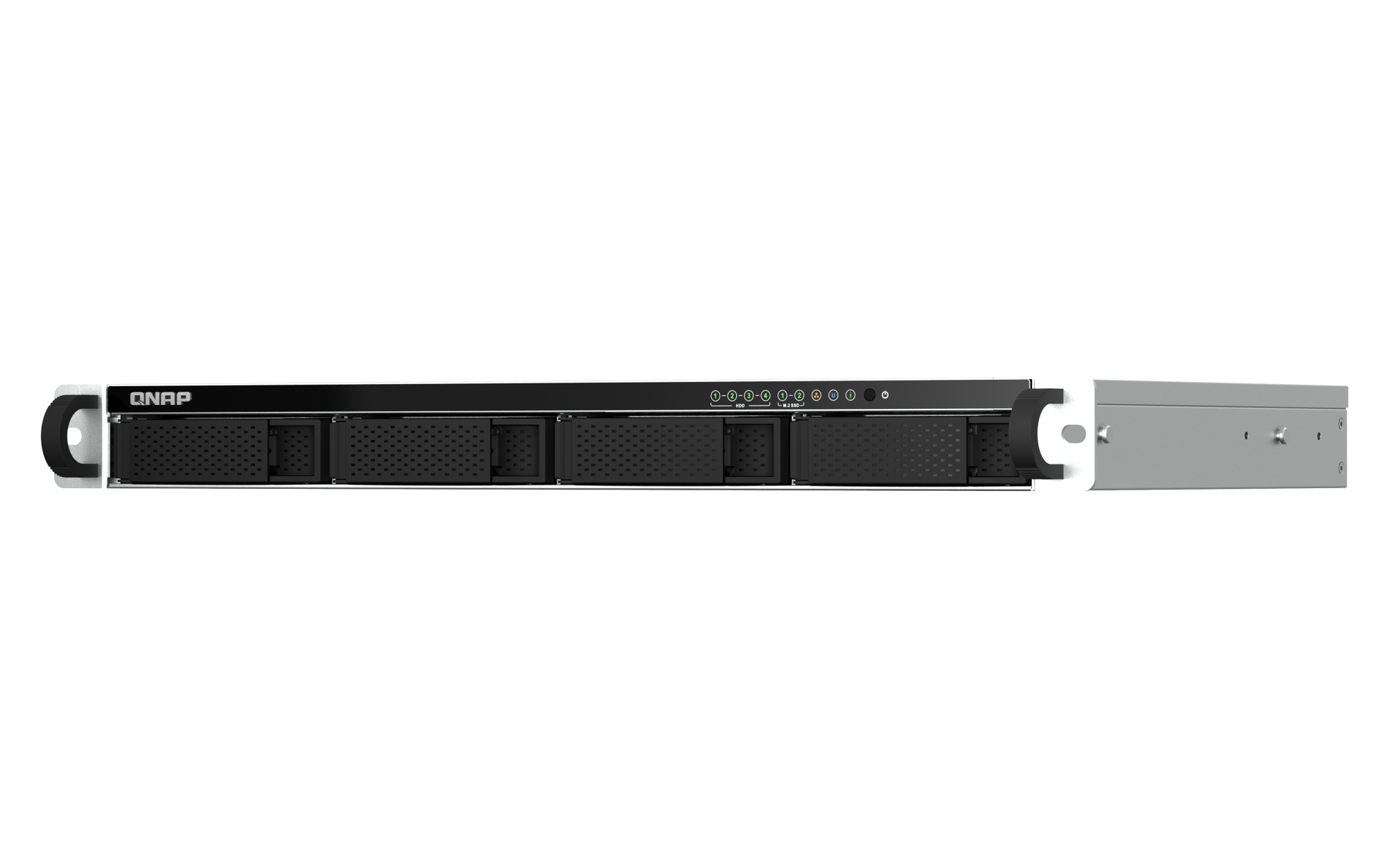

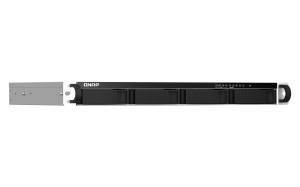

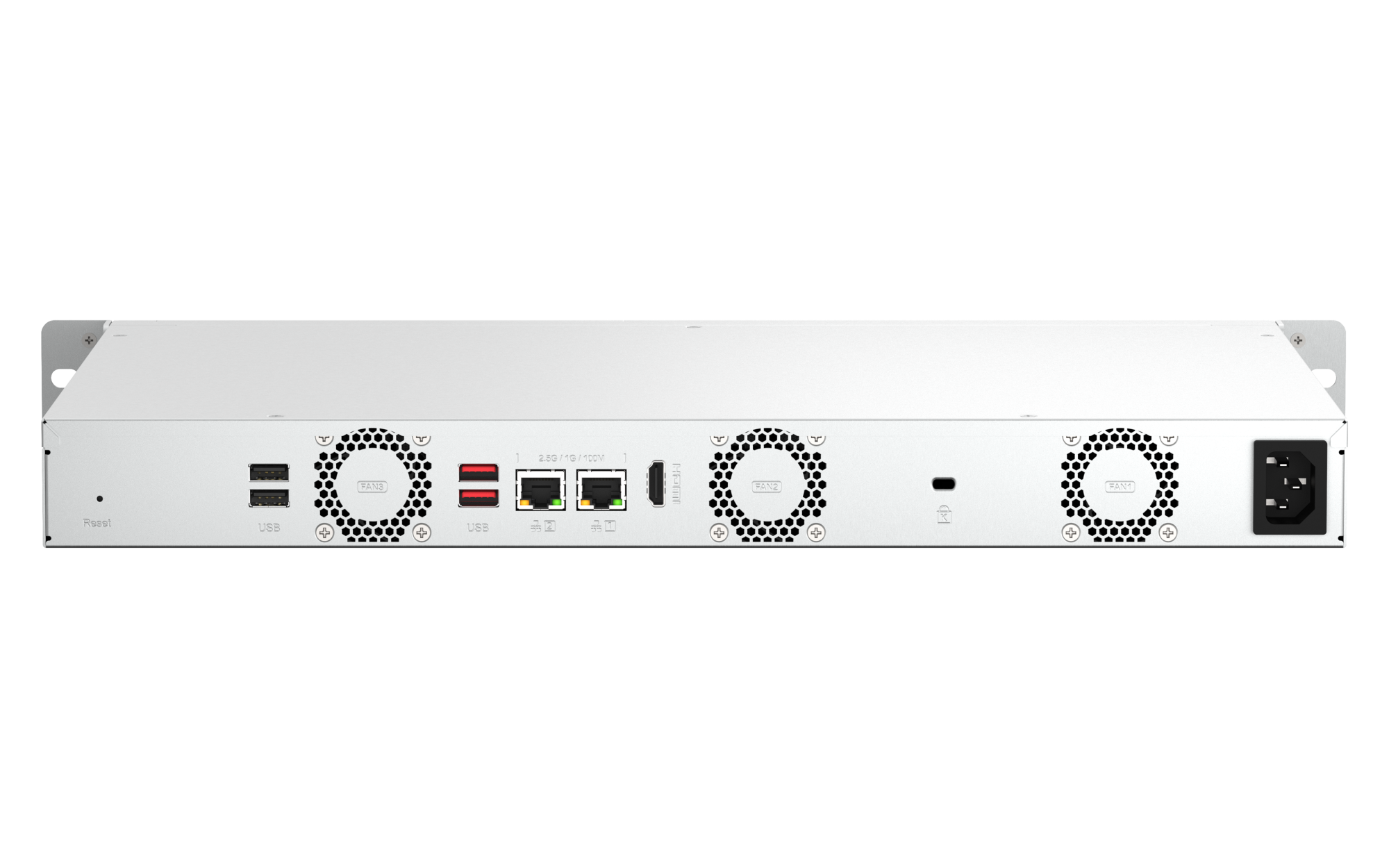

QNAP TS-464eU NAS Rack (1U) Intel® Celeron® N5095 8 GB DDR4 32 TB HDD QNAP QTS Aluminium, Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-464eU NAS Rack (1U) Intel® Celeron® N5095 8 GB DDR4 32 TB HDD QNAP QTS Aluminium, Black

Name: QNAP TS-464eU NAS Rack (1U) Intel® Celeron® N5095 8 GB DDR4 32 TB HDD QNAP QTS Aluminium, Black
Brand: QNAP
SKU: TS-464EU-8G/32TB-EXOS

SKU: TS-464EU-8G/32TB-EXOS

Non-Cancellable, Non-Returnable

Log In to View Pricing

ETA 10 days

QNAP TS-464eU, NAS, Rack (1U), Intel® Celeron®, N5095, 8 GB, DDR4

ETA 10 days

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

Drive
With drives

SKU
TS-464EU-8G/32TB-EXOS

EAN
5050914221607

Bullet points

Design

Chassis type
Rack (1U)

Cooling type
Active

Fan diameter
4 cm

LED indicators
HDD, M.2, Power, SSD, Status, USB

Number of fans
3 fan(s)

Product colour
Aluminium, Black

Memory

ECC
No

Flash memory
4000 MB

Internal memory type
DDR4

Maximum RAM supported
16 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
28

Power cables quantity
1

Rack mount kit
Yes

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Disk scan
Yes

Hot spare
Yes

Management protocols
SNMP v2, v3

Multilingual support
Yes

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH

Share folder
CIFS/SMB

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Ports & interfaces

Concurrent connections
1500

Ethernet LAN (RJ-45) ports
2

HDMI ports
1

HDMI version
1.4b

USB 2.0 ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB port
Yes

Power

AC input voltage
110 - 240 V

Fan voltage
12 V

Power consumption (HDD standby)
21.105 W

Power consumption (typical)
35.297 W

Power supply location
Built-in

Power supply unit (PSU) capacity
100 W

Processor

CPU configuration (max)
1

L3 cache
4 MB

Number of Cores
4

On-board graphics card model
Intel® UHD Graphics

Processor
N5095

Processor boost frequency
2.9 GHz

Processor family
Intel® Celeron®

Processor frequency
2 GHz

Processor manufacturer
Intel

Processor threads
4

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Idle States
Yes

Intel 64
Yes

Intel Trusted Execution Technology
No

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Linux operating systems supported
Yes

Operating system installed
QNAP QTS

Operating system version
5.0.1

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Storage

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
4

Number of storage drives supported
4

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive capacity
8 TB

Storage drive interface
Serial ATA II, Serial ATA III

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
32 TB

Weight & dimensions

Depth
321.3 mm

Height
43.3 mm

Width
482.6 mm

Description

QNAP TS-464eU. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Intel® Celeron®, Processor model: N5095, Processor frequency: 2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 32 TB, Installed storage drive type: HDD. Operating system installed: QNAP QTS

Small & Medium Business NAS Rack (1U) Aluminium, Black
QNAP QTS 5.0.1
Total installed storage capacity: 32 TB Number of storage drives supported: 4 HDD & SSD Serial ATA II, Serial ATA III
Intel® Celeron® N5095 2 GHz Intel® UHD Graphics
8 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 100 W
2.5GbE connectivity: Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports
HDMI Output: Supports 4K media playback and real-time transcoding
NVMe SSD application: Two M.2 PCIe NVMe SSD slots support Qtier™ auto-tiering technology and SSD caching
USB interface: Two USB 3.2 Gen 2 10Gbps ports for faster data transfer
Backup and data recovery: Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services
Hybrid cloud applications: Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS
