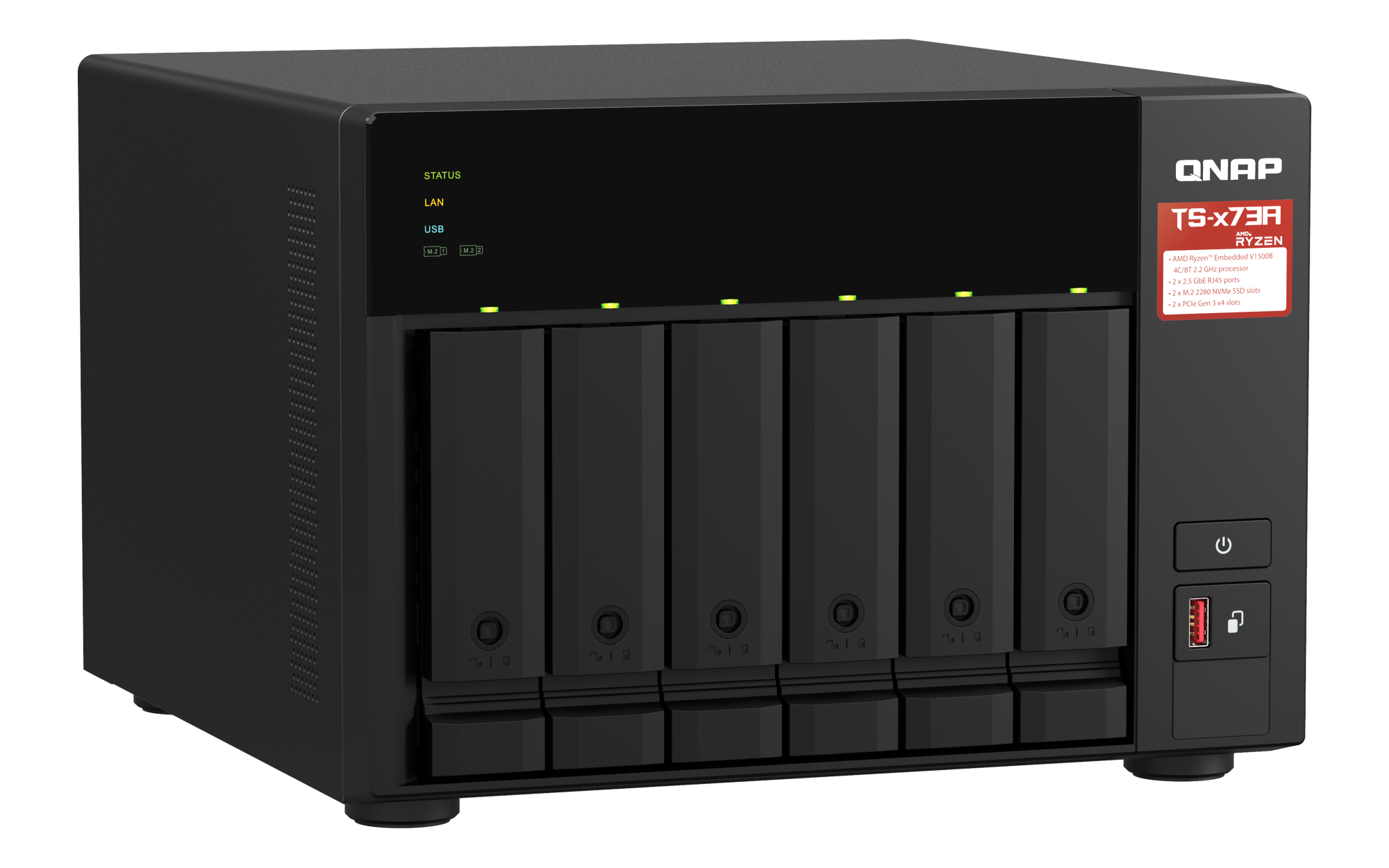

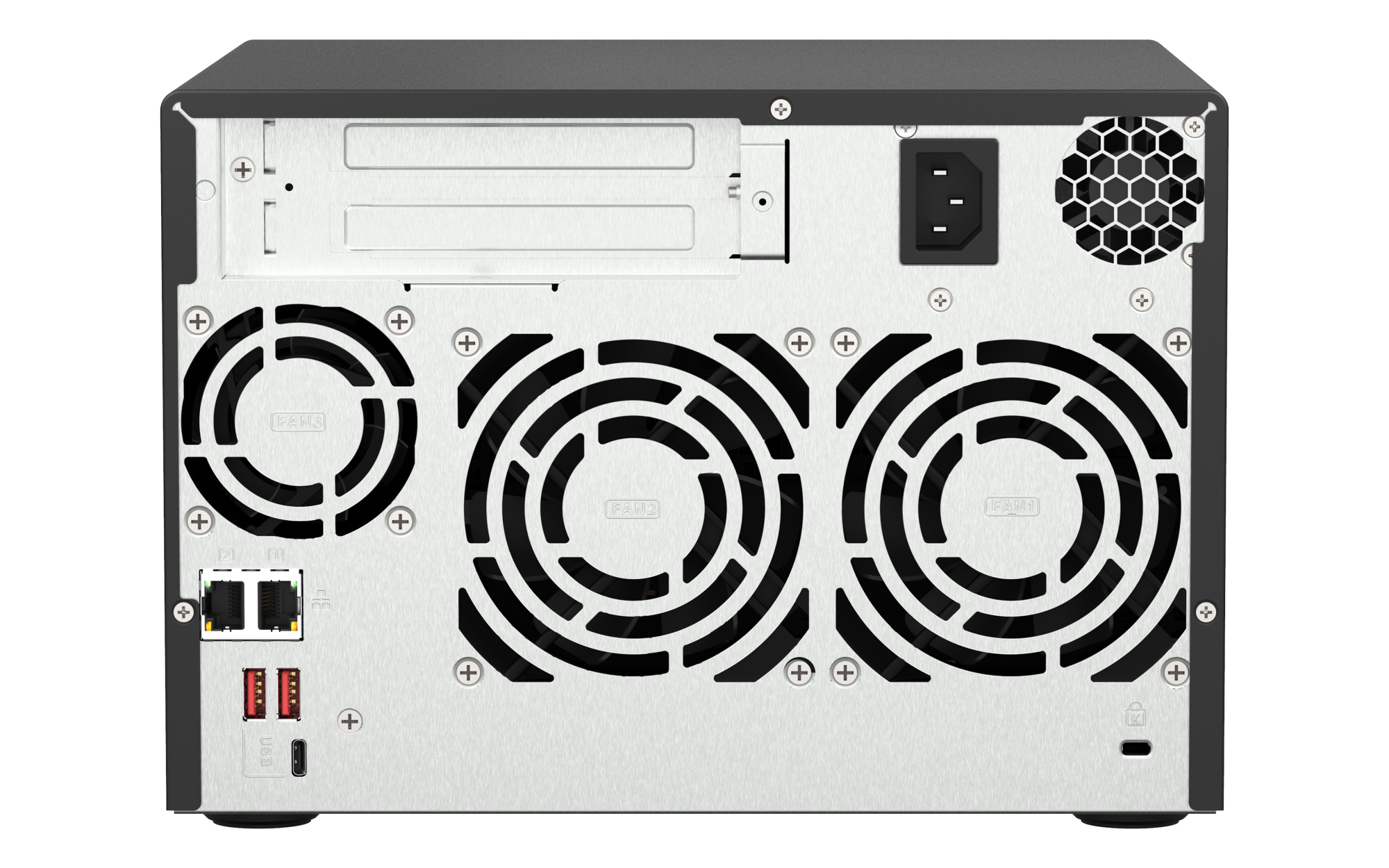

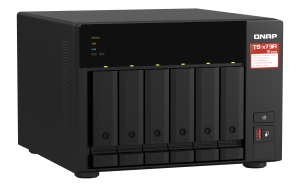

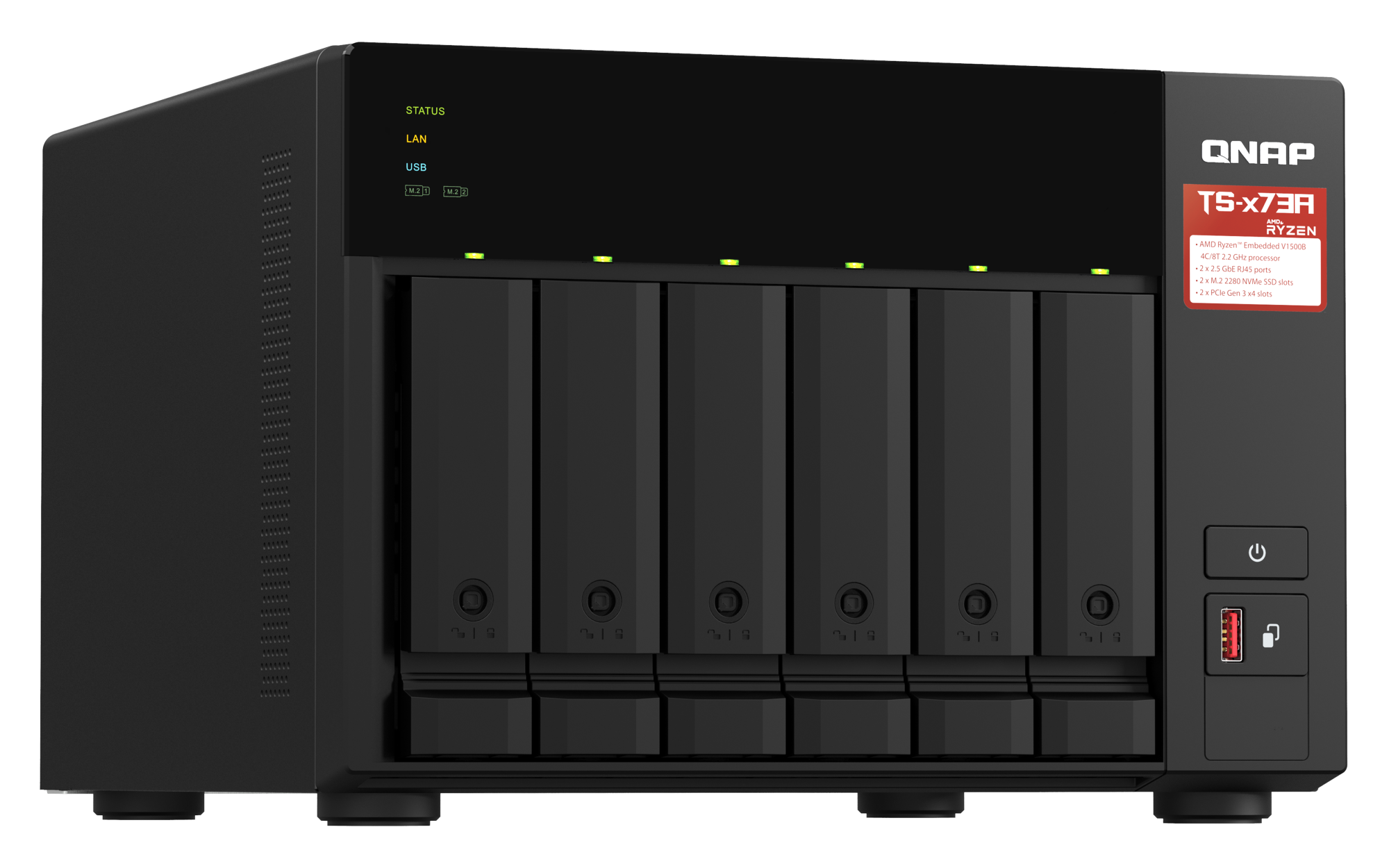

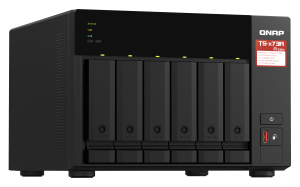

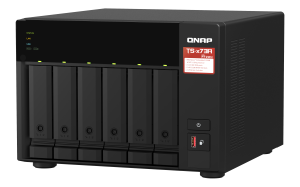

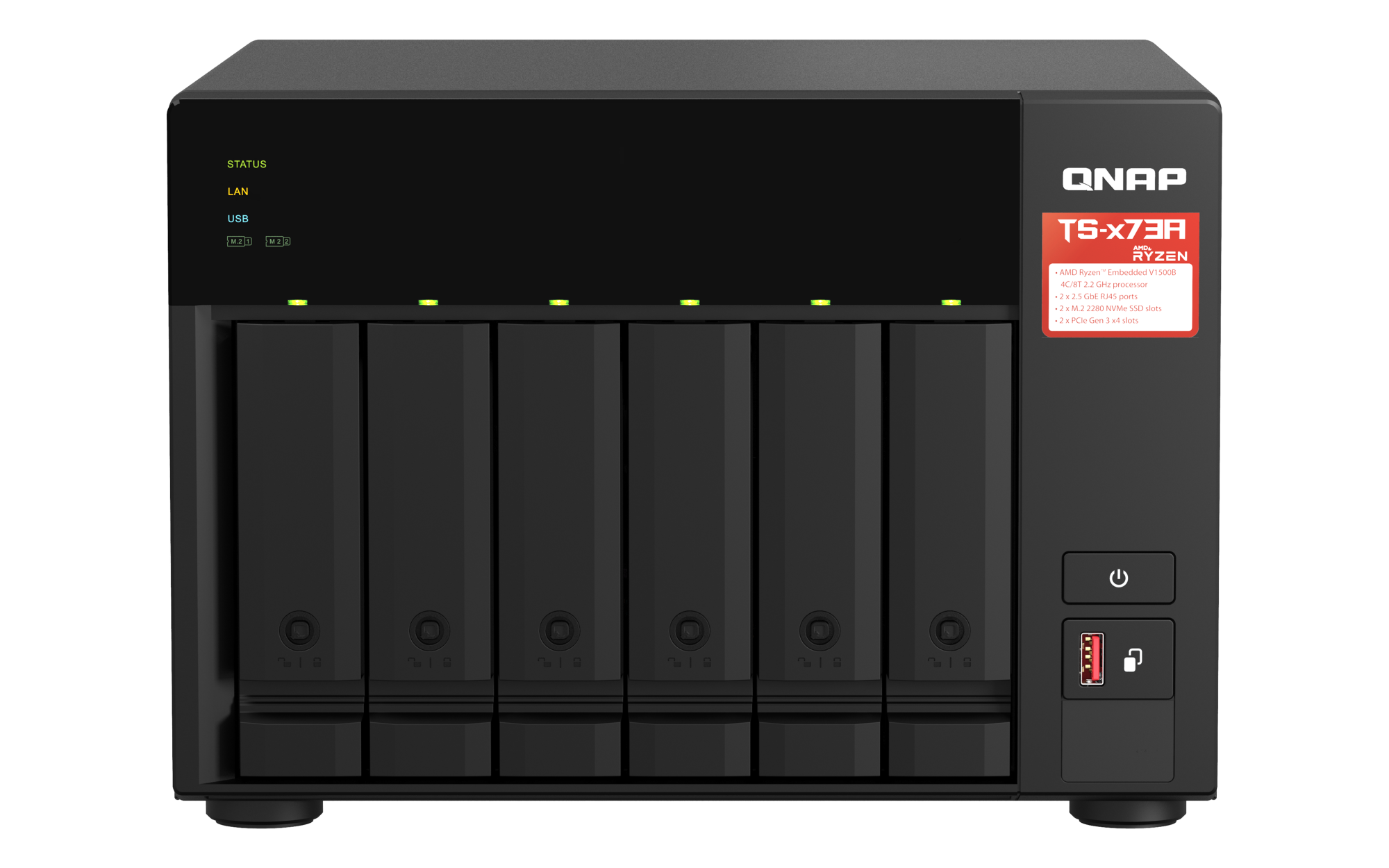

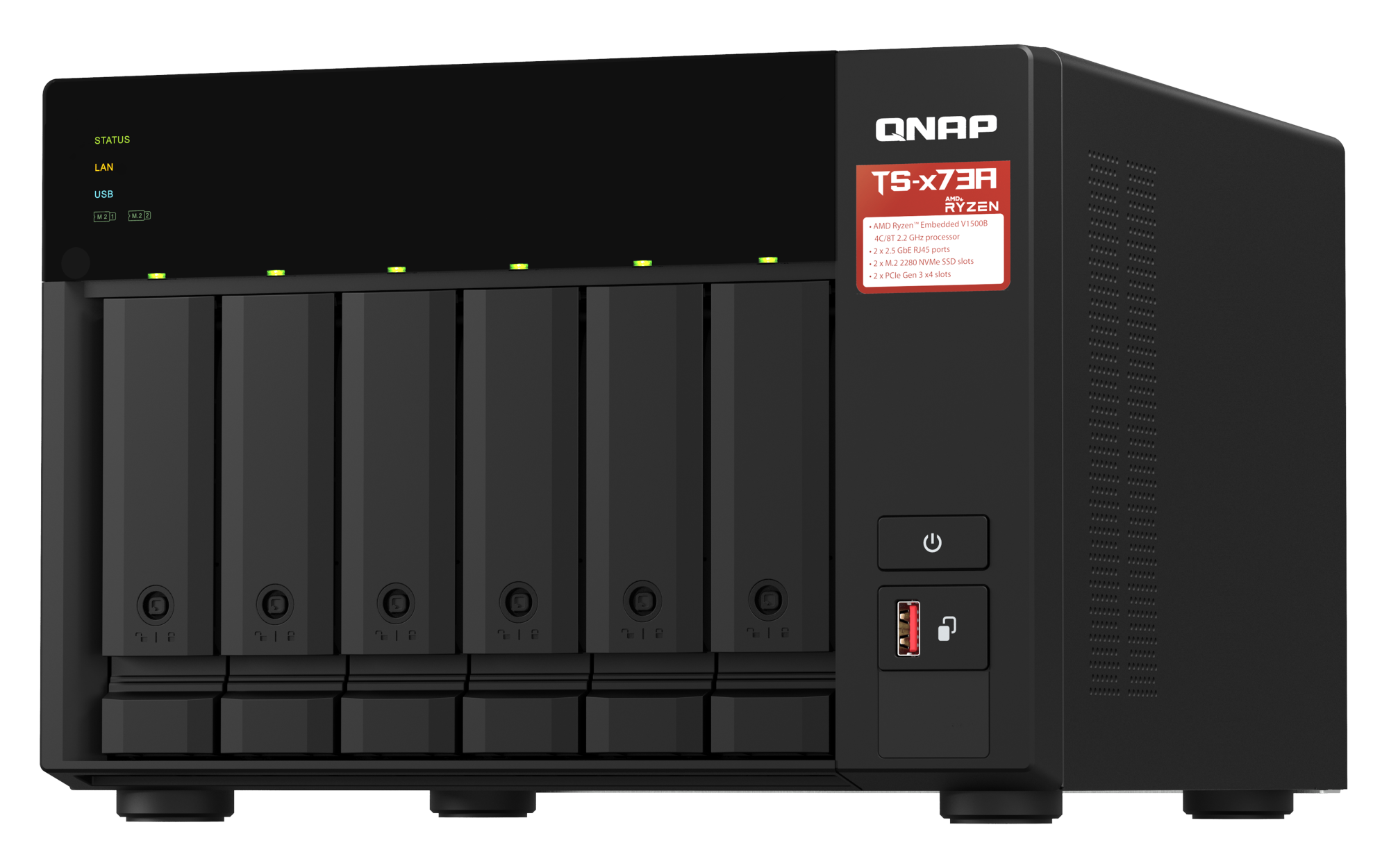

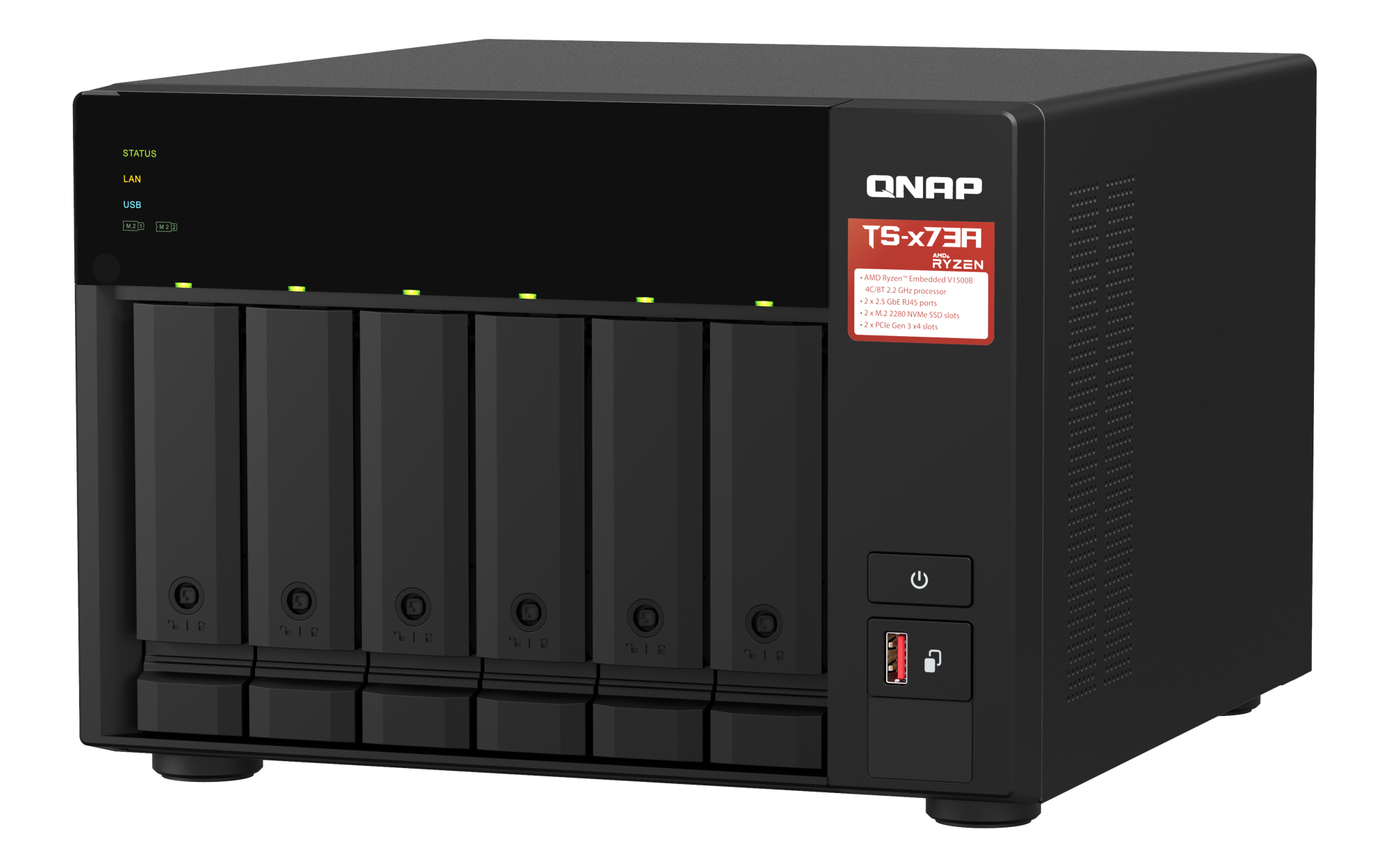

QNAP TS-673A-8G NAS Tower Ryzen Embedded V1500B 8 GB DDR4 24 TB HDD Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-673A-8G NAS Tower Ryzen Embedded V1500B 8 GB DDR4 24 TB HDD Black

Name: QNAP TS-673A-8G NAS Tower Ryzen Embedded V1500B 8 GB DDR4 24 TB HDD Black
Brand: QNAP
SKU: TS-673A-8G/24TB-IW

SKU: TS-673A-8G/24TB-IW

QNAP TS-673A-8G, NAS, Tower, Ryzen Embedded, V1500B, 8 GB, DDR4

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
1 Year

Drive
With drives

SKU
TS-673A-8G/24TB-IW

EAN
5050914193478

Design

Built-in speaker(s)
No

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Fan diameter
6 cm

Fan diameter 2
9.2 cm

Housing material
Metal

LED indicators
HDD, LAN, Power, SSD, Status, USB

Number of fans
3 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84714100

Memory

ECC
Yes

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
100,1000,2500,5000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Hot spare
Yes

Noise level
20.3 dB

On/off switch
Yes

Password authentication
Yes

Remotely operated
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, SSH, SSL/TLS

Type
NAS

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

PCI Express x4 (Gen 3.x) slots
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power consumption (sleep)
21.891 W

Power consumption (typical)
45.898 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Number of Cores
4

Number of processors supported
1

Processor
V1500B

Processor family
Ryzen Embedded

Processor frequency
2.2 GHz

Processor generation
AMD Ryzen Embedded V1000 Series

Processor manufacturer
AMD

Processor threads
8

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
6

Number of storage drives supported
6

Number of system drives installed
1

RAID levels
0, 1, 5, 6, 10, 50, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
M.2, Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

System drive capacity
5 GB

Total installed storage capacity
24 TB

Weight & dimensions

Depth
280.8 mm

Height
188.2 mm

Package weight
7.35 kg

Weight
5.78 kg

Width
264.3 mm

Description

QNAP TS-673A-8G. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 24 TB, Installed storage drive type: HDD

Small & Medium Business NAS Tower Black
Total installed storage capacity: 24 TB Number of storage drives supported: 6 HDD & SSD M.2, Serial ATA II, Serial ATA III
Ryzen Embedded V1500B 2.2 GHz
8 DDR4 Memory slots: 2 SO-DIMM ECC
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 250 W
