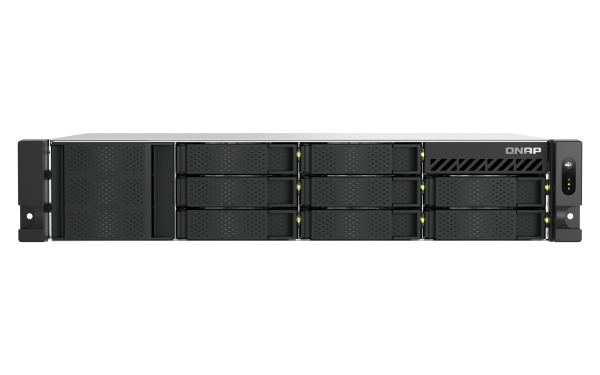

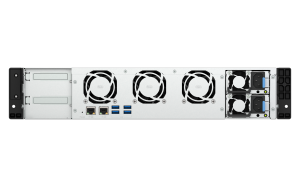

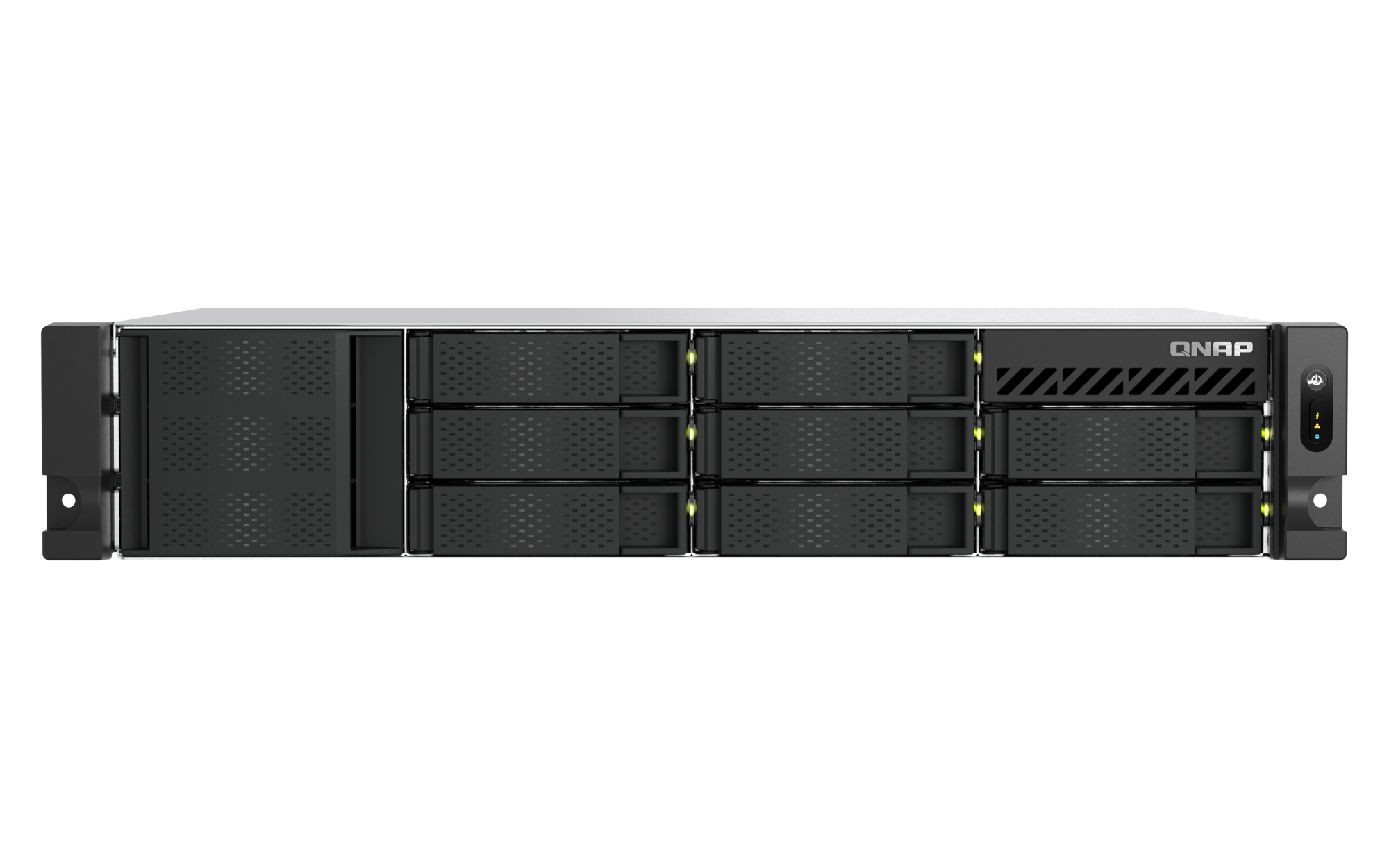

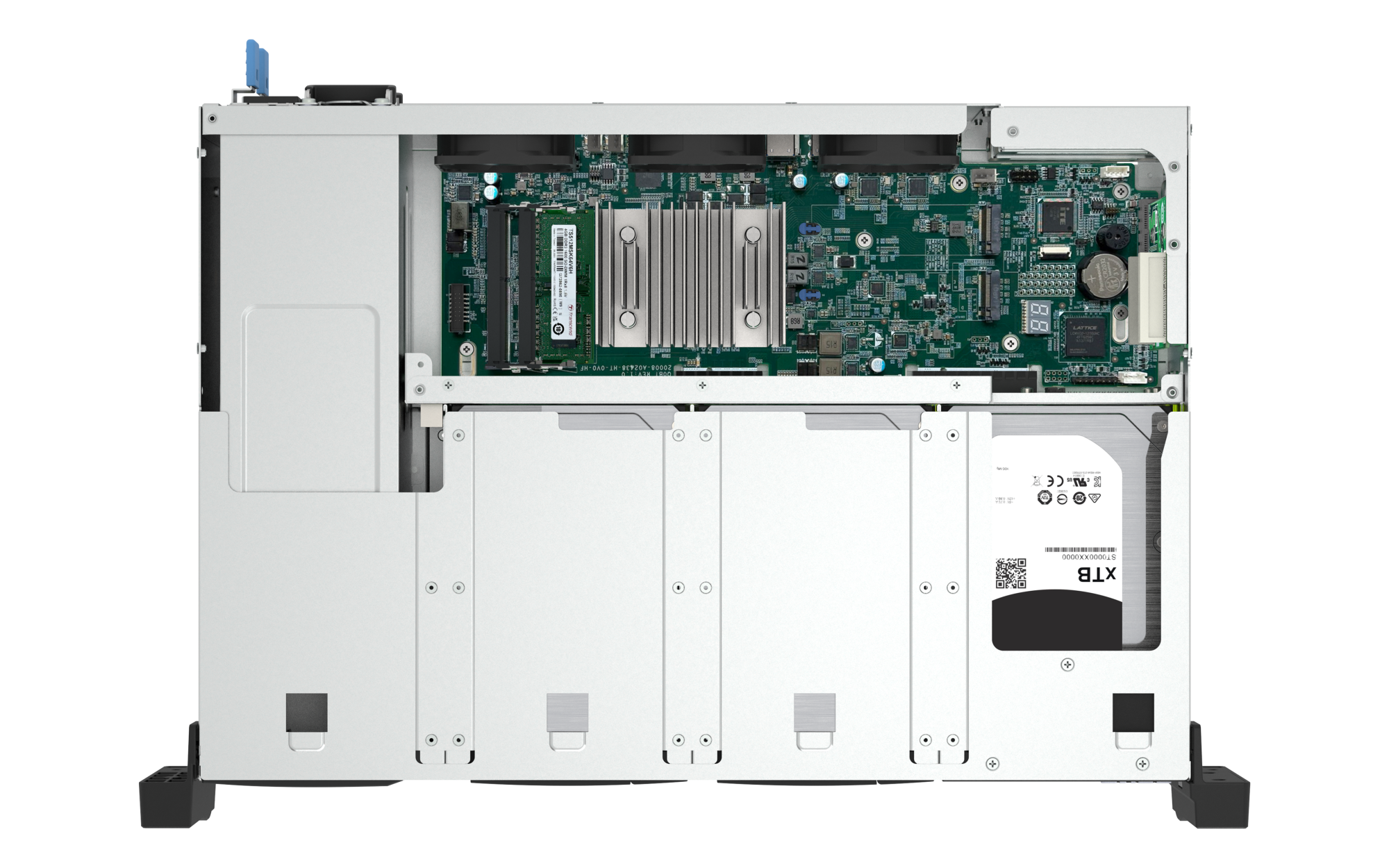

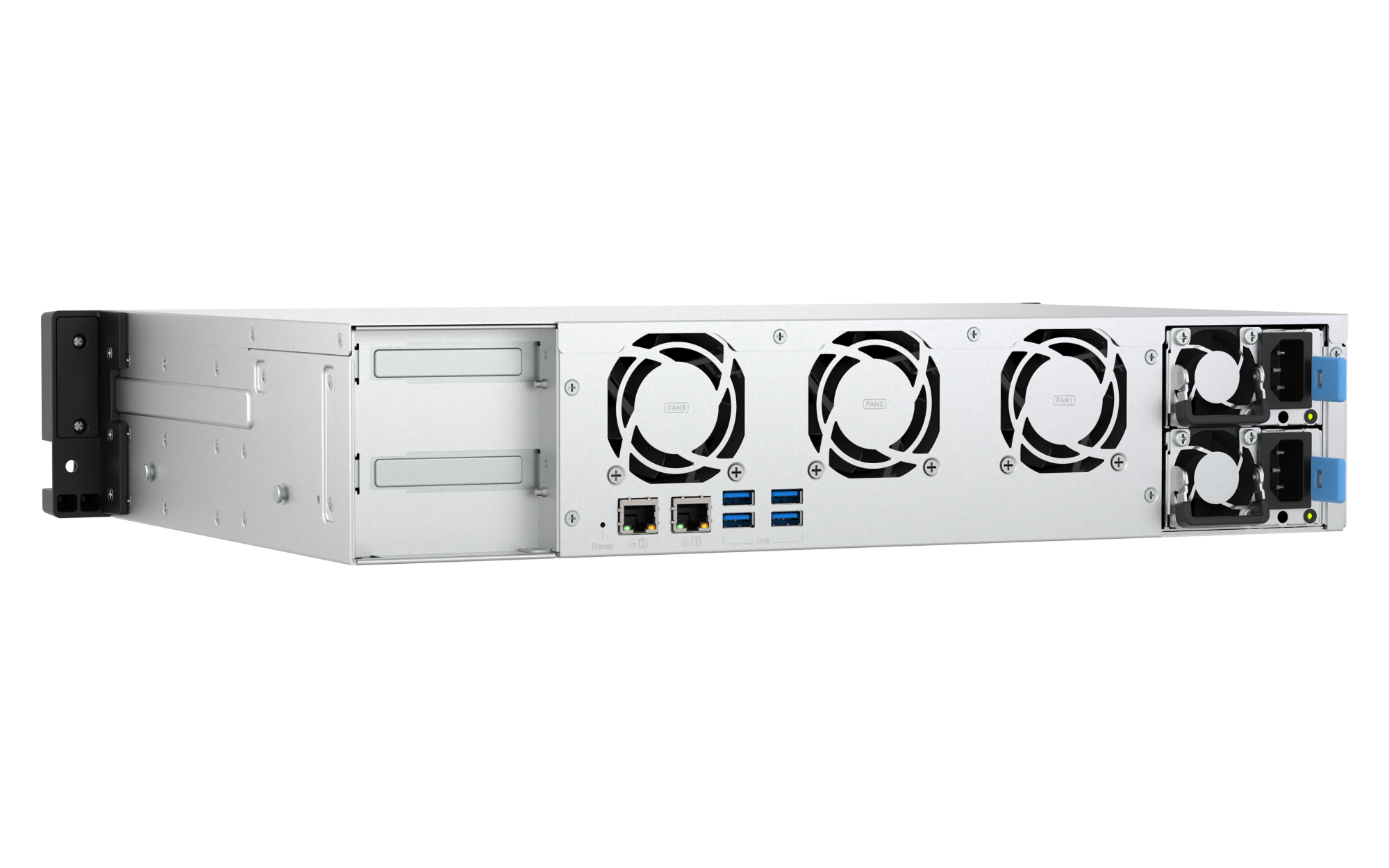

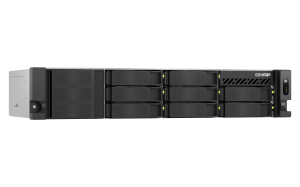

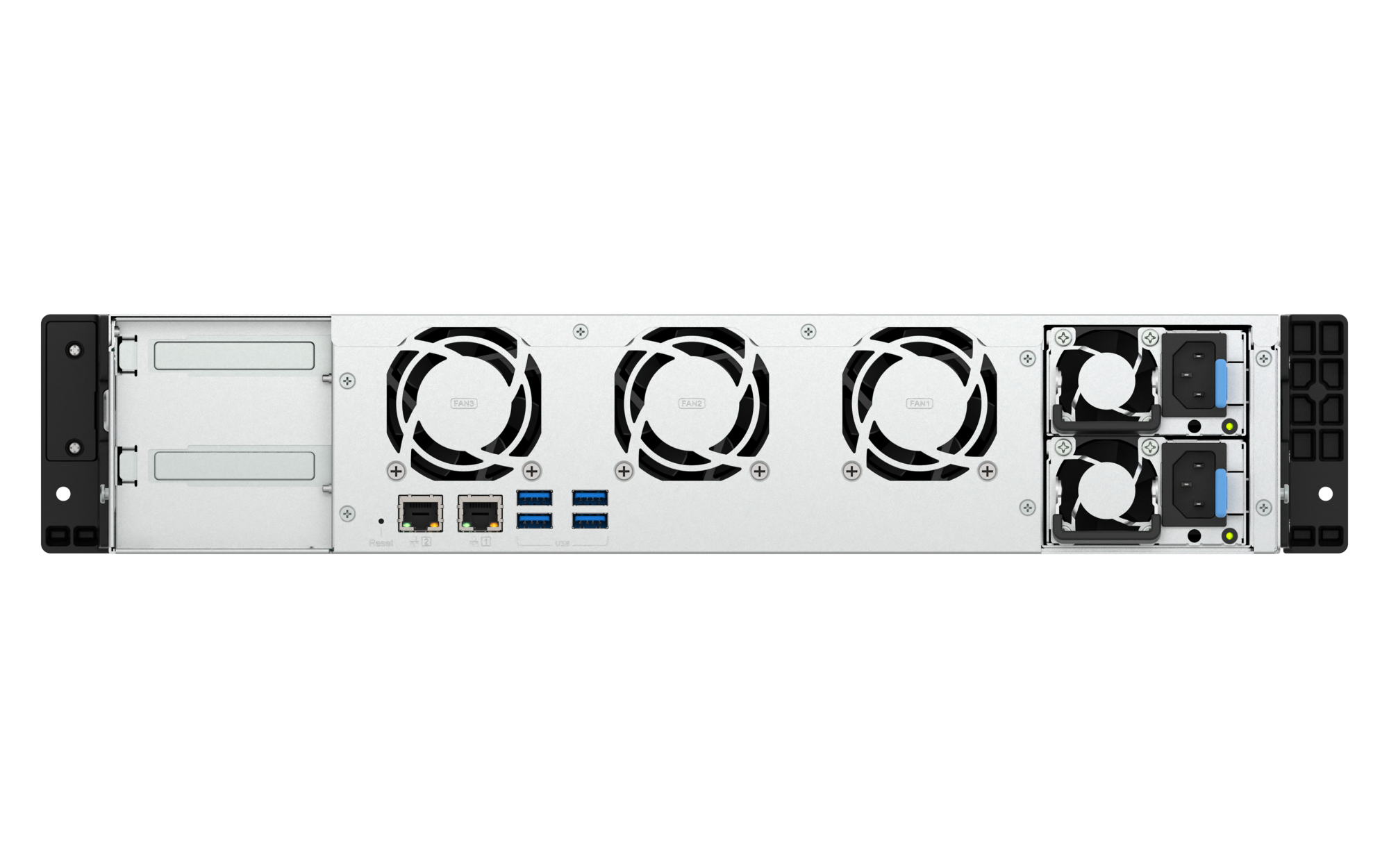

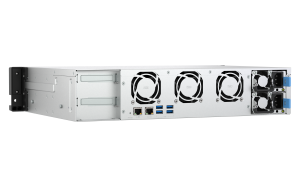

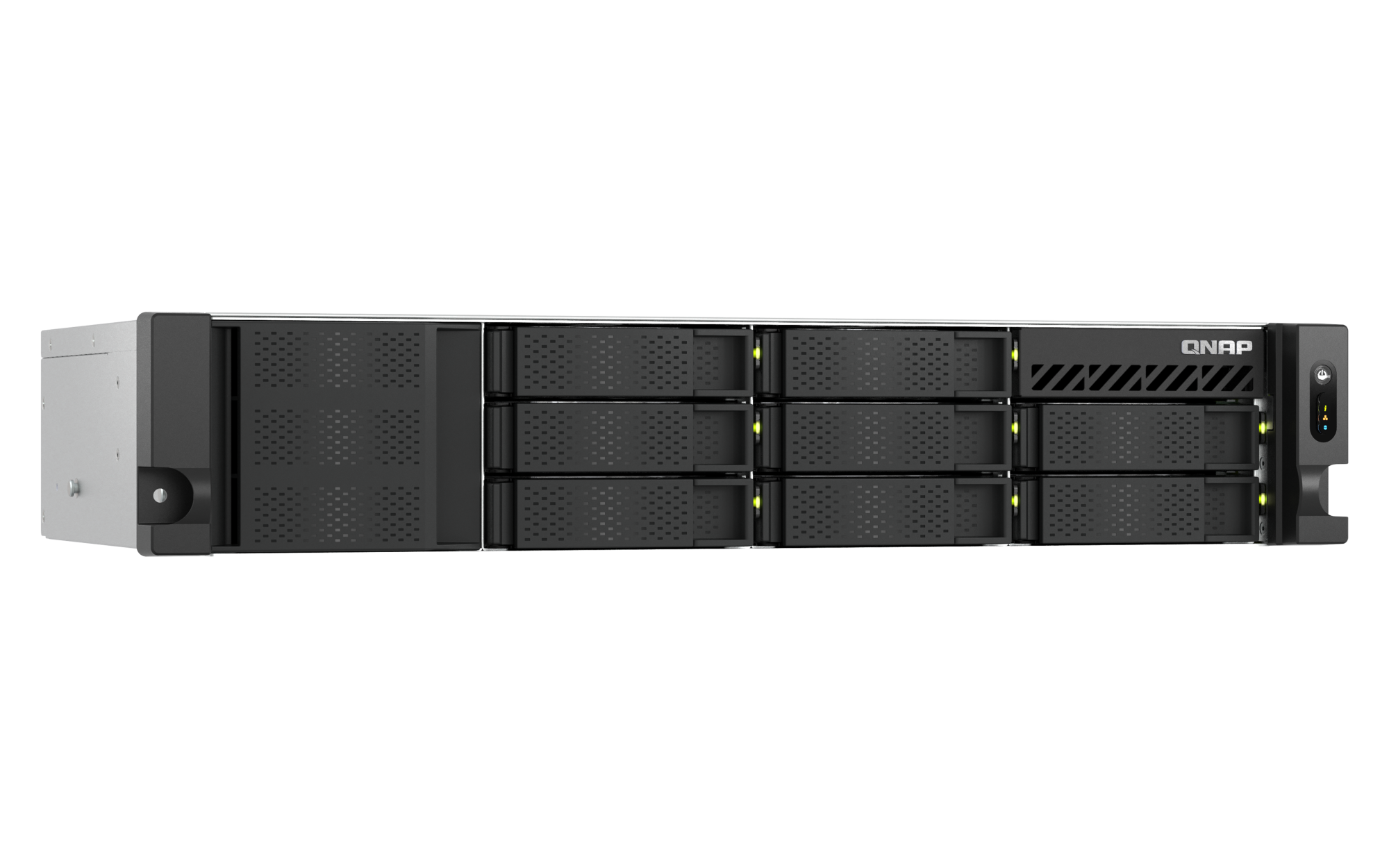

QNAP TS-855eU-RP-8G NAS Rack (2U) Intel Atom® C5125 8 GB DDR4 80 TB QuTS hero Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-855eU-RP-8G NAS Rack (2U) Intel Atom® C5125 8 GB DDR4 80 TB QuTS hero Black

Name: QNAP TS-855eU-RP-8G NAS Rack (2U) Intel Atom® C5125 8 GB DDR4 80 TB QuTS hero Black
Brand: QNAP
SKU: TS-855EU-RP-8G/80TB-REDPLUS

SKU: TS-855EU-RP-8G/80TB-REDPLUS

QNAP TS-855eU-RP-8G, NAS, Rack (2U), Intel Atom®, C5125, 8 GB, DDR4

hypertec

Quick Installation Guide (Download)

QTS 5.1.x User Guide (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

SKU
TS-855EU-RP-8G/80TB-REDPLUS

EAN
5050914227067

Bullet points

Design

Chassis type
Rack (2U)

Cooling type
Active

Fan diameter
6 cm

LED indicators
Yes

Number of fans
3 fan(s)

Product colour
Black

Memory

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP server
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Performance

Backup function
Yes

Buzzer
Yes

Device class
Small & Medium Business

Multilingual support
Yes

On/off switch
Yes

Reset button
Yes

Security algorithms
AES

Share folder access right management
Yes

Snapshot
Yes

Type
NAS

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

PCI Express x4 (Gen 3.x) slots
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
2

Power consumption (sleep)
54.331 W

Power consumption (typical)
78.73 W

Power supply location
Built-in

Power supply unit (PSU) capacity
300 W

Processor

Number of Cores
8

Processor
C5125

Processor cache
9 MB

Processor family
Intel Atom®

Processor frequency
2.8 GHz

Processor manufacturer
Intel

Processor threads
8

Software

Linux operating systems supported
CentOS 7.0, Ubuntu 14.04, Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Yes

Operating system installed
QuTS hero

Operating system version
h5.0.1

Windows operating systems supported
Windows 10, Windows 7, Windows 8

Storage

Hot-swap drive bays
Yes

Number of M.2 (M & B) slots
2

Number of storage drives supported
8

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, 60

RAID rebuild
Yes

RAID support
Yes

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
80 TB

Weight & dimensions

Depth
297.4 mm

Height
88.6 mm

Width
432 mm

Description

QNAP TS-855eU-RP-8G. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel Atom®, Processor model: C5125, Processor frequency: 2.8 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 80 TB. Operating system installed: QuTS hero

Small & Medium Business NAS Rack (2U) Black
QuTS hero h5.0.1
Total installed storage capacity: 80 TB Number of storage drives supported: 8 HDD & SSD Serial ATA II, Serial ATA III
Intel Atom® C5125 2.8 GHz
8 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
300 W
Compact, space saving: The TS-855eU-RP has a depth of only 11.7 inches (297.4 mm) and is perfectly suited for installation in a compact rack, or places with a lot of cabling
Flexible storage expansion: Connect TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855eU-RP for adding up to 48 additional drive capacity to match your business growth
Dual 2.5GbE connectivity: Features two 2.5GbE ports (backwards compatible with 1G/100M). Supports port trunking for enhanced performance and fault tolerance
PCIe expandability: Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fibre Channel cards
Optimized SSD performance: Dual M.2 PCIe NVMe slots enable SSD caching, SSD storage pools, or Qtier™ auto-tiered storage
Virtual machines and containers: Centralize your virtualization storage, and host multiple virtual machines and containerized apps
