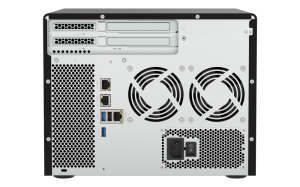

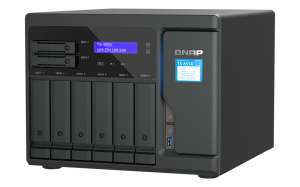

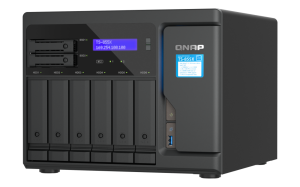

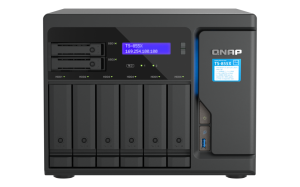

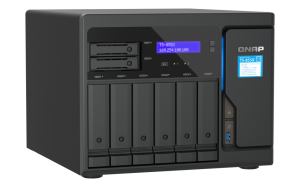

QNAP TS-855X NAS Tower Intel Atom® C5125 8 GB DDR4 132 TB HDD QNAP QTS Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-855X NAS Tower Intel Atom® C5125 8 GB DDR4 132 TB HDD QNAP QTS Black

Name: QNAP TS-855X NAS Tower Intel Atom® C5125 8 GB DDR4 132 TB HDD QNAP QTS Black
Brand: QNAP
SKU: TS-855X-8G/132TB-HC

SKU: TS-855X-8G/132TB-HC

QNAP TS-855X, NAS, Tower, Intel Atom®, C5125, 8 GB, DDR4

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

SKU
TS-855X-8G/132TB-HC

EAN
5050914247027

Bullet points

Point
A reliable backup center for your PC/Macs, virtual machines, containers, cloud data, and SaaS data

Dual M.2 PCIe NVMe slots enable SSD caching, SSD storage pools, or Qtier™ auto-tiered storage

Design

Built-in display
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Display type
LCD

Fan diameter
8 cm

Fan diameter 2
9 cm

LED indicators
HDD, LAN, M.2, Power, SSD, Status, USB

Number of fans
3 fan(s)

Product colour
Black

Memory

ECC
No

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
128 GB

Memory clock speed
2933 MHz

Memory form factor
UDIMM

Memory Installed
8 GB

Memory slots
4

Network

Copper ethernet cabling technology
10GBASE-T

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
1000,2500,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Warranty period
3 year(s)

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
56

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Hot spare
Yes

Management protocols
SNMP v2, v3

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH

Snapshot
Yes

System log
Yes

Type
NAS

USB copy function
Yes

Ports & interfaces

Concurrent connections
2500

Ethernet LAN (RJ-45) ports
3

PCI Express x4 (Gen 3.x) slots
2

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB port
Yes

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Fan voltage
12 V

Power consumption (typical)
86.96 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Number of Cores
8

Processor
C5125

Processor family
Intel Atom®

Processor frequency
2.8 GHz

Processor manufacturer
Intel

Processor threads
8

Software

Linux operating systems supported
CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04

Operating system installed
QNAP QTS

Operating system version
5.1.7

Other operating systems supported
IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Storage

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
6

Number of storage drives supported
8

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50

RAID rebuild
Yes

RAID support
Yes

Storage drive interface
Serial ATA III

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
132 TB

Weight & dimensions

Depth
319.8 mm

Height
225 mm

Width
292.9 mm

Description

QNAP TS-855X. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Intel Atom®, Processor model: C5125, Processor frequency: 2.8 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 132 TB, Installed storage drive type: HDD. Operating system installed: QNAP QTS

Small & Medium Business NAS Tower Black
QNAP QTS 5.1.7
Total installed storage capacity: 132 TB Number of storage drives supported: 8 HDD & SSD Serial ATA II, Serial ATA III
Intel Atom® C5125 2.8 GHz
8 DDR4 2933 MHz Memory slots: 4 UDIMM
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active LCD
Backup features: Cloud, iSCSI LUN 250 W
Dual-port 2.5GbE and single-port 10GbE connectivity. The dual 2.5GbE ports also support SMB Multichannel for up to 5 Gbps!
Connect TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855X for adding up to 48 additional drive capacity to match your business growth
Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fibre Channel cards
Dual M.2 PCIe NVMe slots enable SSD caching, SSD storage pools, or Qtier™ auto-tiered storage
Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV
A reliable backup center for your PC/Macs, virtual machines, containers, cloud data, and SaaS data
