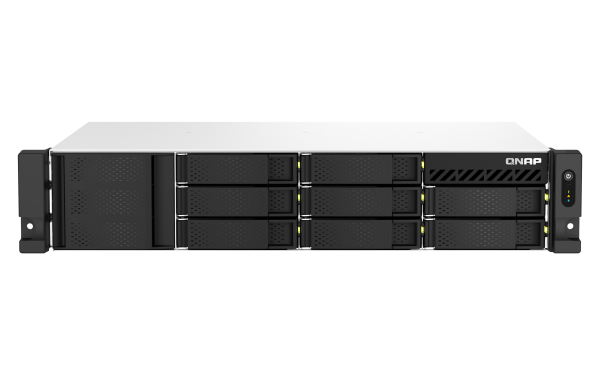

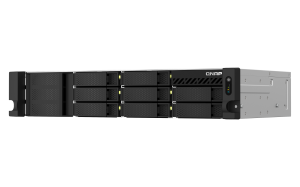

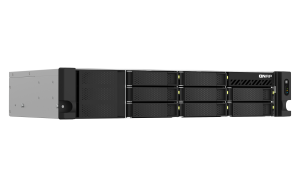

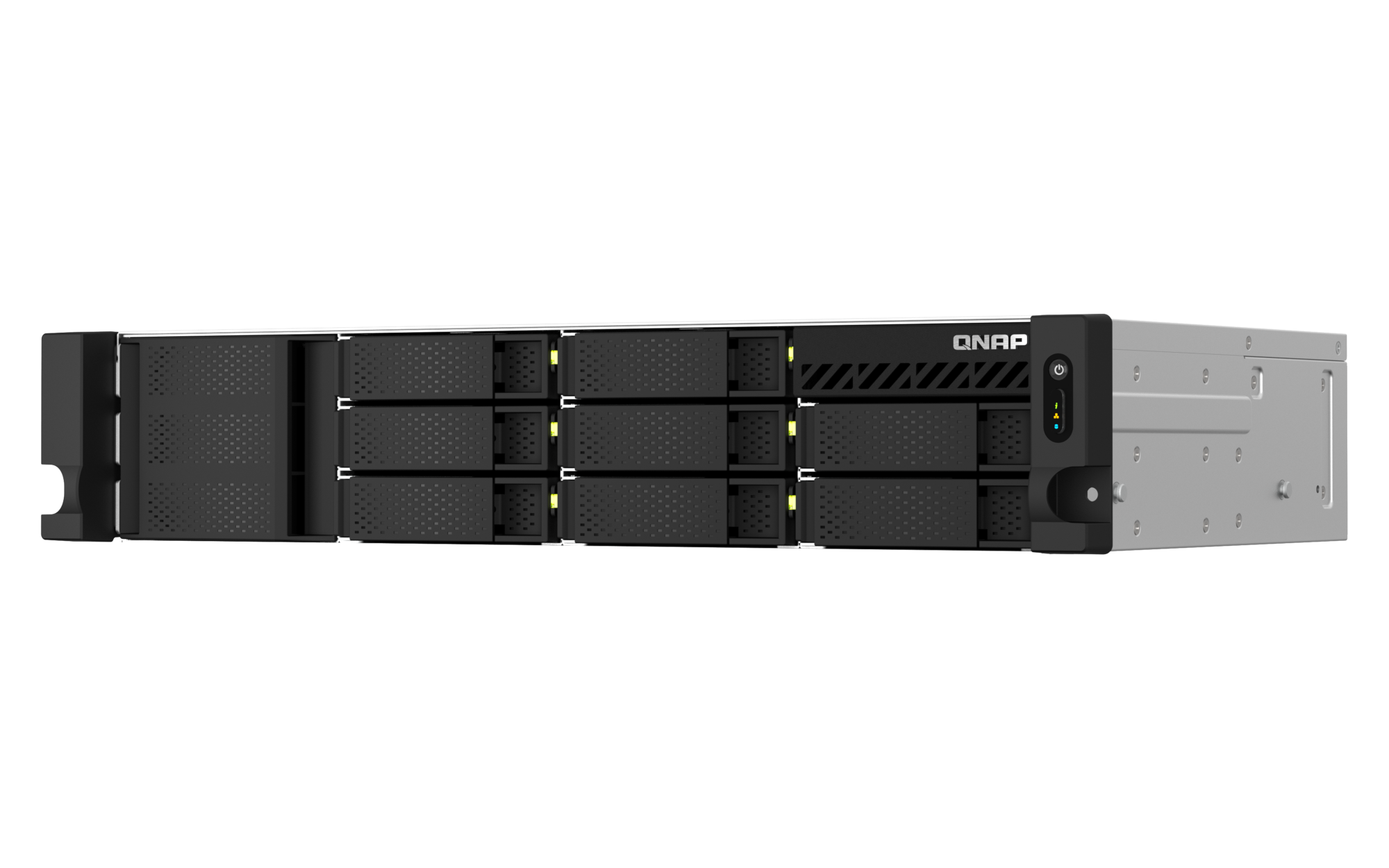

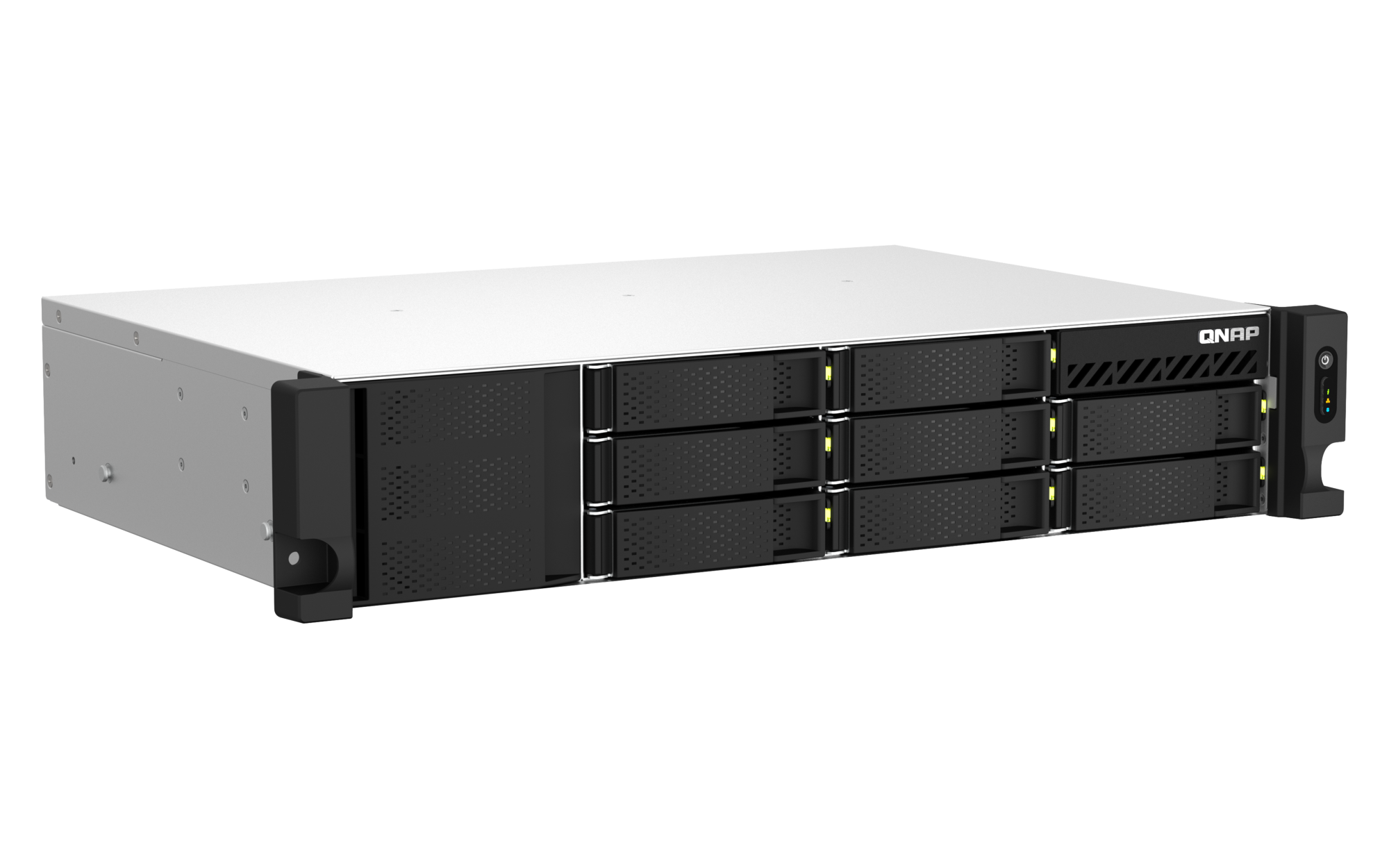

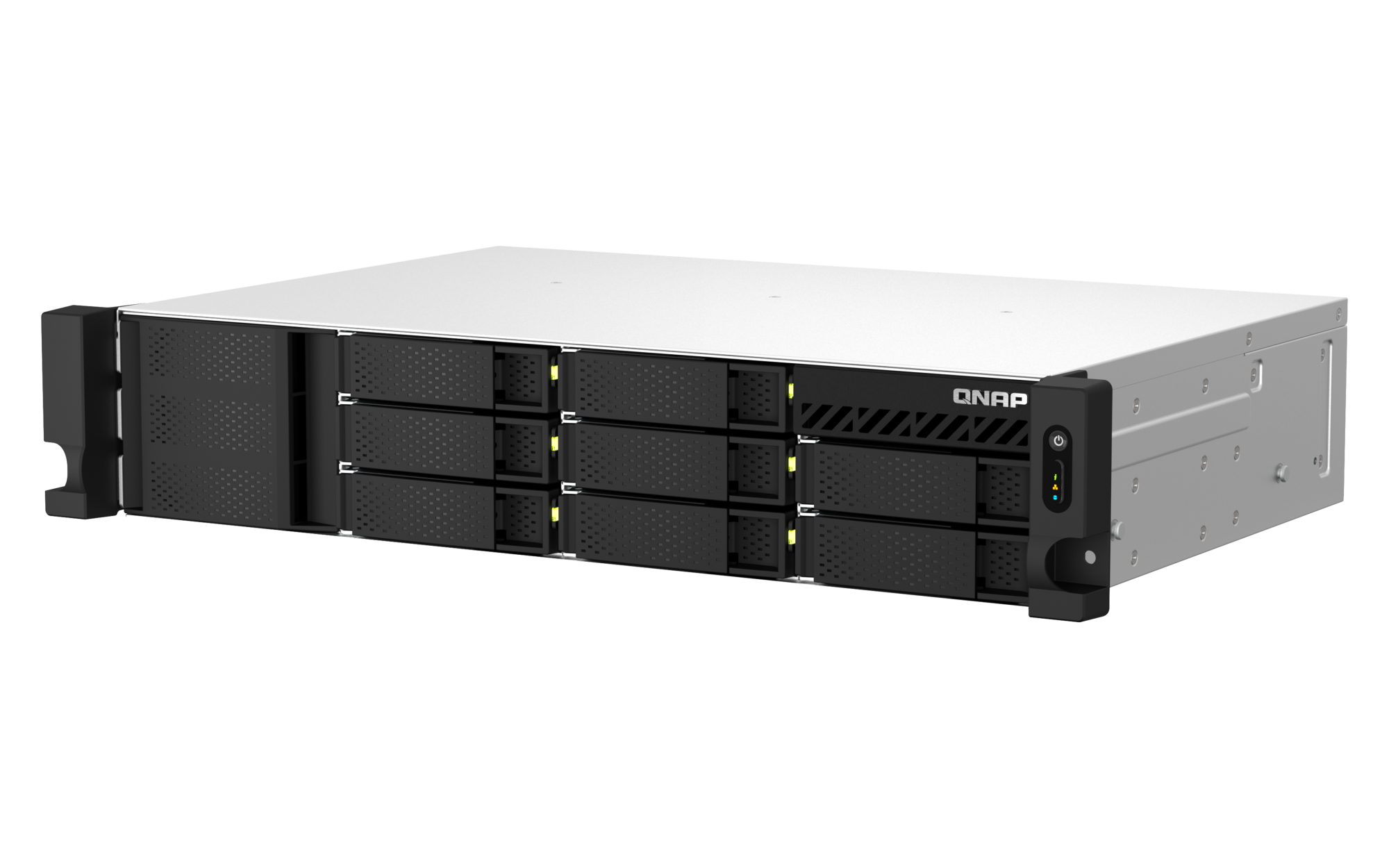

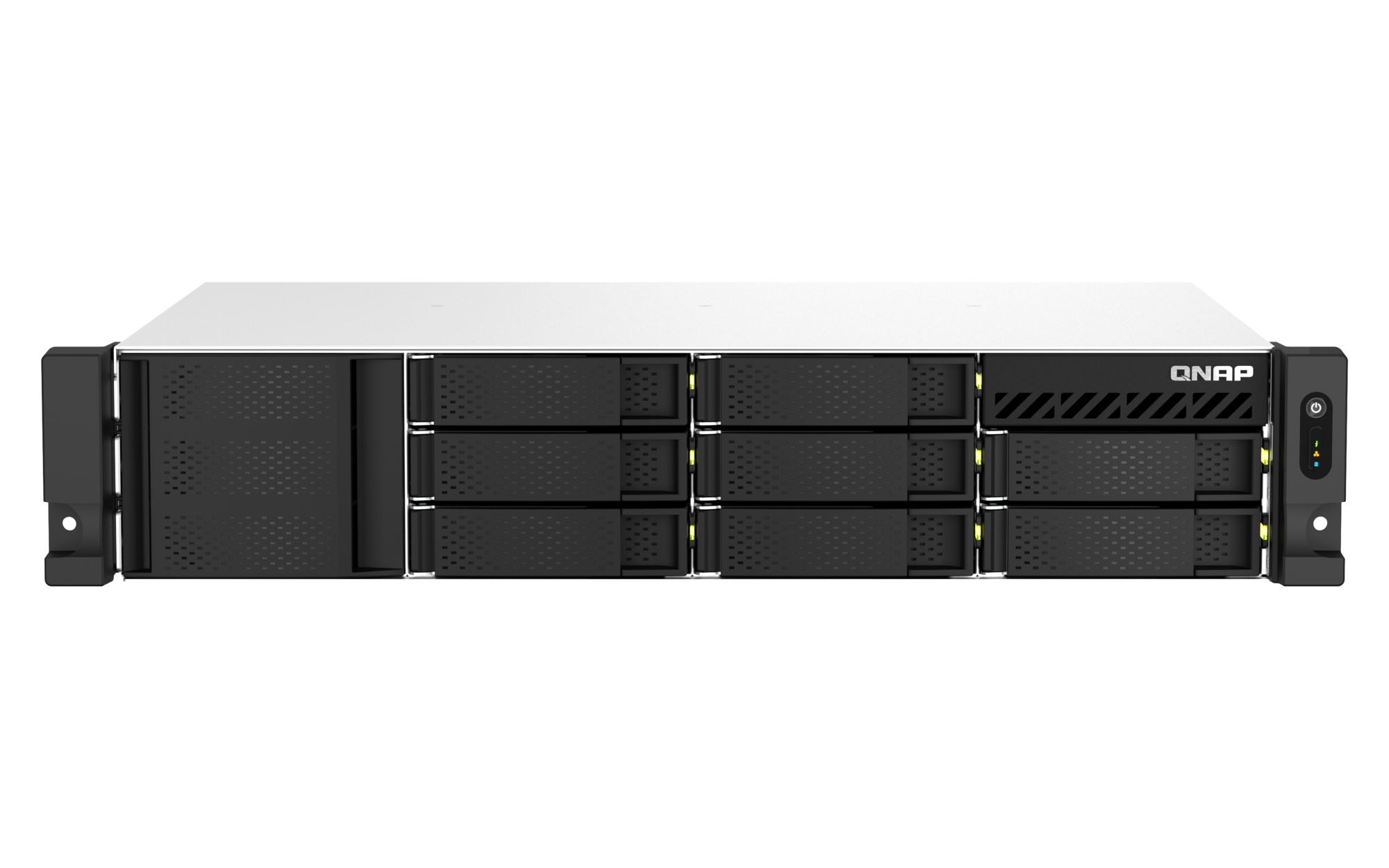

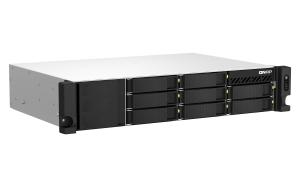

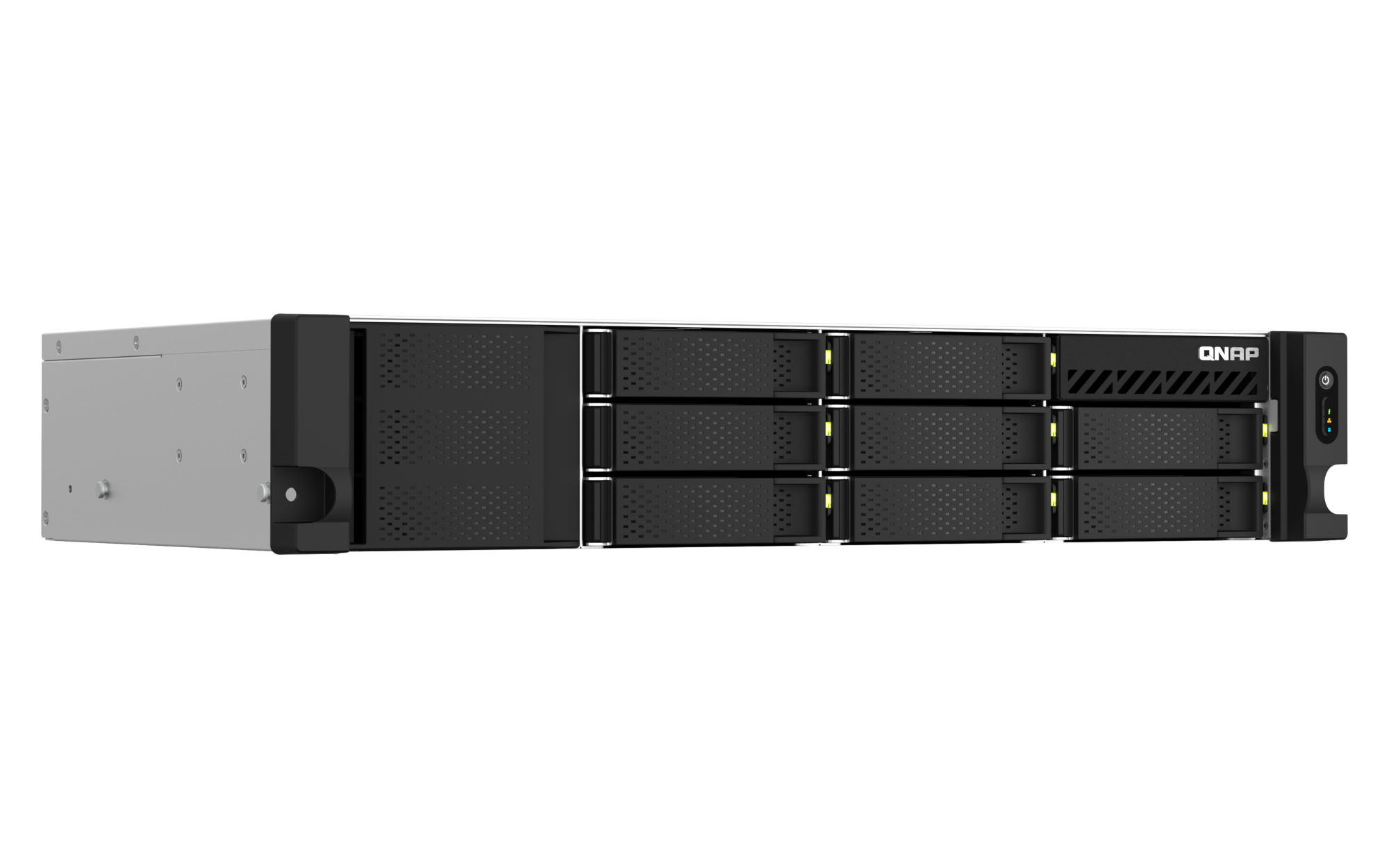

QNAP TS-873AeU-RP NAS Rack (2U) Ryzen Embedded V1500B 4 GB DDR4 64 TB HDD QuTS hero Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-873AeU-RP NAS Rack (2U) Ryzen Embedded V1500B 4 GB DDR4 64 TB HDD QuTS hero Black

Name: QNAP TS-873AeU-RP NAS Rack (2U) Ryzen Embedded V1500B 4 GB DDR4 64 TB HDD QuTS hero Black
Brand: QNAP
SKU: TS-873AEU-RP-4G/64TB-EXOS

SKU: TS-873AEU-RP-4G/64TB-EXOS

QNAP TS-873AeU-RP, NAS, Rack (2U), Ryzen Embedded, V1500B, 4 GB, DDR4

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

Drive
With drives

SKU
TS-873AEU-RP-4G/64TB-EXOS

EAN
5050914189990

Bullet points

Design

Chassis type
Rack (2U)

Cooling type
Active

Fan diameter
6 cm

LED indicators
HDD, LAN, Power, Status, USB

Number of fans
3 fan(s)

Product colour
Black

Memory

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
SO-DIMM

Memory Installed
4 GB

Memory slots
2

Network

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
56

Power cables quantity
2

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Disk scan
Yes

Hot spare
Yes

Management protocols
SNMP v2/v3

Multilingual support
Yes

On/off switch
Yes

Password authentication
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Ports & interfaces

Concurrent connections
2000

Ethernet LAN (RJ-45) ports
2

PCI Express x8 (Gen 3.x) slots
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
2

Power consumption (HDD standby)
32.19 W

Power consumption (typical)
58.14 W

Power supply location
Built-in

Power supply unit (PSU) capacity
300 W

Redundant power supply (RPS) support
Yes

Processor

Number of Cores
4

Processor
V1500B

Processor family
Ryzen Embedded

Processor frequency
2.2 GHz

Processor generation
AMD Ryzen Embedded V1000 Series

Processor manufacturer
AMD

Processor threads
8

Software

Linux operating systems supported
CentOS 7.0, Ubuntu 14.04

Operating system installed
QuTS hero

Operating system version
5.0.0

Other operating systems supported
Solaris 10

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Windows operating systems supported
Windows 10, Windows 8, Windows 7, Windows 11

Storage

Disk roaming
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
8

Number of storage drives supported
8

Online RAID expansion
Yes

RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive capacity
8 TB

Storage drive interface
Serial ATA II, Serial ATA III

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
64 TB

Weight & dimensions

Depth
297.4 mm

Height
89 mm

Width
482 mm

Description

QNAP TS-873AeU-RP. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 64 TB, Installed storage drive type: HDD. Operating system installed: QuTS hero

Small & Medium Business NAS Rack (2U) Black
QuTS hero 5.0.0
Total installed storage capacity: 64 TB Number of storage drives supported: 8 HDD & SSD Serial ATA II, Serial ATA III
Ryzen Embedded V1500B 2.2 GHz
4 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 300 W
Dual-2.5GbE connectivity: Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking
PCIe expandability: Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel
Optimized SSD performance: Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier™ and SSD caching technology
Hybrid cloud storage: Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data
Virtual machine applications: Host multiple virtual machines and containers to run a wide range of applications
2U Short depth design: The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling
