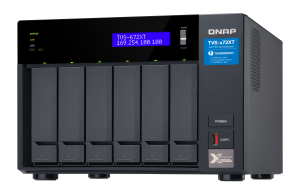

QNAP TVS-672XT NAS Tower Intel® Core™ i3 i3-8100T 8 GB DDR4 108 TB HDD QuTS hero Black

Roll over image to zoom inClick to Open expanded view

QNAP TVS-672XT NAS Tower Intel® Core™ i3 i3-8100T 8 GB DDR4 108 TB HDD QuTS hero Black

Name: QNAP TVS-672XT NAS Tower Intel® Core™ i3 i3-8100T 8 GB DDR4 108 TB HDD QuTS hero Black
Brand: QNAP
SKU: TVS-672XT-I3-8G/120TB-IWP

SKU: TVS-672XT-I3-8G/120TB-IWP

Log In to View Pricing

QNAP TVS-672XT, NAS, Tower, Intel® Core™ i3, i3-8100T, 8 GB, DDR4

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

Drive
With drives

SKU
TVS-672XT-I3-8G/120TB-IWP

Design

Built-in display
Yes

Built-in speaker(s)
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Display type
LCD

Fan diameter
9.2 cm

Fan diameter 2
6 cm

LED indicators
HDD, LAN, Status, USB

Number of built-in speakers
1

Number of fans
4 fan(s)

Product colour
Black

Memory

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Load balancing system
Yes

Wake-on-LAN ready
Yes

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Power cables quantity
1

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari

Built-in FTP server
Yes

Built-in iTunes server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Disk scan
Yes

Hot spare
Yes

Management protocols
SNMP v2/3

Multilingual support
Yes

Noise level
23.8 dB

On/off switch
Yes

Remotely operated
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH

Share folder
CIFS/SMB

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

Web-based management
Yes

Ports & interfaces

Concurrent connections
2500

Ethernet LAN (RJ-45) ports
3

HDMI ports
1

HDMI version
2.0

PCI Express x16 (Gen 3.x) slots
1

PCI Express x4 (Gen 3.x) slots
1

Thunderbolt 3 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
1

Power consumption (HDD standby)
26.52 W

Power consumption (typical)
45.6 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Number of Cores
4

Number of processors supported
1

On-board graphics card model
Intel® UHD Graphics 630

Processor
i3-8100T

Processor cache
6 MB

Processor family
Intel® Core™ i3

Processor frequency
3.1 GHz

Processor generation
8th gen Intel® Core™ i3

Processor manufacturer
Intel

Processor threads
4

Software

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Operating system installed
QuTS hero

Operating system version
h5.0.1

Windows operating systems supported
Yes

Storage

Auto-rebuild
Yes

Bad block scan
Yes

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives supported
6

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
M.2, Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
108 TB

Weight & dimensions

Depth
279.6 mm

Height
188.2 mm

Width
264.3 mm

Description

QNAP TVS-672XT. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Intel® Core™ i3, Processor model: i3-8100T, Processor frequency: 3.1 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 108 TB, Installed storage drive type: HDD. Operating system installed: QuTS hero

Small & Medium Business NAS Tower Black
QuTS hero h5.0.1
Total installed storage capacity: 108 TB Number of storage drives supported: 6 HDD & SSD M.2, Serial ATA II, Serial ATA III
Intel® Core™ i3 i3-8100T 3.1 GHz Intel® UHD Graphics 630
8 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active LCD
Backup features: Cloud, iSCSI LUN 250 W
High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing
5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices
PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance
Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency
4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
