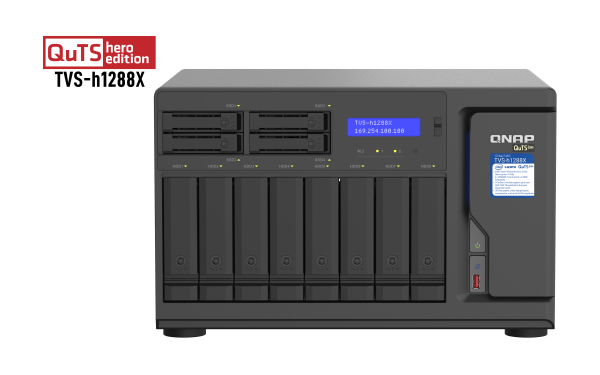

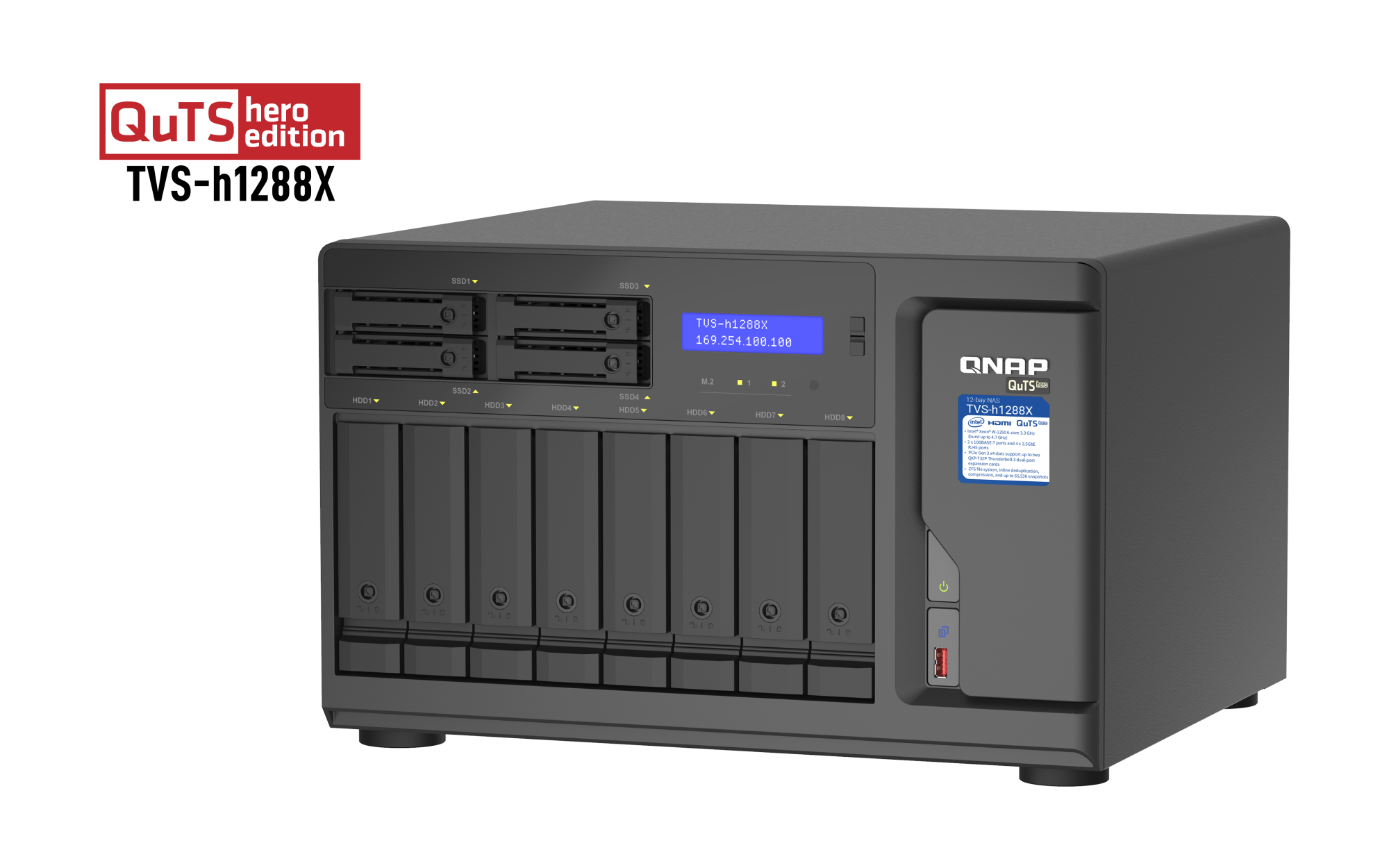

QNAP TVS-h1288X NAS Tower Intel® Xeon® W-1250 16 GB DDR4 112 TB HDD QuTS hero Black

Roll over image to zoom inClick to Open expanded view

QNAP TVS-h1288X NAS Tower Intel® Xeon® W-1250 16 GB DDR4 112 TB HDD QuTS hero Black

Name: QNAP TVS-h1288X NAS Tower Intel® Xeon® W-1250 16 GB DDR4 112 TB HDD QuTS hero Black
Brand: QNAP
SKU: TVS-H1288X-W1250-16G/112TBREDPLU

SKU: TVS-H1288X-W1250-16G/112TBREDPLU

QNAP TVS-h1288X, NAS, Tower, Intel® Xeon®, W-1250, 16 GB, DDR4

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

Drive
With drives

SKU
TVS-H1288X-W1250-16G/112TBREDPLU

EAN
5050914184469

Design

Built-in display
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Display type
LCD

Fan diameter
8 cm

Fan diameter 2
9.7 cm

LED indicators
HDD, LAN, SSD, Status, USB

Number of fans
5 fan(s)

Product colour
Black

Memory

ECC
Yes

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
128 GB

Memory form factor
UDIMM

Memory Installed
16 GB

Memory slots
4

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
100,1000,2500,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Load balancing system
Yes

Wake-on-LAN ready
Yes

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
48

Power cables quantity
1

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, USB drive, iSCSI LUN

Backup function
Yes

Browser supported
Safari, Google Chrome, Internet Explorer, Mozilla Firefox

Built-in BitTorrent client
Yes

Built-in FTP server
Yes

Buzzer
Yes

Device class
Large Enterprise Business

Hot spare
Yes

Management protocols
SNMP v2/v3

Multilingual support
Yes

Noise level
26 dB

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Third-party support
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

USB copy function
Yes

Web-based management
Yes

Ports & interfaces

Concurrent connections
10000

Ethernet LAN (RJ-45) ports
6

HDMI ports
1

HDMI version
1.4b

PCI Express x4 (Gen 3.x) slots
2

PCI Express x8 (Gen 3.x) slots
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Power consumption (HDD standby)
85.216 W

Power consumption (typical)
97.492 W

Power supply location
Built-in

Power supply unit (PSU) capacity
550 W

Processor

CPU configuration (max)
1

Number of Cores
6

On-board graphics card model
Intel UHD Graphics P630

Processor
W-1250

Processor boost frequency
4.7 GHz

Processor cache
12 MB

Processor family
Intel® Xeon®

Processor frequency
3.3 GHz

Processor manufacturer
Intel

Processor threads
12

Processor special features

Embedded options available
No

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Clear Video Technology
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Operating system installed
QuTS hero

Operating system version
h5.0.0

Other operating systems supported
Yes

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Windows operating systems supported
Windows 10, Windows 7, Windows 8

Storage

Auto-rebuild
Yes

Bad block scan
Yes

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
8

Number of storage drives supported
12

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive capacity
14 TB

Storage drive interface
Serial ATA II, Serial ATA III

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
112 TB

Weight & dimensions

Depth
319.8 mm

Height
234.6 mm

Width
369.9 mm

Description

QNAP TVS-h1288X. Type: NAS. Chassis type: Tower. Device class: Large Enterprise Business. Processor family: Intel® Xeon®, Processor model: W-1250, Processor frequency: 3.3 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Total installed storage capacity: 112 TB, Installed storage drive type: HDD. Operating system installed: QuTS hero

Large Enterprise Business NAS Tower Black
QuTS hero h5.0.0
Total installed storage capacity: 112 TB Number of storage drives supported: 12 HDD & SSD Serial ATA II, Serial ATA III
Intel® Xeon® W-1250 3.3 GHz Intel UHD Graphics P630
16 DDR4 Memory slots: 4 UDIMM ECC
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active LCD
Backup features: Cloud, USB drive, iSCSI LUN 550 W
Attain quad-port Thunderbolt™ 3 connectivity by installing two QXP-T32P expansion cards in the PCIe Gen 3 x4 slots
Two 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer
PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance
4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz)
Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
