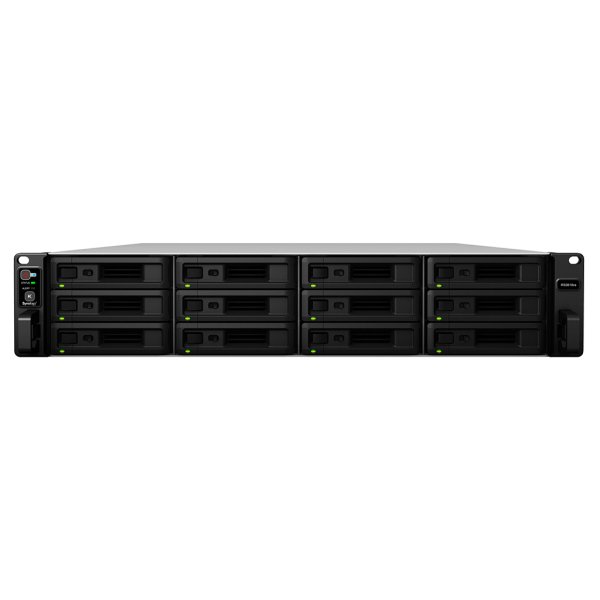

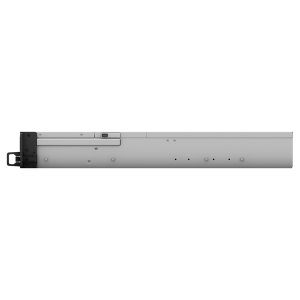

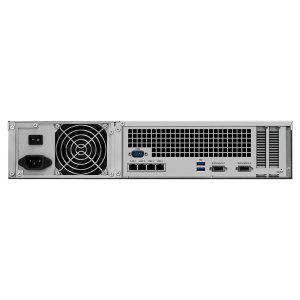

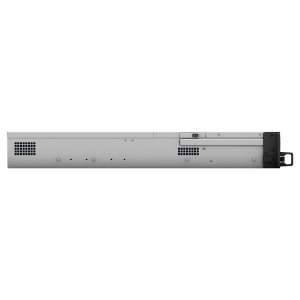

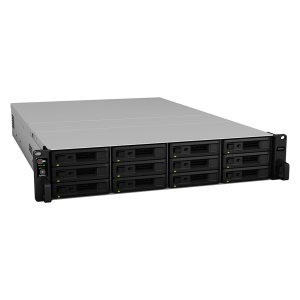

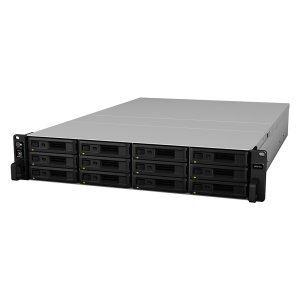

Synology RackStation RS3618XS NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 4000 TB HDD DiskStation Manager Black

Roll over image to zoom inClick to Open expanded view

Synology RackStation RS3618XS NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 4000 TB HDD DiskStation Manager Black

Name: Synology RackStation RS3618XS NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 4000 TB HDD DiskStation Manager Black
Brand: Synology
SKU: RS3618XS-48TB-IWP

SKU: RS3618XS-48TB-IWP

Non-Cancellable, Non-Returnable

Log In to View Pricing

ETA 10 days

Synology RackStation RS3618XS, NAS, Rack (2U), Intel® Xeon® D, D-1521, 8 GB, DDR4

ETA 10 days

Add to compare

Product Properties

Manufacturer
Synology

Warranty
5 Years

Drive
With drives

SKU
RS3618XS-48TB-IWP

EAN
5050914072377

Bullet points

Design

Chassis type
Rack (2U)

Cooling type
Active

Fan diameter
8 cm

LED indicators
HDD, Power

Number of fans
4 fan(s)

Product colour
Black

Memory

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory clock speed
2133 MHz

Memory Installed
8 GB

Memory slots
4

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

iSCSI support
Yes

Link aggregation
Yes

Supported network protocols
CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)

Wake-on-LAN ready
Yes

Wi-Fi
No

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
5 - 35 °C

Storage temperature (T-T)
-20 - 60 °C

Other features

Certification
EAC, VCCI, CCC, RCM, FCC, CE, BSMI

Compliance certificates
RoHS

Processor ARK ID
91202

Packaging content

Cables included
AC

Quick installation guide
Yes

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Chrome, Firefox, Internet Explorer 10, Safari

Device class
Small & Medium Business

Hot spare
Yes

Multilingual support
Yes

Noise level
50.2 dB

Number of users
16000 user(s)

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Share folder
CIFS/AFP/FTP

System log
Yes

Type
NAS

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Fiber ports quantity
0

PCI Express x8 (Gen 3.x) slots
2

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power consumption (HDD standby)
55.05 W

Power consumption (typical)
142.76 W

Power supply location
Built-in

Power supply unit (PSU) capacity
500 W

Processor

Conflict-Free processor
Yes

CPU configuration (max)
1

ECC supported by processor
Yes

Maximum internal memory supported by processor
128 GB

Number of Cores
4

PCI Express configurations
1x16, 1x4, 1x8

PCI Express slots version
2.0, 3.0

Processor
D-1521

Processor boost frequency
2.7 GHz

Processor cache
6 MB

Processor code
SR2DF

Processor codename
Broadwell

Processor family
Intel® Xeon® D

Processor frequency
2.4 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
37.5 x 37.5 mm

Processor series
Intel Xeon D-1500

Processor socket
BGA 1667

Processor threads
8

Scalability
1S

Stepping
V2

Thermal Design Power (TDP)
45 W

Processor special features

Embedded options available
No

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Enhanced Halt State
Yes

Intel Secure Key Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Maximum number of PCI Express lanes
32

Memory channels supported by processor
Dual

Memory types supported by processor
DDR3-SDRAM, DDR4-SDRAM

Thermal Monitoring Technologies
Yes

UART
Yes

Software

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra

Operating system installed
DiskStation Manager

Server operating systems supported
Windows Server 2012, Windows Server 2012 R2

Windows operating systems supported
Windows 10, Windows 7

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of storage drives installed
12

Number of storage drives supported
12

RAID levels
0, 1, 5, 6, 10, F1, JBOD

RAID support
Yes

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
BTRFS, Fat, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
4000 TB

Weight & dimensions

Depth
692 mm

Height
88 mm

Weight
14.5 kg

Width
430.5 mm

Description

Synology RackStation RS3618XS. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D, Processor model: D-1521, Processor frequency: 2.4 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 4000 TB, Installed storage drive type: HDD. Operating system installed: DiskStation Manager

Small & Medium Business NAS Rack (2U) Black
DiskStation Manager
Total installed storage capacity: 4000 TB Number of storage drives supported: 12 HDD & SSD Serial ATA, Serial ATA II, Serial ATA III
Intel® Xeon® D D-1521 2.4 GHz
8 DDR4 2133 MHz Memory slots: 4
Ethernet LAN iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 500 W
quad-core up to 2.7GHz
8GB DDR4 ECC UDIMM, up to 64GB
4 x 1GbE port, optional 10GbE NIC support
Up to 36 drives with RX1217/RX1217RP
