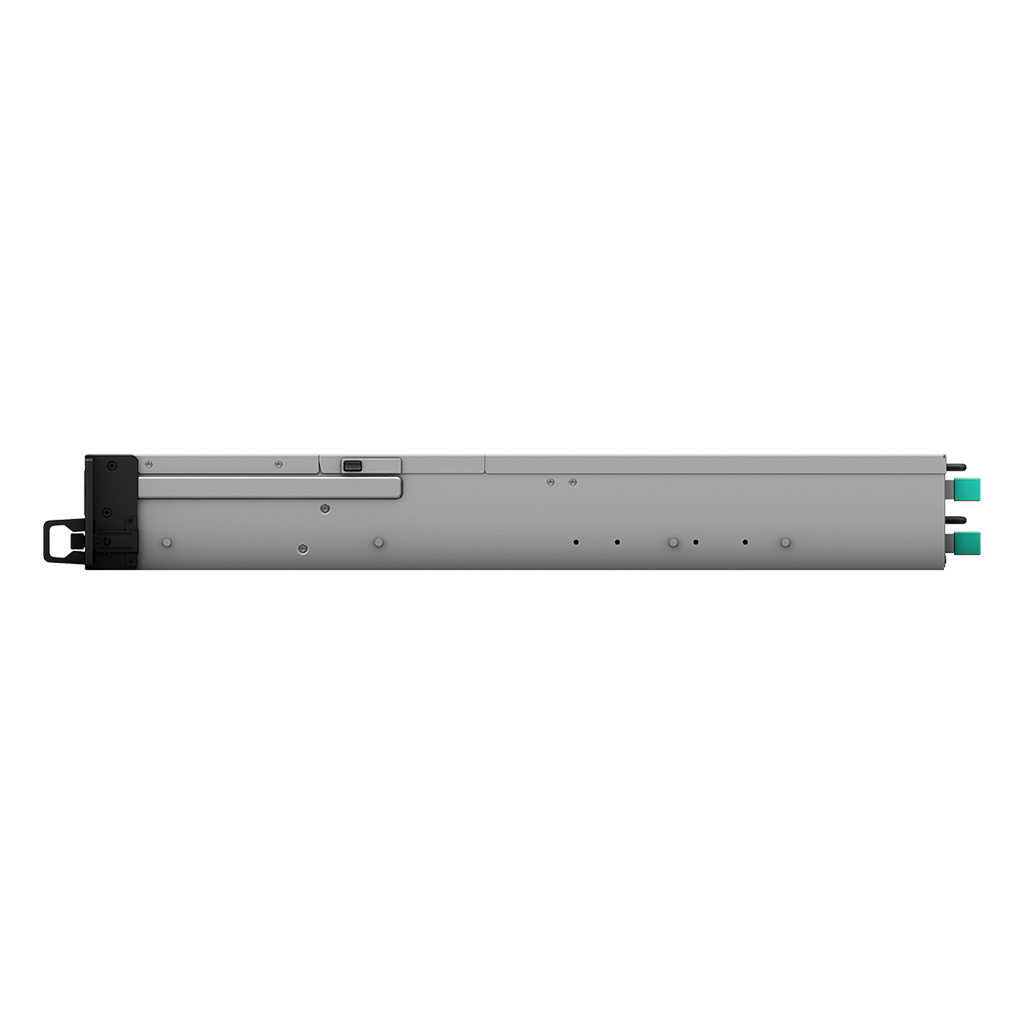

Synology RackStation RS3621RPxs NAS Rack (2U) Intel® Xeon® D D-1531 8 GB DDR4 72 TB HDD DiskStation Manager Black

Roll over image to zoom inClick to Open expanded view

Synology RackStation RS3621RPxs NAS Rack (2U) Intel® Xeon® D D-1531 8 GB DDR4 72 TB HDD DiskStation Manager Black

Name: Synology RackStation RS3621RPxs NAS Rack (2U) Intel® Xeon® D D-1531 8 GB DDR4 72 TB HDD DiskStation Manager Black
Brand: Synology
SKU: RS3621RPXS/6X12TB-HAT53

SKU: RS3621RPXS/6X12TB-HAT53

Synology RackStation RS3621RPxs, NAS, Rack (2U), Intel® Xeon® D, D-1531, 8 GB, DDR4

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
Synology

Warranty
5 Years

Drive
With drives

SKU
RS3621RPXS/6X12TB-HAT53

EAN
5050914186685

Bullet points

Design

Chassis type
Rack (2U)

Cooling type
Active

Fan diameter
8 cm

LED indicators
Yes

Number of fans
4 fan(s)

Product colour
Black

Memory

ECC
Yes

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
UDIMM

Memory Installed
8 GB

Memory slots
4

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

iSCSI support
Yes

Link aggregation
Yes

Supported network protocols
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 60 °C

Other features

Compliance certificates
RoHS

Packaging content

Cables included
AC

Power cables quantity
2

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Chrome, Firefox, Edge, Internet Explorer, Safari

Built-in FTP server
Yes

Built-in iTunes server
Yes

Device class
Small & Medium Business

Multilingual support
Yes

Noise level
50.2 dB

Number of users
4000 user(s)

On/off switch
Yes

Reset button
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Share folder
SMB/NFS/AFP/FTP

Snapshot
Yes

System log
Yes

Third-party support
Yes

Type
NAS

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

PCI Express x8 (Gen 3.x) slots
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (HDD standby)
65.94 W

Power consumption (typical)
140.01 W

Power supply location
Built-in

Power supply unit (PSU) capacity
500 W

Redundant power supply (RPS) support
Yes

Processor

Conflict-Free processor
Yes

CPU configuration (max)
1

Number of Cores
6

Processor
D-1531

Processor boost frequency
2.7 GHz

Processor cache
9 MB

Processor family
Intel® Xeon® D

Processor frequency
2.2 GHz

Processor manufacturer
Intel

Processor threads
12

Processor special features

Embedded options available
No

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Enhanced Halt State
Yes

Intel Secure Key Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Mac operating systems supported
Yes

Operating system installed
DiskStation Manager

Windows operating systems supported
Yes

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of storage drives installed
6

Number of storage drives supported
12

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, F1, JBOD

RAID support
Yes

Storage drive capacity
12 TB

Storage drive sizes supported
3.5,2.5"

Storage drives installed
Yes

Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
72 TB

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
724 mm

Height
88 mm

Width
482 mm

Description

Synology RackStation RS3621RPxs. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D, Processor model: D-1531, Processor frequency: 2.2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 72 TB, Installed storage drive type: HDD. Operating system installed: DiskStation Manager

Small & Medium Business NAS Rack (2U) Black
DiskStation Manager
Total installed storage capacity: 72 TB Number of storage drives supported: 12 HDD & SSD Serial ATA II, Serial ATA III
Intel® Xeon® D D-1531 2.2 GHz
8 DDR4 Memory slots: 4 UDIMM ECC
Ethernet LAN iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 500 W
Intel® Xeon® D-1531 6-core 2.2 GHz
4,718 MB/s seq. read 189,098 4K random read IOPS1
Dual PCIe slots for 10GbE or NVMe cache
Up to 36 drive bays with RX1217(RP)
