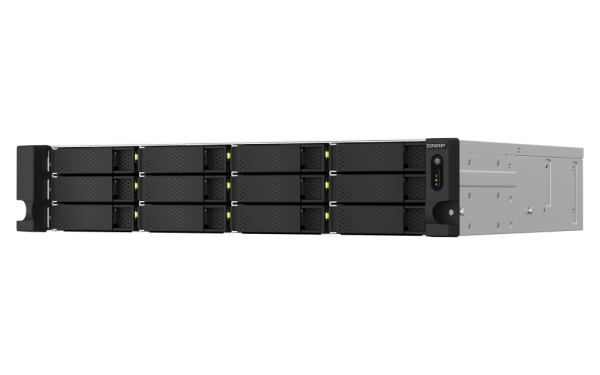

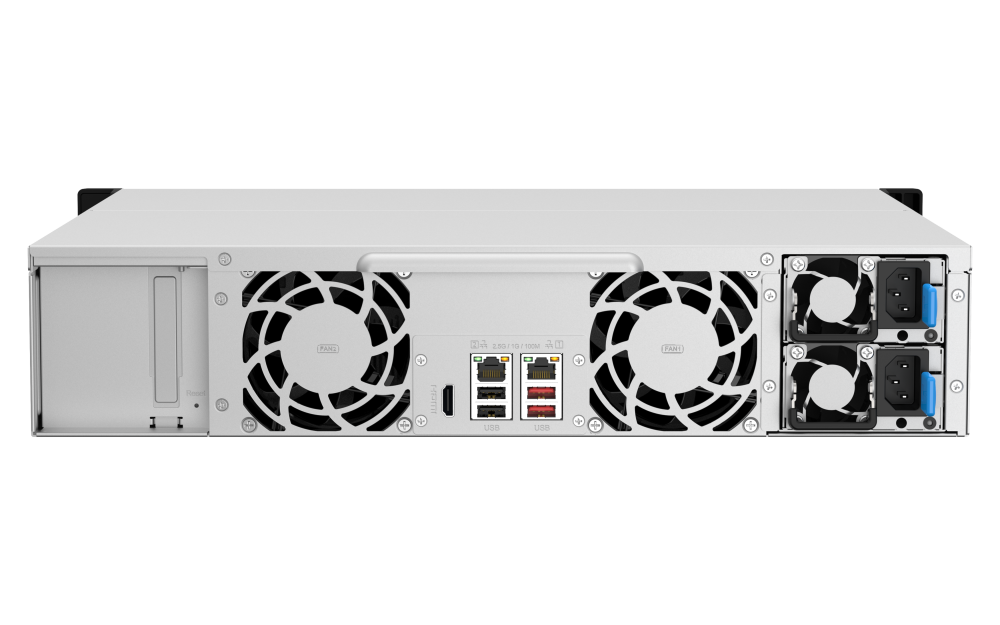

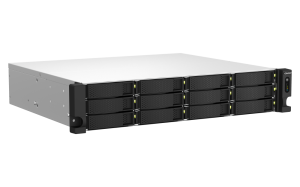

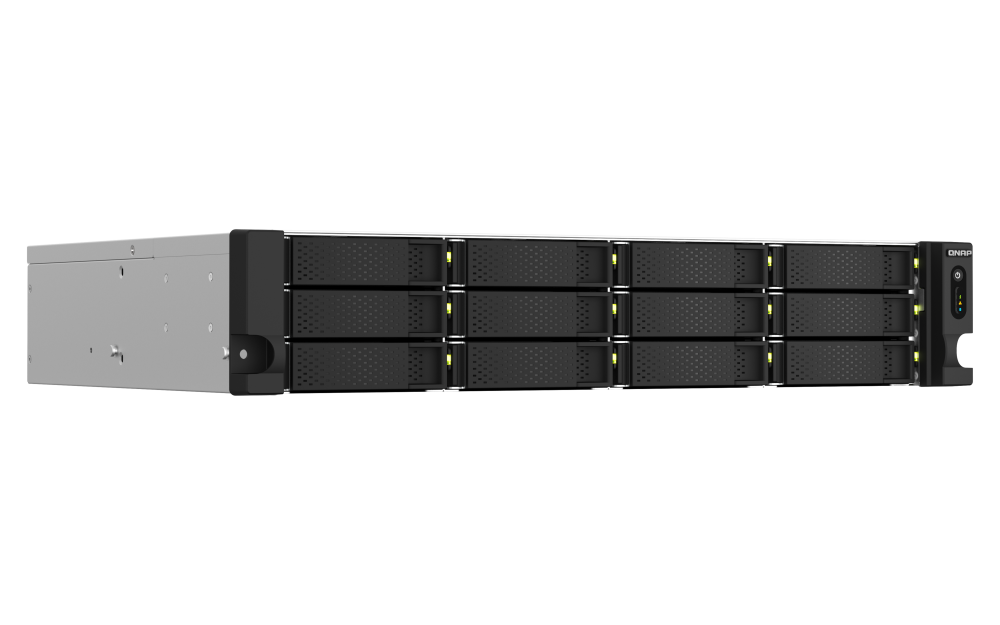

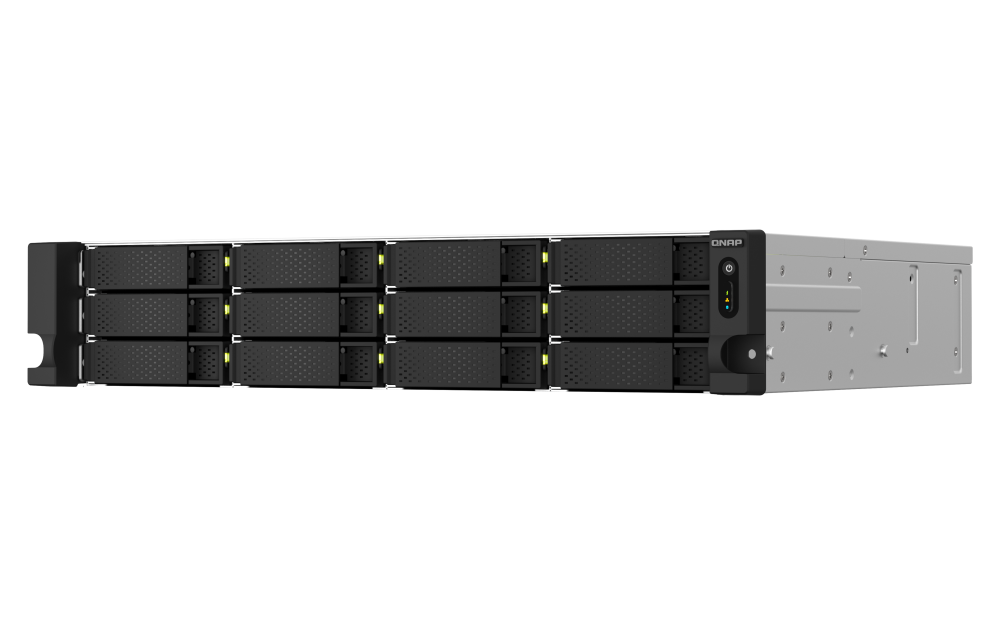

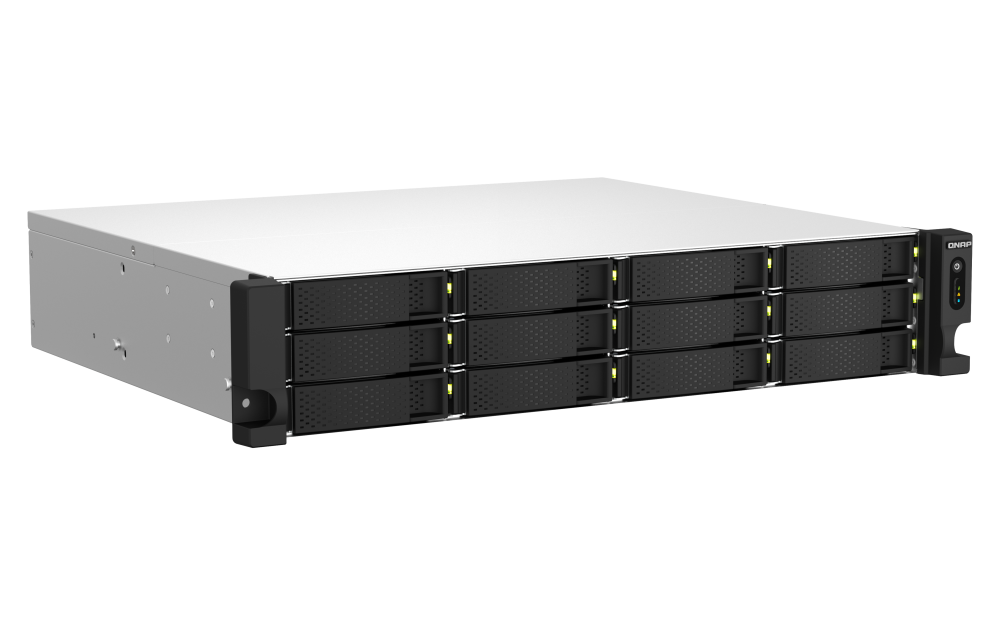

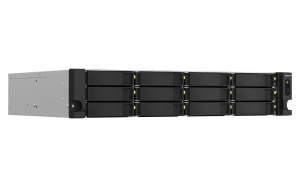

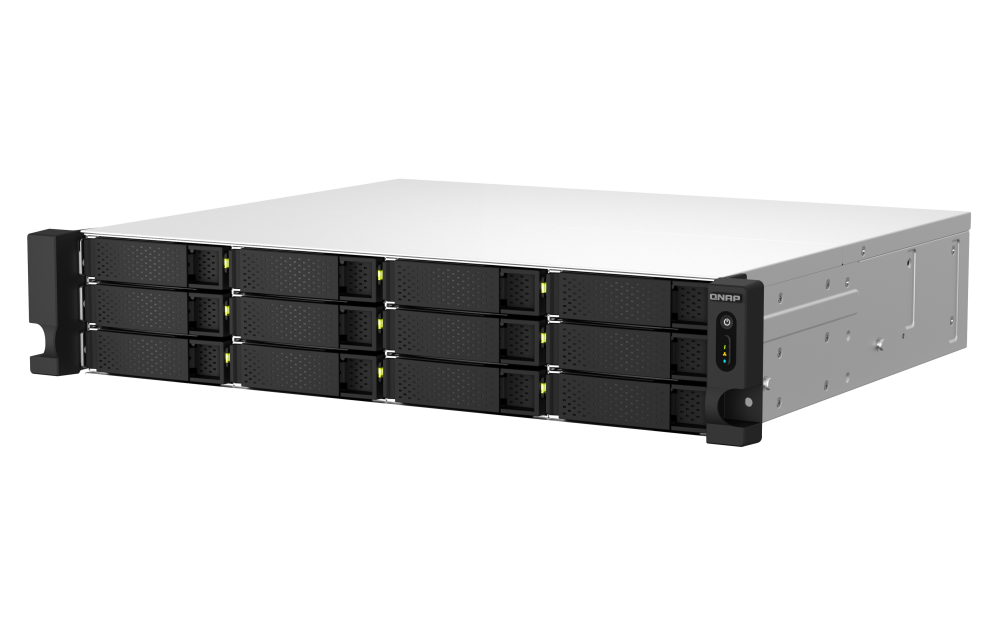

QNAP TS-1264U-RP NAS Rack (2U) Intel® Celeron® N5095 8 GB DDR4 168 TB HDD QNAP QTS Aluminium, Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-1264U-RP NAS Rack (2U) Intel® Celeron® N5095 8 GB DDR4 168 TB HDD QNAP QTS Aluminium, Black

Name: QNAP TS-1264U-RP NAS Rack (2U) Intel® Celeron® N5095 8 GB DDR4 168 TB HDD QNAP QTS Aluminium, Black
Brand: QNAP
SKU: TS-1264U-RP-8G/168TB-HC

SKU: TS-1264U-RP-8G/168TB-HC

Log In to View Pricing

ETA 10 days

QNAP TS-1264U-RP, NAS, Rack (2U), Intel® Celeron®, N5095, 8 GB, DDR4

ETA 10 days

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

SKU
TS-1264U-RP-8G/168TB-HC

EAN
5050914246549

Bullet points

Point
Host multiple containerized apps to run a wide range of applications and services

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization

Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units

Design

Chassis type
Rack (2U)

Cooling type
Active

Fan diameter
8 cm

LED indicators
HDD, LAN, Power, Status

Number of fans
2 fan(s)

Product colour
Aluminium, Black

Memory

Flash memory
4000 MB

Internal memory type
DDR4

Maximum RAM supported
8 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Warranty period
3 year(s)

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
84

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Hot spare
Yes

Management protocols
SNMP

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
HTTPS, SNMPv2, SNMPv3, SSH

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Ports & interfaces

Concurrent connections
1500

Ethernet LAN (RJ-45) ports
2

HDMI ports
1

HDMI version
1.4b

USB 2.0 ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
2

Power consumption (HDD standby)
37.854 W

Power consumption (typical)
70.913 W

Power supply location
Built-in

Power supply unit (PSU) capacity
300 W

Redundant power supply (RPS) support
Yes

Processor

L3 cache
4 MB

Number of Cores
4

On-board graphics card model
Intel® UHD Graphics

Processor
N5095

Processor boost frequency
2.9 GHz

Processor family
Intel® Celeron®

Processor frequency
2 GHz

Processor manufacturer
Intel

Processor threads
4

Software

Linux operating systems supported
Ubuntu 14.04

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina

Operating system installed
QNAP QTS

Operating system version
5.1.7

Other operating systems supported
Solaris 10

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Storage

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
1

Number of storage drives installed
12

Number of storage drives supported
12

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive capacity
14 TB

Storage drive size
3.5"

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
168 TB

Weight & dimensions

Depth
370.7 mm

Height
88.6 mm

Width
432 mm

Description

QNAP TS-1264U-RP. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Celeron®, Processor model: N5095, Processor frequency: 2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 168 TB, Installed storage drive type: HDD. Operating system installed: QNAP QTS

Small & Medium Business NAS Rack (2U) Aluminium, Black
QNAP QTS 5.1.7
Total installed storage capacity: 168 TB Number of storage drives supported: 12 HDD & SSD Serial ATA II, Serial ATA III
Intel® Celeron® N5095 2 GHz Intel® UHD Graphics
8 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 300 W
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-1264U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card
Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data
Host multiple containerized apps to run a wide range of applications and services
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization
Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units

pdf

Datasheets (Download)

Product manual (Download)
