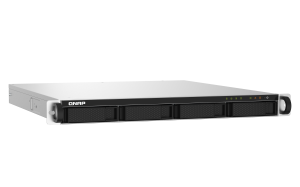

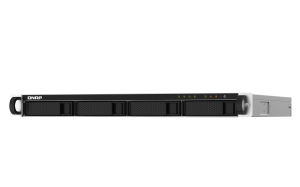

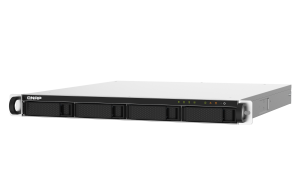

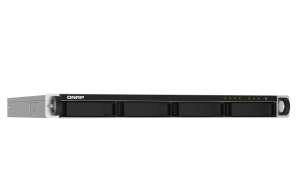

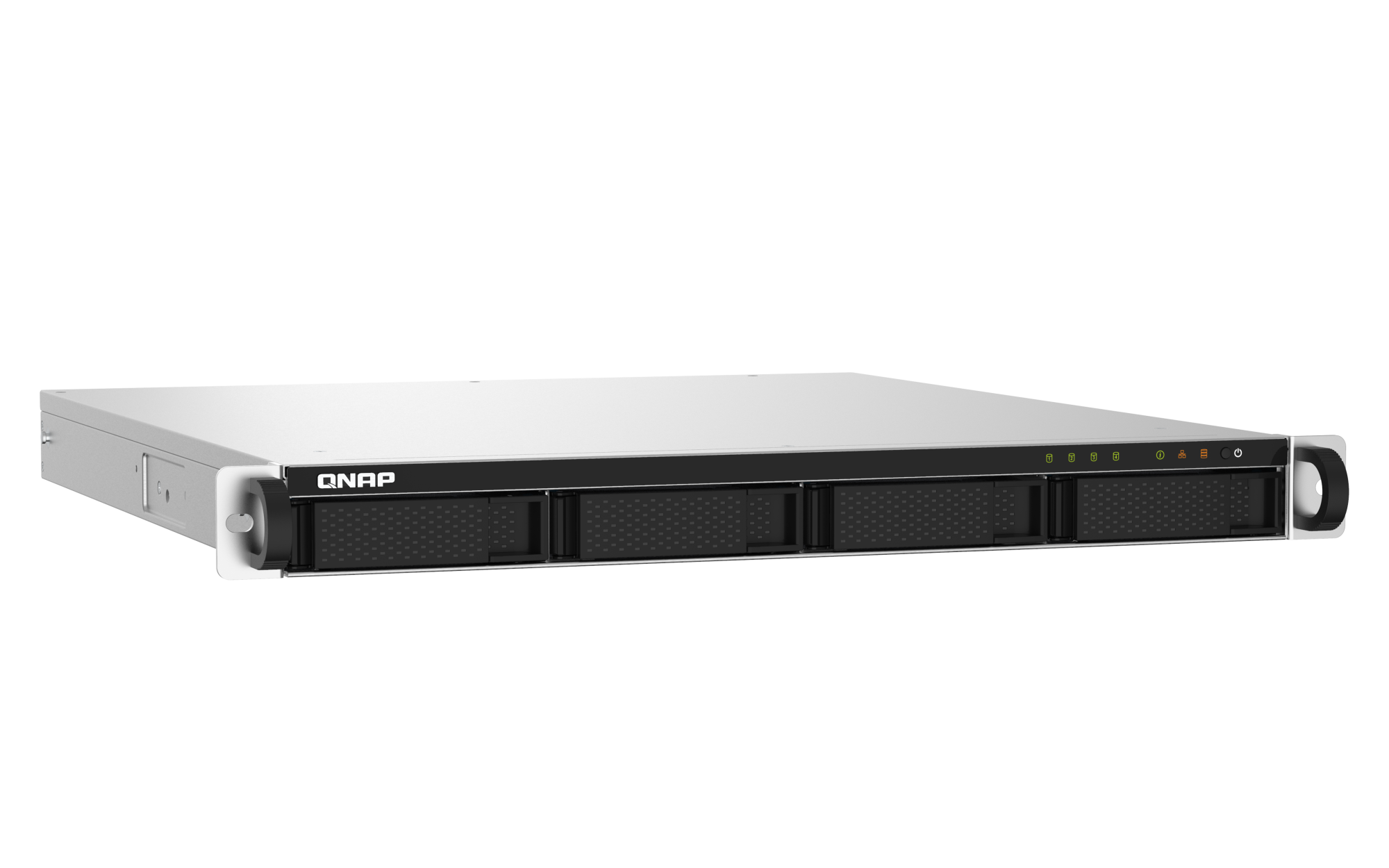

QNAP TS-432PXU-RP-2G NAS Rack (1U) Annapurna Labs Alpine AL-324 2 GB DDR4 40 TB QNAP Turbo System Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-432PXU-RP-2G NAS Rack (1U) Annapurna Labs Alpine AL-324 2 GB DDR4 40 TB QNAP Turbo System Black

Name: QNAP TS-432PXU-RP-2G NAS Rack (1U) Annapurna Labs Alpine AL-324 2 GB DDR4 40 TB QNAP Turbo System Black
Brand: QNAP
SKU: TS-432PXU-RP-2G/40TB-EXOS

SKU: TS-432PXU-RP-2G/40TB-EXOS

Non-Cancellable, Non-Returnable

Log In to View Pricing

ETA 10 days

QNAP TS-432PXU-RP-2G, NAS, Rack (1U), Annapurna Labs, Alpine AL-324, 2 GB, DDR4

ETA 10 days

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

Drive
With drives

SKU
TS-432PXU-RP-2G/40TB-EXOS

EAN
5050914136918

Bullet points

Design

Chassis type
Rack (1U)

Cooling type
Active

Fan diameter
4 cm

LED indicators
HDD, LAN, Status

Number of fans
2 fan(s)

Product colour
Black

Memory

Flash memory
512 MB

Internal memory type
DDR4

Maximum RAM supported
16 GB

Memory form factor
UDIMM

Memory Installed
2 GB

Memory slots
1

Network

DHCP client
Yes

DHCP server
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
100,1000,2500,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Load balancing system
Yes

Supported network protocols
PPTP, L2TP/IPSec, OpenVPN, QBelt

Wake-on-LAN ready
Yes

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
28

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Hot spare
Yes

Multilingual support
Yes

Noise level
9 dB

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS

Share folder
CIFS/SMB

Snapshot
Yes

System log
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

USB copy function
Yes

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Fiber optic connector
SFP+

Fiber ports quantity
2

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
2

Power consumption (typical)
53.343 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Number of Cores
4

Processor
Alpine AL-324

Processor family
Annapurna Labs

Processor frequency
1.7 GHz

Processor manufacturer
Annapurna Labs

Software

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina

Operating system installed
QNAP Turbo System

Operating system version
4.4.3

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Windows operating systems supported
Windows 10, Windows 7, Windows 8

Storage

Disk roaming
Yes

Hot-swap drive bays
Yes

Number of storage drives installed
4

Number of storage drives supported
4

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
40 TB

Weight & dimensions

Depth
499 mm

Height
44 mm

Weight
8.12 kg

Width
439 mm

Description

QNAP TS-432PXU-RP-2G. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Annapurna Labs, Processor model: Alpine AL-324, Processor frequency: 1.7 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Total installed storage capacity: 40 TB. Operating system installed: QNAP Turbo System

Small & Medium Business NAS Rack (1U) Black
QNAP Turbo System 4.4.3
Total installed storage capacity: 40 TB Number of storage drives supported: 4 HDD & SSD Serial ATA II, Serial ATA III
Annapurna Labs Alpine AL-324 1.7 GHz
2 DDR4 Memory slots: 1 UDIMM
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 250 W
Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing
HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning
Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ G Suite and Microsoft 365®
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
Expand the application potential of the TS-432PXU-RP by installing a compatible PCIe card
Increase the storage capacity of the TS-432PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD
