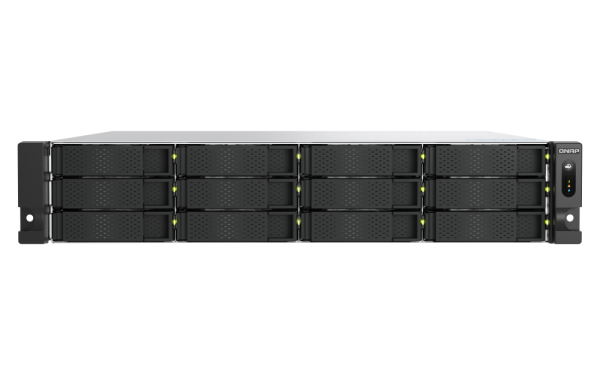

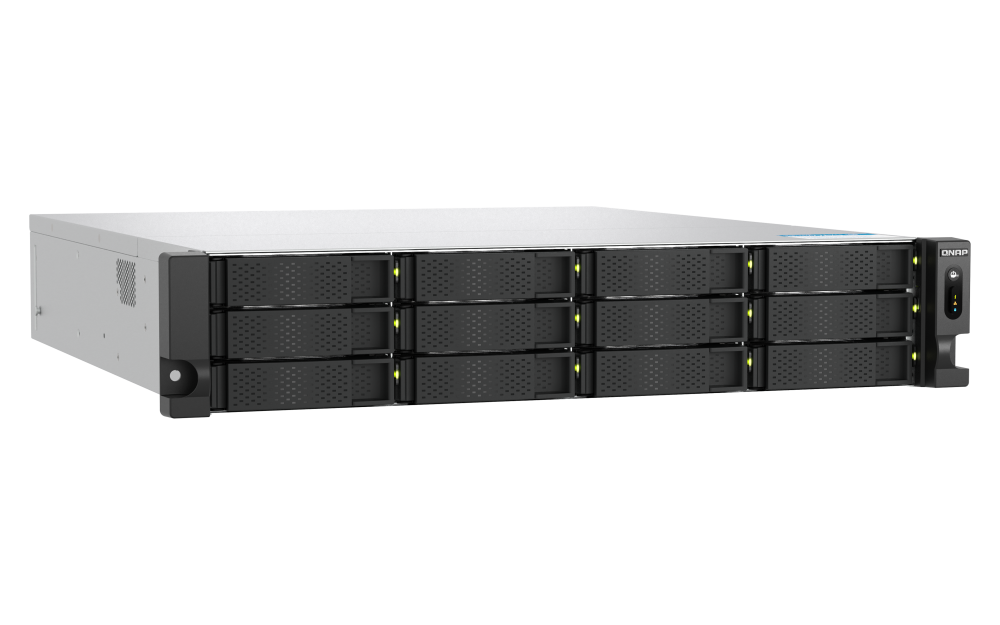

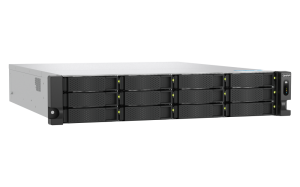

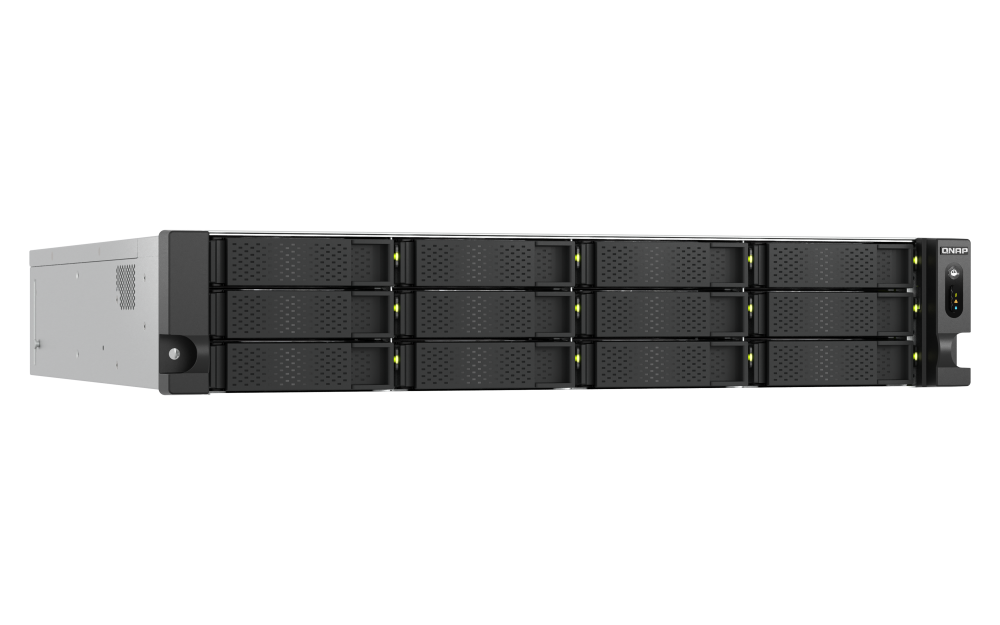

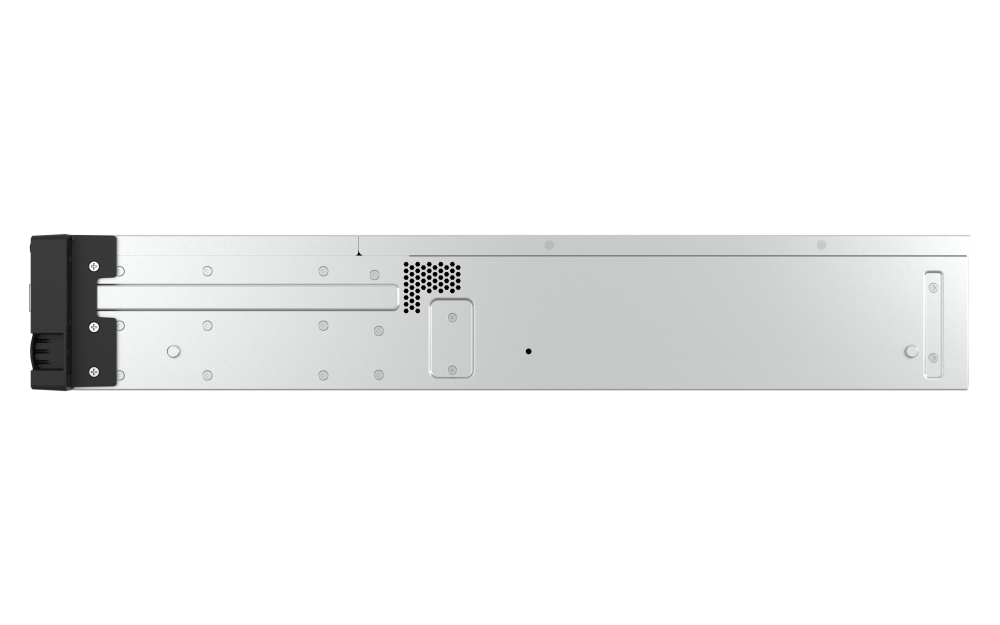

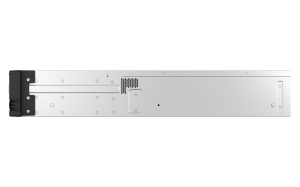

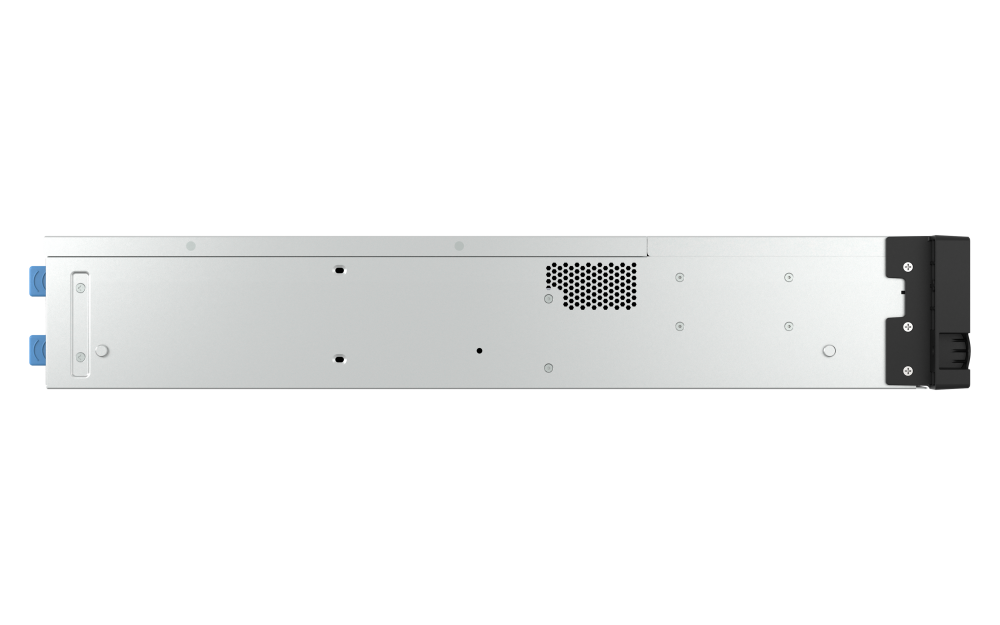

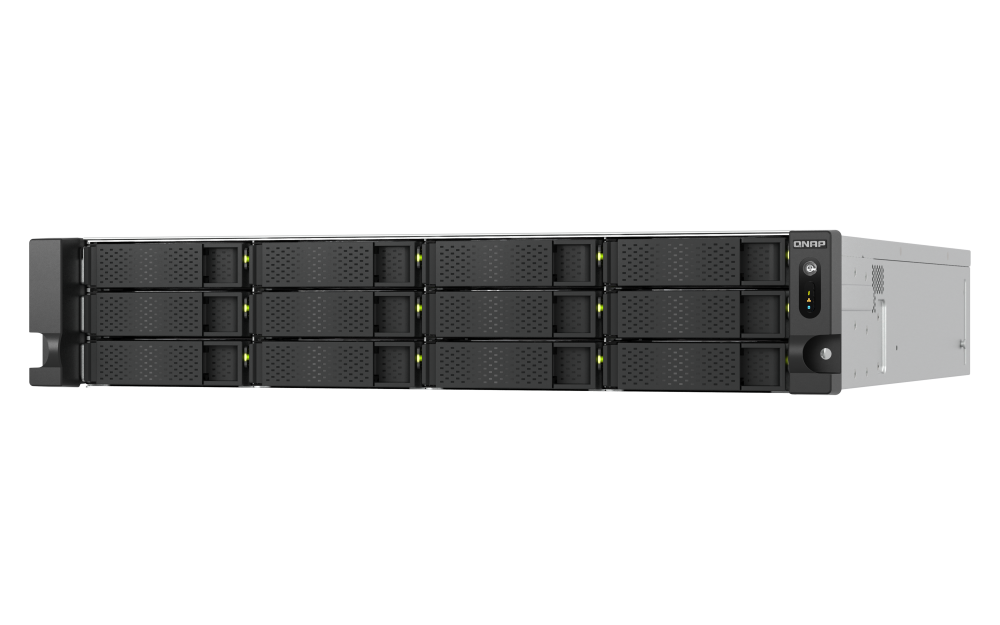

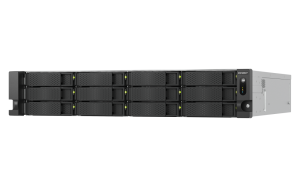

QNAP TS-h1277AXU-RP NAS Rack (2U) AMD Ryzen™ 5 16 GB DDR5 168 TB HDD QNAP QTS Aluminium, Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-h1277AXU-RP NAS Rack (2U) AMD Ryzen™ 5 16 GB DDR5 168 TB HDD QNAP QTS Aluminium, Black

Name: QNAP TS-h1277AXU-RP NAS Rack (2U) AMD Ryzen™ 5 16 GB DDR5 168 TB HDD QNAP QTS Aluminium, Black
Brand: QNAP
SKU: TS-H1277AXU-RP-R5-16G/168TB-HC

SKU: TS-H1277AXU-RP-R5-16G/168TB-HC

Log In to View Pricing

ETA 10 days

QNAP TS-h1277AXU-RP, NAS, Rack (2U), AMD Ryzen™ 5, 16 GB, DDR5, 168 TB

ETA 10 days

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

SKU
TS-H1277AXU-RP-R5-16G/168TB-HC

EAN
5050914242541

Bullet points

Design

Chassis type
Rack (2U)

Cooling type
Active

Fan diameter
6 cm

LED indicators
HDD, LAN, Power, SSD, Status

Number of fans
3 fan(s)

Product colour
Aluminium, Black

Memory

ECC
Yes

Flash memory
5000 MB

Internal memory type
DDR5

Maximum RAM supported
192 GB

Memory form factor
UDIMM

Memory Installed
16 GB

Memory slots
4

Network

Copper ethernet cabling technology
10GBASE-T

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000,2500,5000,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Supported network protocols
IPv4, IPv6

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Warranty period
5 year(s)

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
84

Power cables quantity
2

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Built-in FTP server
Yes

Buzzer
Yes

Device class
Large Enterprise Business

Disk scan
Yes

Hot spare
Yes

Management protocols
SNMP v2/v3

Multilingual support
Yes

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, TLS

Share folder
CIFS/SMB

Snapshot
Yes

System log
Yes

Type
NAS

Web-based management
Yes

Ports & interfaces

Concurrent connections
5000

Ethernet LAN (RJ-45) ports
4

PCI Express x8 (Gen 4.x) slots
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
2

Power consumption (HDD standby)
82.247 W

Power consumption (typical)
367.65 W

Power supply location
Built-in

Power supply unit (PSU) capacity
550 W

Redundant power supply (RPS) support
Yes

Processor

Number of Cores
6

On-board graphics card model
AMD Radeon Graphics

Processor boost frequency
5.1 GHz

Processor family
AMD Ryzen™ 5

Processor manufacturer
AMD

Processor threads
12

Software

Linux operating systems supported
CentOS 7.0, Ubuntu 14.04

Mac operating systems supported
Yes

Operating system installed
QNAP QTS

Operating system version
QTS 5.1.3

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Windows operating systems supported
Windows 10, Windows 11, Windows 7, Windows 8

Storage

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
12

Number of storage drives supported
12

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive capacity
14 TB

Storage drive interface
Serial ATA II, Serial ATA III

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
168 TB

Weight & dimensions

Depth
511.2 mm

Height
88.6 mm

Width
432 mm

Description

QNAP TS-h1277AXU-RP. Type: NAS. Chassis type: Rack (2U). Device class: Large Enterprise Business. Processor family: AMD Ryzen™ 5. Internal memory: 16 GB, Internal memory type: DDR5. Total installed storage capacity: 168 TB, Installed storage drive type: HDD. Operating system installed: QNAP QTS

Large Enterprise Business NAS Rack (2U) Aluminium, Black
QNAP QTS QTS 5.1.3
Total installed storage capacity: 168 TB Number of storage drives supported: 12 HDD & SSD Serial ATA II, Serial ATA III
AMD Ryzen™ 5 AMD Radeon Graphics
16 DDR5 Memory slots: 4 UDIMM ECC
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 550 W
Supports up to 128GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported)
Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment
Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer
Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cardsConnect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 204 disks
The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030
