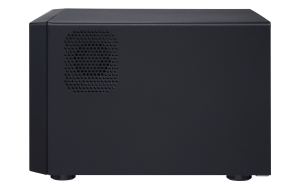

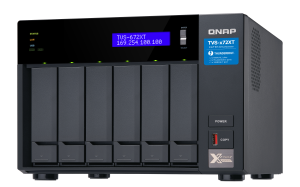

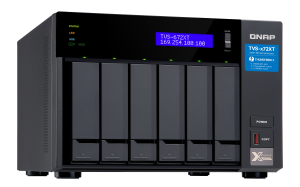

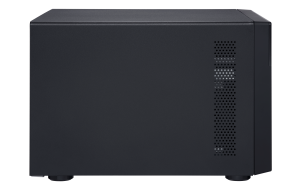

QNAP TVS-672XT NAS Tower Intel® Core™ i3 i3-8100T 8 GB DDR4 36 TB HDD QNAP Turbo System Black

Roll over image to zoom inClick to Open expanded view

QNAP TVS-672XT NAS Tower Intel® Core™ i3 i3-8100T 8 GB DDR4 36 TB HDD QNAP Turbo System Black

Name: QNAP TVS-672XT NAS Tower Intel® Core™ i3 i3-8100T 8 GB DDR4 36 TB HDD QNAP Turbo System Black
Brand: QNAP
SKU: TVS-672XT-I3-8G/36TB-IW

SKU: TVS-672XT-I3-8G/36TB-IW

QNAP TVS-672XT, NAS, Tower, Intel® Core™ i3, i3-8100T, 8 GB, DDR4

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

Drive
With drives

SKU
TVS-672XT-I3-8G/36TB-IW

EAN
5050914113193

Design

Built-in display
Yes

Built-in speaker(s)
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Fan diameter
9.2 cm

Fan diameter 2
6 cm

LED indicators
HDD, LAN, Status, USB

Number of built-in speakers
1

Number of fans
4 fan(s)

Product colour
Black

Graphics

Maximum on-board graphics card memory
64 GB

Number of displays supported (on-board graphics)
3

On-board graphics card base frequency
350 MHz

On-board graphics card DirectX version
12.0

On-board graphics card dynamic frequency (max)
1100 MHz

On-board graphics card ID
0x3E91

On-board graphics card OpenGL version
4.5

Logistics data

Harmonized System (HS) code
84714100

Memory

Flash memory
4000 MB

Internal memory type
DDR4

Maximum RAM supported
32 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
10,100,1000,1200,2500,5000,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Load balancing system
Yes

Supported network protocols
TCP/IP, IPv4, IPv6

Wake-on-LAN ready
Yes

Wi-Fi
No

WLAN adapter supported
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Other features

Digital Living Network Alliance (DLNA) certified
Yes

Processor ARK ID
129944

Packaging content

Cables included
AC, LAN (RJ-45)

Quick installation guide
Yes

Performance

Access Control List (ACL)
Yes

Backup features
iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox

Built-in FTP server
Yes

Built-in iTunes server
Yes

Buzzer
Yes

Device class
Home & Home Office

Hot spare
Yes

Management protocols
SNMP 2/3

Multilingual support
Yes

Noise level
23.8 dB

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH

Share folder
CIFS/SMB

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

Web-based management
Yes

Ports & interfaces

3.5 mm (1/8-inch) out
Yes

Ethernet LAN (RJ-45) ports
3

HDMI ports
1

HDMI version
2.0

Microphone in
Yes

PCI Express x4 (Gen 3.x) slots
1

Thunderbolt 3 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Power supply unit (PSU) capacity
250 W

Processor

Bus type
DMI3

Configurable TDP-down frequency
2.4 GHz

CPU configuration (max)
1

Maximum internal memory supported by processor
64 GB

Memory bandwidth supported by processor (max)
37.5 GB/s

Number of Cores
4

On-board graphics card model
Intel® UHD Graphics 630

PCI Express configurations
1x16, 1x8+2x4, 2x8

PCI Express slots version
3.0

Processor
i3-8100T

Processor cache
6 MB

Processor cache type
Smart Cache

Processor code
SR3Y8

Processor codename
Coffee Lake

Processor family
Intel® Core™ i3

Processor frequency
3.1 GHz

Processor generation
8th gen Intel® Core™ i3

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
37.5 x 37.5 mm

Processor socket
LGA 1151 (Socket H4)

Processor threads
4

Scalability
1S

Stepping
B0

System bus rate
8 GT/s

Thermal Design Power (TDP)
35 W

Tjunction
82 °C

Processor special features

Embedded options available
Yes

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Clear Video Technology
Yes

Intel Enhanced Halt State
Yes

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Stable Image Platform Program (SIPP)
No

Intel Stable Image Platform Program (SIPP) version
0.00

Intel Trusted Execution Technology
No

Intel TSX-NI
No

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Clear Video HD Technology (Intel® CVT HD)
Yes

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
No

Intel® Identity Protection Technology (Intel® IPT)
Yes

Intel® InTru™ 3D Technology
Yes

Intel® OS Guard
Yes

Intel® Quick Sync Video Technology
Yes

Intel® Secure Key
Yes

Intel® Smart Cache
Yes

Intel® Turbo Boost Technology
No

Maximum number of PCI Express lanes
16

Memory types supported by processor
DDR4-SDRAM

Thermal Monitoring Technologies
Yes

Thermal solution specification
PCG 2015A

Software

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operating system installed
QNAP Turbo System

Operating system version
4.4.0

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Storage

Auto-rebuild
Yes

Bad block scan
Yes

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives supported
6

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, JBOD

RAID support
Yes

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
M.2, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
36 TB

Weight & dimensions

Depth
279.6 mm

Height
188.2 mm

Width
264.3 mm

Description

QNAP TVS-672XT. Type: NAS. Chassis type: Tower. Device class: Home & Home Office. Processor family: Intel® Core™ i3, Processor model: i3-8100T, Processor frequency: 3.1 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 36 TB, Installed storage drive type: HDD. Operating system installed: QNAP Turbo System

Home & Home Office NAS Tower Black
QNAP Turbo System 4.4.0
Total installed storage capacity: 36 TB Number of storage drives supported: 6 HDD & SSD M.2, Serial ATA III
Intel® Core™ i3 i3-8100T 3.1 GHz Intel® UHD Graphics 630
8 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: iSCSI LUN 250 W
